Medical External Power Supply UE05LCP-SPA
Home Wall Plug Medical External Power Adapter UE05LCP-SPA Interchangeable Class II AC Plug 5V Wall Plug Hospital Grade External Power Adapter 5 W 90 ~
240 W
80 ~ 264 Vac input (wide)
-30 to +70°C temperature range
No-load power consumption < 0.15W
2 MOPP input to output isolation
4 types of AC inlet
GaN technology
Meets home medical standards

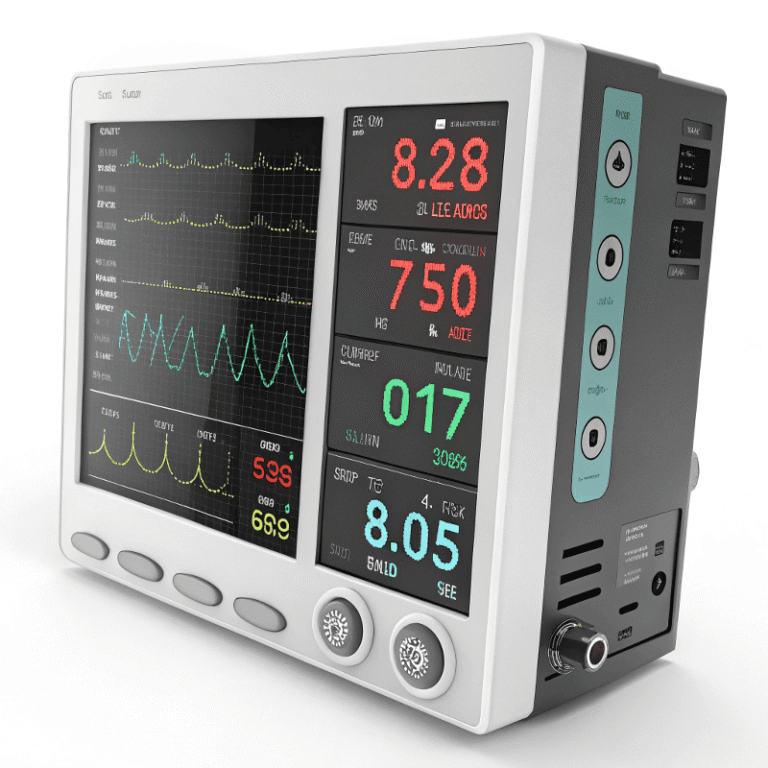

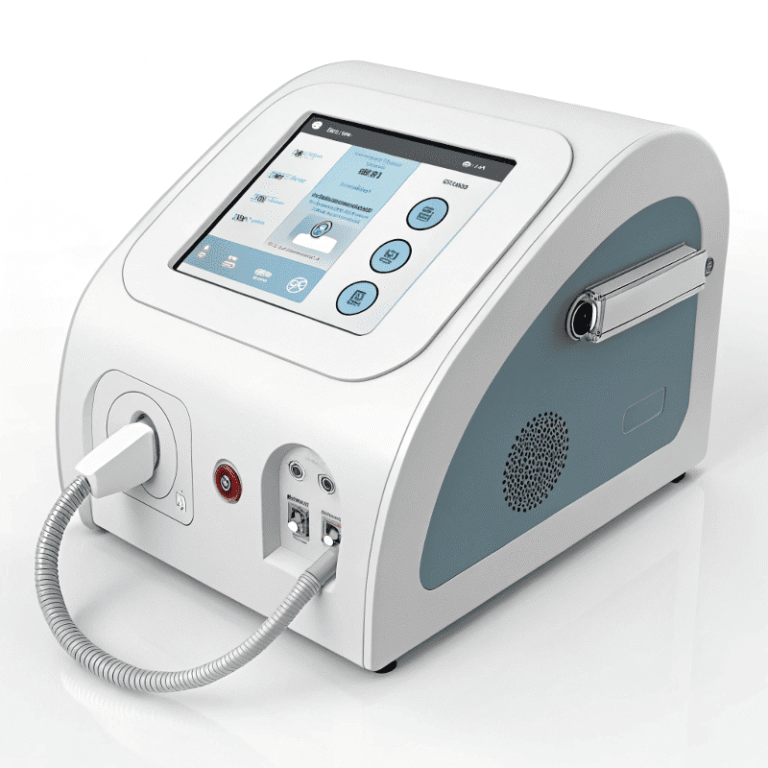

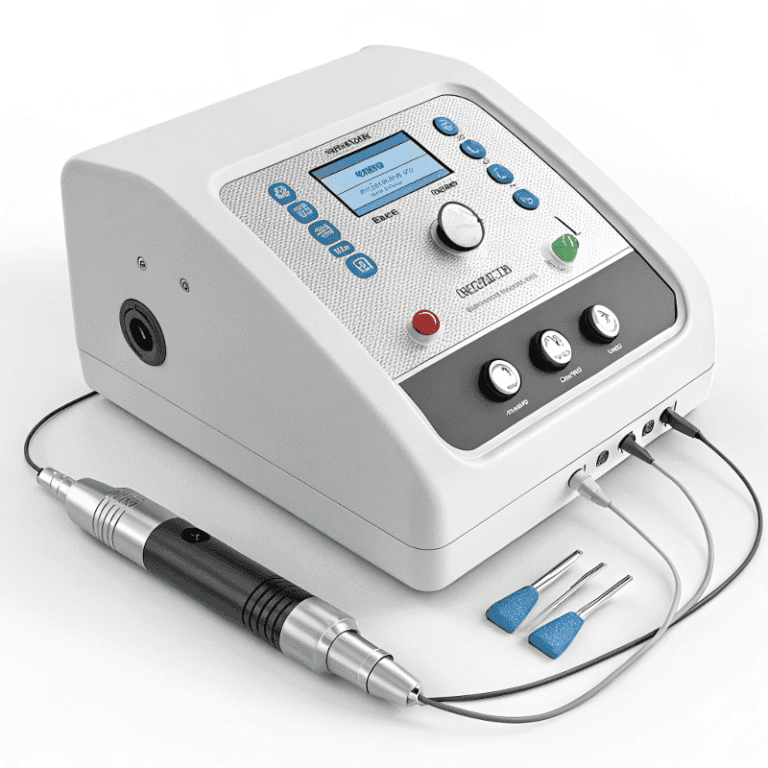

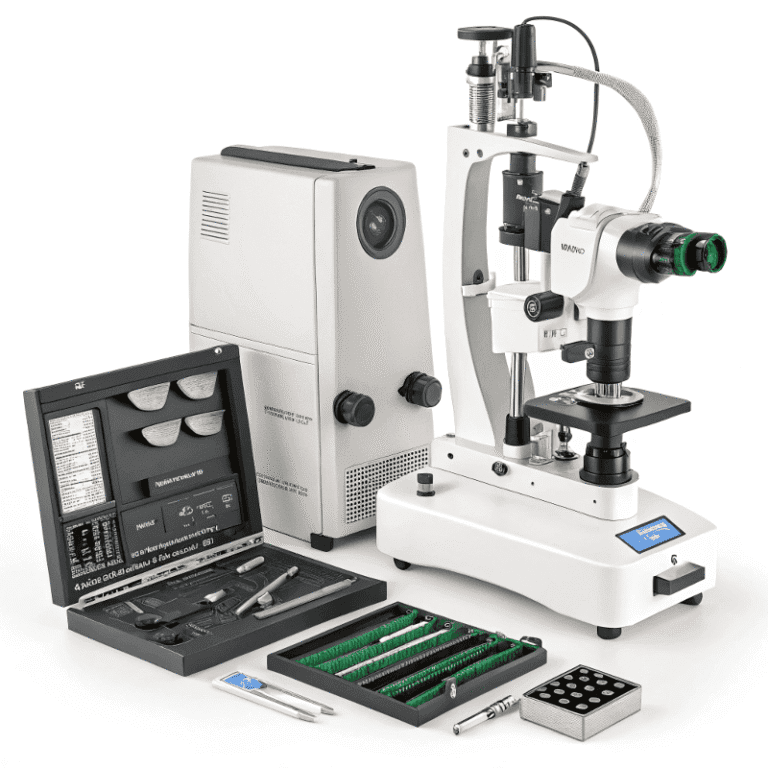

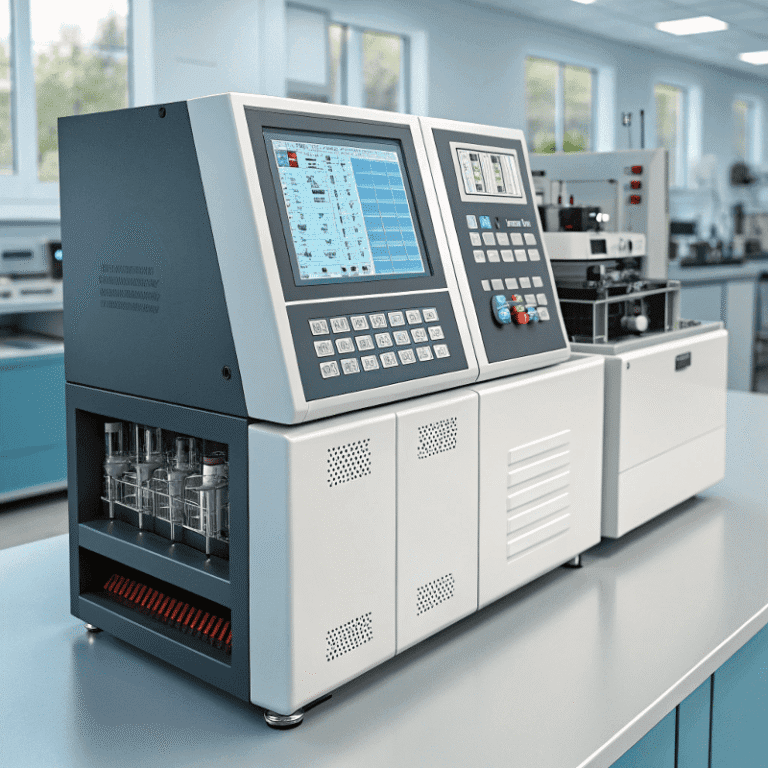

Application place: multi-parameter vital signs monitor, ophthalmic imaging equipment, mobile X-ray, laboratory automatic analyzer, RF therapy device, IPL photon beauty equipment

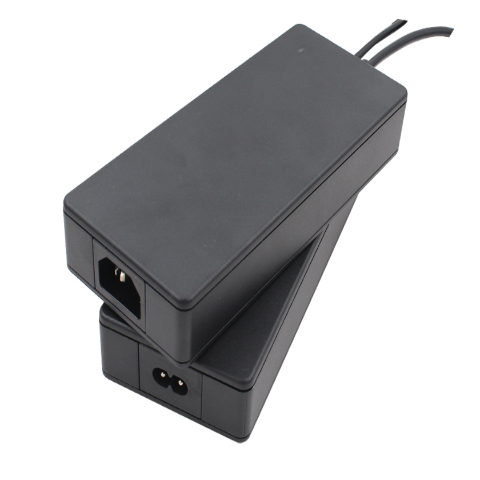

The UES240DZ-XXXYYYSPA is an 11V-54V output, up to 240W 12V power supply homecare healthcare medical desktop switching external power supply 24V with 4 AC inlets, class II power supply, certified to the medical 60601-1, edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements, GaN technology and ISO 13485 Compliant as well as it is Ac to Dc converter. It suits a multi-parameter vital signs monitor, ophthalmic imaging equipment, mobile X-ray, laboratory automatic analyzer, RF therapy device, IPL photon beauty equipment.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE,CB,CCC,TUV-Mark,UL
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES240DZ-XXXYYYSPA | 216.0 | 11.0-12.0 | 80-264 | 0.01-18.00 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 215.0 | 12.1-13.0 | 80-264 | 0.01-16.60 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 215.0 | 13.1-14.0 | 80-264 | 0.01-15.40 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 216.0 | 14.1-15.0 | 80-264 | 0.01-14.40 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.4 | 18.0-19.0 | 80-264 | 0.01-12.60 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 19.1-20.0 | 80-264 | 0.01-12.00 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 20.1-21.0 | 80-264 | 0.01-11.43 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.8 | 21.1-22.0 | 80-264 | 0.01-10.90 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.2 | 22.1-23.0 | 80-264 | 0.01-10.40 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 23.1-24.0 | 80-264 | 0.01-10.00 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 24.1-25.0 | 80-264 | 0.01-9.60 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 25.1-26.0 | 80-264 | 0.01-9.23 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 36.0-37.0 | 80-264 | 0.01-6.48 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.8 | 37.1-38.0 | 80-264 | 0.01-6.31 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.8 | 38.1-39.0 | 80-264 | 0.01-6.15 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 39.1-40.0 | 80-264 | 0.01-6.00 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 47.1-48.0 | 80-264 | 0.01-5.00 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 236.6 | 48.1-49.0 | 80-264 | 0.01-4.89 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 49.1-50.0 | 80-264 | 0.01-4.80 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.7 | 50.1-51.0 | 80-264 | 0.01-4.70 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 239.2 | 51.1-52.0 | 80-264 | 0.01-4.60 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 52.1-53.0 | 80-264 | 0.01-4.54 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
| UES240DZ-XXXYYYSPA | 240.0 | 53.1-54.0 | 80-264 | 0.01-4.44 | -30 ~ +70 | CE,CB,CCC,TUV-Mark,UL |
It’s ideal for high-power devices like ventilators, patient monitors, portable ultrasound machines, and medical imaging systems.
It allows flexibility to match various device voltage needs, from low-voltage logic boards to high-voltage actuator systems.
Yes, it is designed for critical medical devices that require constant and stable power.
Medical-grade versions comply with IEC/EN/UL 60601-1 standards, featuring 2xMOPP insulation and low leakage current.
Yes, the output can be factory-set to a fixed voltage tailored to your device's requirements.
Standard options include 4-pin DIN, DC jack, or custom locking connectors depending on the equipment.
Yes, it includes OVP (Over Voltage), OCP (Over Current), SCP (Short Circuit), and OTP (Over Temperature) protections.
Models are available with fanless design or low-noise fans to suit clinical or patient environments.
Yes, it complies with DOE Level VI or EU CoC Tier 2 efficiency standards.
Yes, it is compact and safe for use in home medical devices such as CPAPs or oxygen concentrators.
