Quankang manufactures certified ITE power supplies from 5W to 1260W — desktop, wall-mount and open frame, standard or fully customized ODM. Multi-region certified and trusted by device manufacturers since 1989.
Quankang produces desktop type, wall mounts, and open-frame ITE power supplies. All series meet IEC 62368-1 certification, wattage range covers 5W to 1260W, and support 100-240VAC global universal input voltage.
30W–1260W, output 12V–56V. Suitable for network switches, NVRs, and digital signage controllers. DC cable, plug type, and connector are customizable.
5W–65W, output 5V–24V. Plugs directly into an AC socket, no external cable. Interchangeable plugs for UK / EU / US / AU markets.

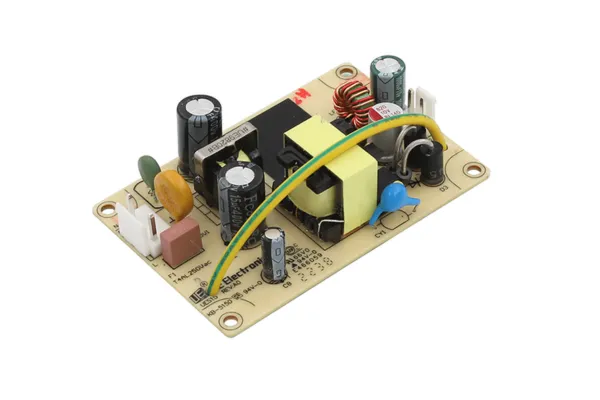

5W–500W, PCB mount or chassis mount. No housing, installs directly inside the equipment. Standard sizes 2″×3″ and 3″×5″, ODM customizable.
Whatever form factor, output voltage, or target market certification your equipment requires, Quankang offers standard ITE power supply models with ODM sample lead times as fast as 15 days.
| Desktop | Wall Plug | Open Frame | |
|---|---|---|---|
| Mounting Method | Standalone enclosure; placed outside the device | Plugs directly into AC outlet; no external cables | No enclosure; installed inside the device chassis |
| Power Range | 24W–300W | 12W–50W | 5W–460W |
| Output Voltage | 12V–56V | 12V–56V | 5V–56V |
| Output Interface | DC Jack / C6 / C14 / C18 | Fixed DC cable / Interchangeable plugs | Terminal blocks / PCB pins |
| Cooling Method | Natural convection; supports 24/7 continuous operation | Natural convection | Relies on device chassis for heat dissipation |
| Certifications | CE / UL / CB / TUV / RCM / BIS / PSE | CE / UL / CB / CCC / RCM / PSE / BSMI / BIS | CE / CB / cULus / UKCA / CQC |
| Typical Applications | Network switches, NVRs, industrial test equipment, digital signage | Routers, IoT gateways, security cameras, LED lighting | Embedded systems, industrial gateways, CCTV main units |
For equipment that requires an independent external power supply with no strict space constraints, choose the ITE desktop power adapter.
For equipment that requires a compact footprint, space-constrained installation, and wattage below 50W, choose the ITE wall mount power adapter.
For equipment that requires high integration within the device chassis and higher wattage output, choose the ITE open frame power supply.
| Output Voltage | 5W–30W | 30W–100W | 100W–300W | 300W+ |
|---|---|---|---|---|
| 5V | Open Frame ✓ | — | — | — |
| 12V | Wall Plug / Open Frame ✓ | Desktop / Wall Plug / Open Frame ✓ | Desktop / Open Frame ✓ | — |
| 19V–24V | Wall Plug ✓ | Desktop / Wall Plug / Open Frame ✓ | Desktop / Open Frame ✓ | Desktop ✓ |
| 29V–36V | Wall Plug ✓ | Desktop / Open Frame ✓ | Open Frame ✓ | — |
| 48V–56V | — | Desktop / Open Frame ✓ | Desktop / Open Frame ✓ | Desktop ✓ |
Can’t find the voltage or wattage combination you need? All Quankang ITE power supplies support ODM customization of output voltage, current, and wattage.
| Model | Wattage | Input | Output | Form Factor | Certifications | Model Type | Sample Lead Time |
|---|---|---|---|---|---|---|---|
| UES24LZ-SPA | 24W | 90–264VAC | 12V | Wall Plug | CE / cULus / CB / CCC | Standard Model | 15 days |
| UES36LCP3-SPA | 36W | 90–264VAC | 24V | Wall Plug | CE / CB / NRTL / RCM / PSE / BIS | Standard Model | 15 days |
| UES65A1-SPA | 65W | 90–264VAC | 24V | Desktop | CE / cULus / CB / RCM / PSE | Standard Model | 15 days |
| UES130DZ-SPA | 130W | 90–264VAC | 54V | Desktop | CB / CCC / TUV / RCM / CE / PSE | Standard Model | 15 days |
| UES300-SPAZ | 300W | 90–264VAC | 19V–56V | Desktop | CE | Standard Model | 15 days |
| UES15-SPA3-OP | 15W | 90–264VAC | 5V | Open Frame | CE | Standard Model | 15 days |
| UES120-SPA-OP | 120W | 90–264VAC | 24V | Open Frame | CE / CB / cULus | Standard Model | 15 days |
| UES460-SPA-OP | 460W | 90–264VAC | 56V | Open Frame | CE | Standard Model | 15 days |
All models listed are standard configurations available for ODM customization — output voltage, current, connector, cable, and certification can all be modified. For specification changes based on a standard model, sample lead time is within 15 days.
From specification to large-scale production, Quankang is your trusted engineering partner. All customer specifications, schematics, and design files are protected under NDA upon request, ensuring your IP remains fully confidential throughout development and production. As an ITE switching power supply manufacturer with 36 years of deep industry experience, our customized ITE power supply services help clients solve core technical bottlenecks in electrical matching, structural layout, and global certification.
Equipment designs vary widely, so a standard model often cannot precisely satisfy your electrical and structural requirements. Quankang provides fully specified customized services, eliminating compatibility issues between the power supply and the host device at the source.
✅For non-standard output voltages: We support precise custom ITE power supply development, including output voltage fine-tuning and custom overcurrent protection thresholds, ensuring sensitive components receive stable power and avoiding system instability caused by voltage deviations.

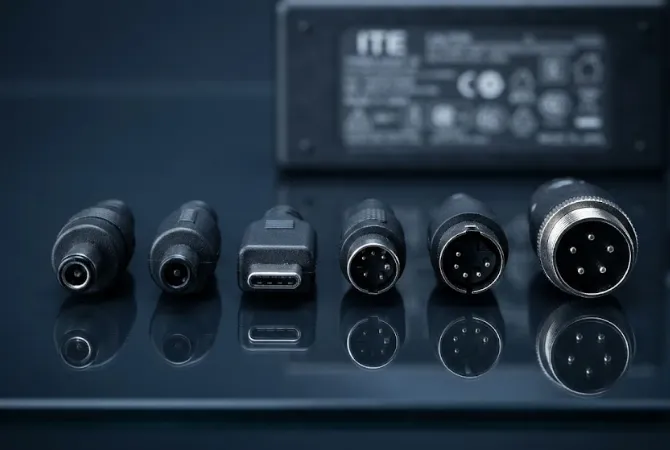

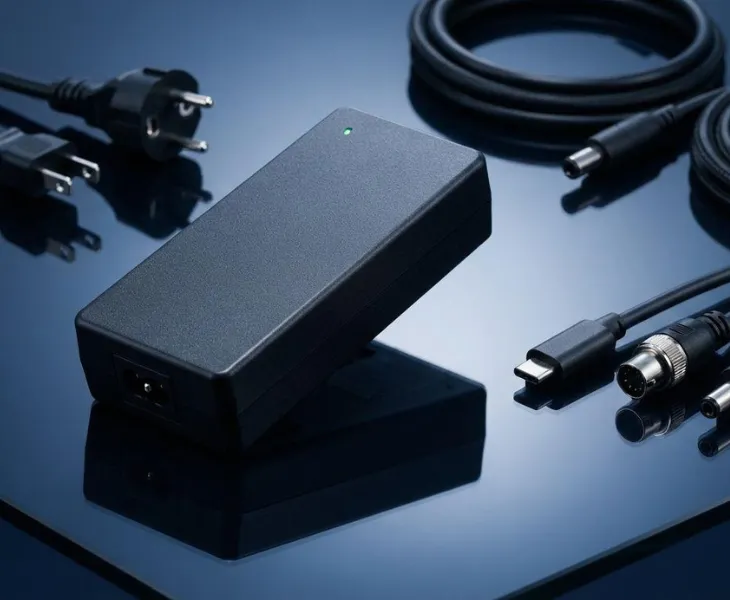

✅For physical interfaces and cables: We offer a wide range of DC connector options, covering USB-C, aviation connectors, and mainstream interface types. Cable length and shielding specifications are customizable to your equipment layout, suitable for compact and space-constrained installations.
✅For branding and packaging: Based on our mature ODM platform, we support full branding customization, including nameplate labels, housing markings, and packaging design, ensuring full visual consistency across your end product line.

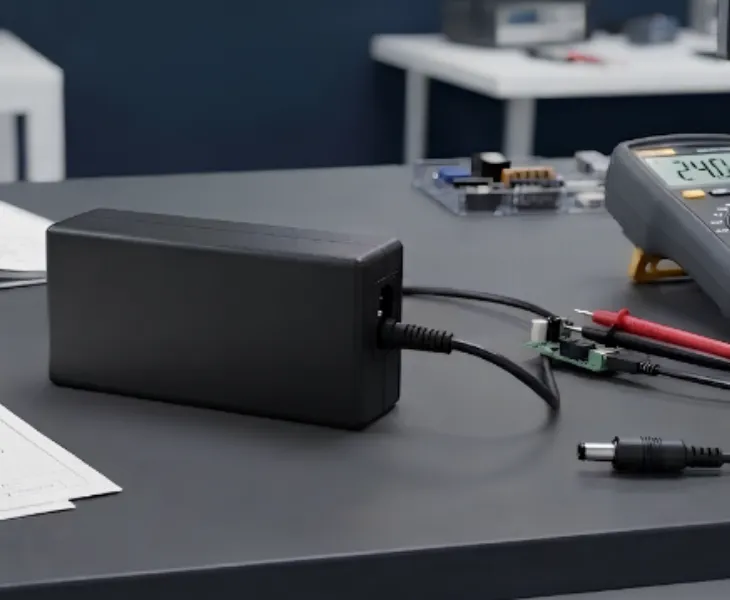

Sample verification before bulk production is the most effective step to avoid batch-related risks in the later stages and reduce the total ITE power supply costs. Quankang provides a complete ITE power supply engineering sample process for clients, ensuring the power supply solution is fully verified before formal production.
✔ Prototype compatibility verification: We recommend that clients initiate a sample request before locking in the supply chain. Your engineering team can conduct system-level integrated testing, EMC pre-testing, and thermal management assessment based on the ITE power supply engineering sample, to identify and resolve electrical compatibility issues in advance.
✔ Coordination with the R&D team: During the sample testing stage, Quankang’s senior R&D engineers will offer direct technical support, help you resolve common pain points such as startup inrush current spikes and excessive EMI margins, and ensure the R&D timeline is not hindered by power supply issues.
From one spec to mass production, Quankang operates a fully vertically integrated manufacturing system, covering design development, certification testing, and mass production delivery.
🔹Manufacturing capability: Whether high-performance external power adapters or open-frame ITE power supplies, our digital factory ensures consistent performance between prototype and mass production.
🔹Conversion of accumulated technical expertise: Based on 212 granted patents and 36 years of industry experience, we turn your design into mature products that meet international safety standards and shorten the entire timeline from specification confirmation to certification approval.
From network communication to industrial automation, Quankang offers ITE power supply solutions for the main industries below.
The security system is often deployed in an outdoor or complex electromagnetic environment, and the instantaneous high current during power grid fluctuations or when switching to night vision mode is a hidden threat to the system’s stable operation.
For CCTV and IP cameras, a low-ripple-design ITE power supply eliminates horizontal image banding caused by power noise at the source, ensuring clear and stable footage. And satisfies high-definition image transmission requirements.
For access control systems, an ITE power supply with exceptional surge-withstand capability ensures the system maintains a secure lock state during abnormal grid fluctuations and eliminates the risk of false triggering
To accommodate regional differences in power grids worldwide, our products feature a wide voltage input design (90-264VAC) suited to global electrical environments, ensuring 24/7 protection
Requirements for power supplies in the consumer electronics market have evolved towards being lightweight and thin, highly energy-efficient, and low-noise.
For smart home terminals applications, we offer a green ITE power supply that meets DOE Level VI and ErP energy standards for smart home devices. It significantly reduces standby power consumption, helping the product successfully pass market access certification for Europe and the United States.
For gaming machines and LED displays, our ITE power supply has high-current instantaneous response capability, ensuring smooth, high-refresh-rate visuals without lag from power response delays.
For the aesthetic design of the entire unit, our ITE power supply is compact in size, supports built-in installation, and is suitable for consumer electronics devices that have strict requirements for aesthetics and space.
In an industrial on-site environment with shock and strong electromagnetic interference, unexpected downtime could cause the entire production line to come to a halt.
For industrial PCs, we provide a high-MTBF design and support 365 days of uninterrupted continuous operation.
For test equipment and measurement instruments, we apply advanced EMI shielding technology to protect the high-precision sensor signal from power supply noise interference.
For the automation equipment production environment, we satisfy the factory automation equipment’s high standard for power reliability, support a wide temperature work range, and are adaptable to harsh industrial environments.
LED flicker, shortened lifespan, and uneven dimming curves are common issues that typically trace back to power supply quality.
We provide a high-PFC design, eliminate flicker at the source, and significantly extend LED chip lifespan.
For lighting deployment, our ITE power supply meets European ErP energy compliance, optimizing power factor to improve grid utilization efficiency in large-scale commercial deployments.
For the special driver requirements, we support wide voltage input(90-264VAC), and provide customized power solutions for a precise match to different lighting manufacturers requirements.
Quankang not only produces ITE power supplies, but also follows a digital manufacturing and strict testing process, delivering a zero-failure power guarantee for your equipment.

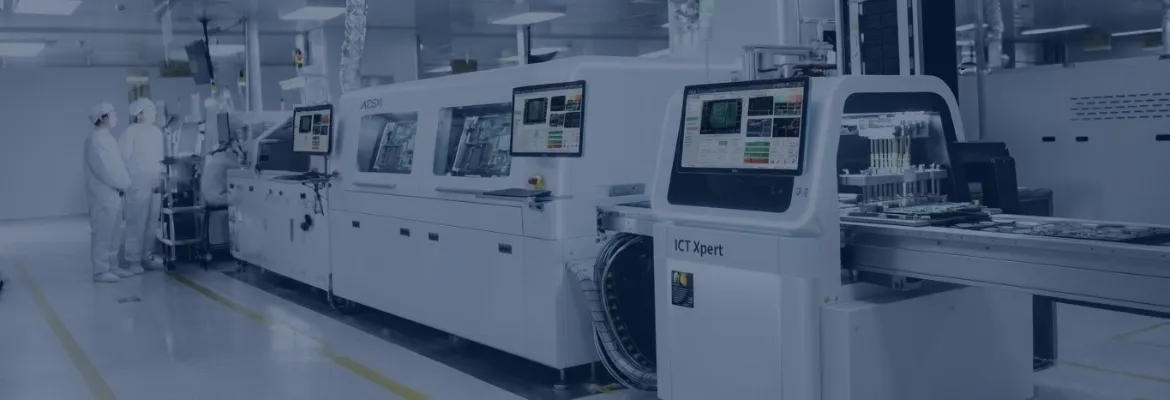

To avoid man-made assembly deviations, we have achieved full process automated testing:
✅ AOI (Automated Optical Inspection): We conduct the PCB soldering process, micron-scale scanning, ensuring electronic components are soldered with zero failure, and eliminating short circuits or the risk of cold solder joints.
✅ ICT (In-Circuit Testing): Performs static parameter validation for the ITE power supply circuit in the assembly stage, which ensures each resistor, capacitor, and chip installation meets the design standard.
✅ ATE (Automated Functional Testing): Our independently developed ATE test platform, which passes all specifications verified, such as voltage, current, efficiency, ripple, ensuring each ITE power supply that leaves the factory fully matches your exact specifications.

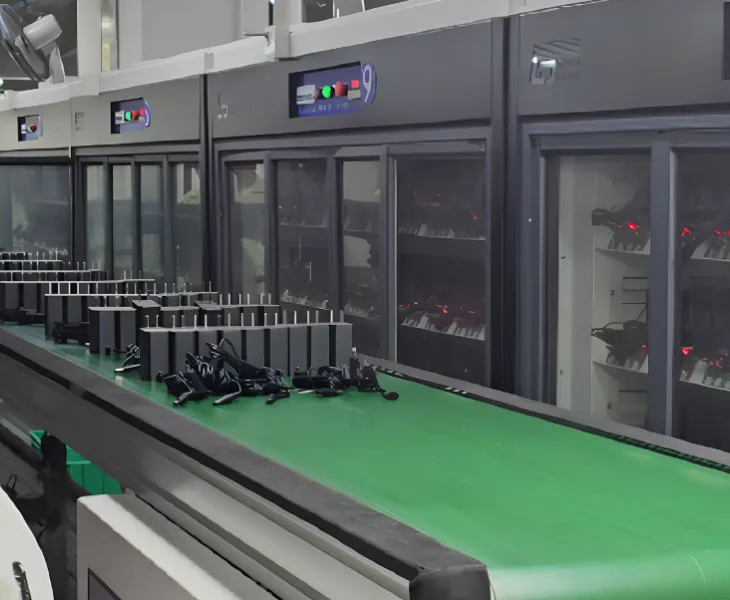

100% Full-load Burn-in: Each ITE power supply must conduct a full-load operation test in the high-temperature burn-in chambers, to simulation high load work scenarios in advance, and remove products prone to early failure.
MTBF Lifespan Guarantee: This is based on our selection of 105℃ long lifespan electrolytic capacitor, combined with thermal simulation optimization design, we ensure the ITE power supply to have 100,000+ hours MTBF (Mean Time Between Failures) under full-load.
Wide-temperature performance: Every production batch must pass the -20℃ to +70℃ extreme temperature shock test, ensuring output voltage remains stable in the complex environment.

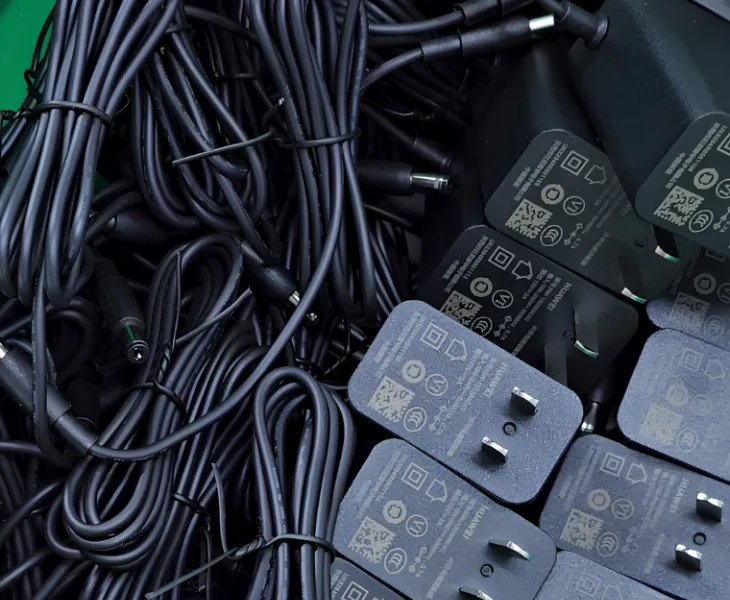

End-to-End Data Traceability: Each ITE power supply is assigned a unique digital identity by the MES/SAP digital production management system. From the key electronic components purchase batch, the workstation information of the production line, and the end test data, all processes can be traced.
Transparent Quality Commitment: Once we find an abnormality in after-sales service, we can check the production data using the ID instantly. This high visibility not only confident for quality, but also is a core guarantee for a safe supply chain.

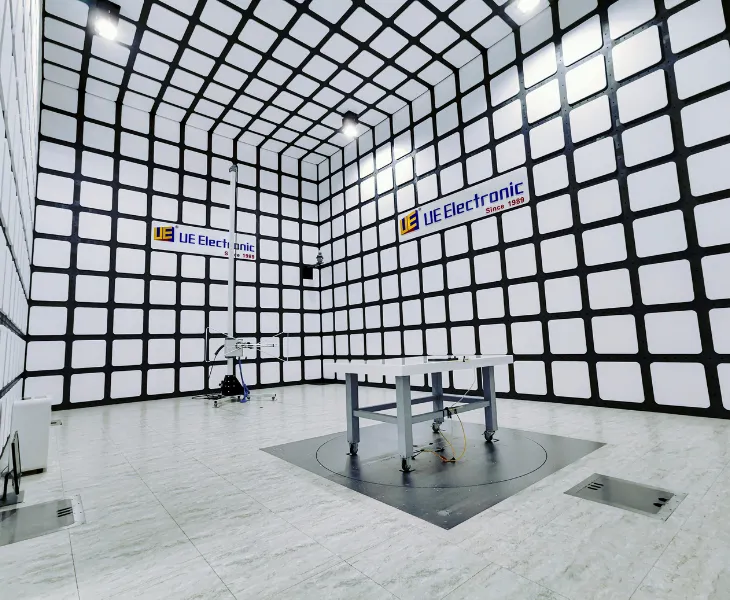

Quankang operates an in-house EMC lab, which is benchmarked against German TÜV and Swiss SGS standards. This makes your project finish pre-validation in the original design stage, saving you months of waiting for the third test company queueing cycle, and effectively avoiding project delay risks caused by certification failure.
All Quankang ITE power supplies are designed and tested to the IEC/EN/UL 62368-1 standard. With over 30 years of expertise in global compliance, we ensure your equipment meets the strict creepage distance, leakage current, and surge immunity requirements of different markets.
We provide complete test reports and auditable certification vouchers for your purchasing and compliance teams before you order.
Do you want to learn about the updated 62368 safety standard, compare the differences between ITE and medical power supplies, or find the perfect power solution? Our expert blog provides professional industry insights.
In-depth analysis of what an ITE power supply covers, including its core definition, common applications such as routers, servers, and switches, and the main industry standards, enabling you to build the basic knowledge of the product quickly.
A common point of confusion when purchasing: what is the difference between an ITE power supply (IEC 62368) and a medical power supply (IEC 60601)? This article compares the safety isolation levels, leakage current requirements, and application to prevent choosing the wrong one, which can lead to system certification failure.
With the 60950 standard completely replaced by 62368-1, what happens to power supply compliance? This article breaks it down for you: the updated safety requirements, energy efficiency standards (Level VI), and certification lists for exporting to European and American markets.
When you face 12V, 24V, 48V, and many other voltage specifications, how do you choose a stable ITE power adapter for your equipment? This guide provides selection advice from current derating and thermal design to DC plug type selection.
Our ITE power supply design is based on the IEC 62368-1 safety standard system and universal use for IT and industrial equipment. The judge, if it matches your equipment, still needs to combine with the whole structure, the electrical isolation requirement(like creepage and clearance), and finally the certification path. Generally, in the evaluation stage, we judge direct use or the need for an adjustment solution according to your system structure.
In the actual use of an ITE power supply, you cannot just focus on the rated voltage and observe the actual working environment inside the equipment. For example, in routers, switches, or industrial control equipment, the temperature inside the computer case is often higher than outside, specifically in limited space or situations involving poor airflow. So many power supplies will allow for temperature and load margins and will not run in the fully loaded state for a long time. In the 40℃ to 50℃ or higher environment, we suggest derating to ensure reliability for a long time.
Ripple, noise, and EMI are not directly reflected in the paper parameters and are actually observed during system debugging or EMC testing. In some network equipment, if using the same power supply, different PCB layout or filtering design results in different outcomes. EMI is not solved depending only on the power supply; grounding method, cable routing, and shielding design all affect the final result. So we usually only focus on power supply data, and the complete unit conducts an EMC test together.
24/7 continuous operation is a common type in network equipment and servers. Most ITE power supplies are designed for this solution. The actual effect on lifespan is not just that it is left on all the time, but depends on operating conditions such as temperature, ventilation, and long-term full-load operation.
Our Quankang ITE power supply units come standard with the usual suspects: Over-voltage (OVP), Over-current (OCP), and Short-circuit (SCP) protection. Some models also feature Over-temperature protection (OTP). However, don’t just assume these are “set and forget.” Depending on the harshness of your specific ITE power supply operating environment, we often need to tweak these trip points to ensure they trigger only when they actually should, without causing false shutdowns.
Stability isn’t a happy accident; it’s a managed process. For our industrial clients, we control risks through a very strict framework: we handle active Component Lifecycle Management for every ITE power supply to track PCN/EOL alerts, enforce a strict BOM locking strategy, and perform rigid batch consistency controls. This is the only way to guarantee that the Quankang ITE power supply we ship today will still be supportable and reliable years down the road.
Before ITE power supply customization, you need to provide basic information to us:
1)Input voltage range (e.g., 100-240V).
2)Output voltage and current.
3)Application (e.g., CCTV, routers, industrial equipment).
4)Operating environmental conditions.
Our engineering team chose a standard model or a full custom design stage based on this information.
Our ITE power supply conducts EMC pre-compliance testing in the design stage so that meet the requirements of the common market. One needs to notice that the final EMC performance depends on the whole machine system design, such as structural layout, grounding method, and wiring harness routing. ITE power supply universal assures single compliance, the system level compliance need combine with the whole machine verified.
MTBF is an index for judging reliability reference by power supply manufacturers, which is mainly based on component data and test models. Our ITE power supplies’ MTBF is generally 100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217. But the actual lifespan is different because the same power supply has different performance under different temperature, load, and heat dissipation conditions.
Our delivery time often depends on the project solution and is not fixed. A standard model custom service is usually short. For instance, modifications to electrical parameters, structural adjustments, or changes in certification requirements can extend the timeline. In addition, delivery times are also affected by component availability, order volumes, and the production line schedule at the time. A relatively accurate timeframe can only be provided once the plan has been confirmed.
Our standard MOQ is 1,000 items to ensure production efficiency and cost structure. For some solutions, assessments are based on electrical design complexity, structural adjustments, and certification requirements, and are not entirely fixed. After the project evaluation, we provide a detailed MOQ plan for you.
In the sample stage, prioritize scheduling after confirming the specification, use for electricity verification and system test, and universal needs about 15 days.
In the bulk production stage, the cycle will be affected by material preparation and scheduling, especially if the ITE power supply design involves customization. So the whole cycle needs to be evaluated based on detail solution and not a fixed time. We will offer a close production ITE power supply delivery plan.
