Question 1

What is the difference between 1×MOPP and 2×MOPP isolation, and when does my application require 2×MOPP?

Accepted Answer

MOPP (Means of Patient Protection) is the insulation barrier between the power input and the application part. 1×MOPP provides basic insulation (1,500VAC withstand), and 2×MOPP requires reinforced insulation (4,000VAC withstand) suitable for any part in contact with or near patients. According to IEC 60601-1 Clause 8.8, devices with BF-rated application parts must meet 2×MOPP requirements between the input and the application part.

Question 2

What leakage current limits apply to my device, and how do I verify compliance under worst-case conditions?

Accepted Answer

According to IEC 60601-1, three types of leakage current apply: earth leakage (≤500µA for Class I), enclosure leakage (≤100µA), and patient leakage (≤100µA for BF-rated applied parts). Worst-case testing should be conducted at 110% max input voltage (264VAC for universal input) with protective earth grounded. Ultra-low capacitance design controls leakage by reducing Y capacitance values, avoiding additional downstream filter components.

Question 3

How do IEC 60601-1-2 Edition 4 EMC requirements differ from Edition 3?

Accepted Answer

Edition 4 introduced significantly stricter immunity requirements for RF wireless communications (80MHz–2.7GHz at 10V/m vs 3V/m in Edition 3), and added new requirements for conducted disturbances from RF wireless equipment. A PSU that passed Edition 3 EMC testing may not pass Edition 4 without additional filtering or shielding. Confirm that your PSU supplier's test reports reference IEC 60601-1-2:2014 (Edition 4), not the 2007 edition.

Question 4

What documentation should I request from a medical power supply manufacturer to support my device's regulatory submission?

Accepted Answer

The complete regulatory submission package should include: CB test report and certificate; target market country certification (CE/UL/FCC etc.); IEC 60601-1-2 Edition 4 EMC test report; PSU withstand and leakage current test data under worst-case input conditions; MTBF calculation report (per MIL-HDBK-217 or Telcordia SR-332); and confirmation of 100% electrical safety screening in production testing.

Question 5

What is the MOQ for custom medical power supplies?

Accepted Answer

The standard MOQ for custom or ODM medical power supplies is 1,000 units. For initial prototype or engineering validation stages, smaller quantities are accepted for testing. Contact our team to confirm based on your specific model and configuration requirements.

Question 6

What certifications do your medical PSUs carry?

Accepted Answer

Our medical PSUs carry certifications for major global markets including CE (EU), UL/cUL (North America), FCC, CB (60+ countries), PSE (Japan), KC (South Korea), and BIS (India). All models meet IEC 60601-1 3rd and 4th Edition standards. CB certification as a base covers many markets and significantly reduces repeat testing across regions.

Question 7

How long is the lead time for ODM medical power supply orders?

Accepted Answer

Standard certified models have a production lead time of 35–60 days. For ODM custom orders, engineering review and DFM feedback is provided within 48 hours of submission. Sample delivery is typically 7–15 days. Complete development and certification timelines vary based on project complexity.

Question 8

Do you provide samples before bulk production?

Accepted Answer

Yes. Samples are provided for engineering verification and regulatory testing before mass production. Sample fees are quoted based on the model and are refundable after mass production order placement. Sample delivery is typically within 7–15 days after specification confirmation.

Question 9

What should I evaluate when qualifying a medical power supply supplier for long-term supply chain reliability?

Accepted Answer

Key criteria include: (1) Production traceability system supporting single-board MES/SAP traceability; (2) Self-built EMC laboratory to reduce reliance on third-party labs; (3) Automated production testing coverage including AOI, ICT, and 100% burn-in testing; (4) Strict component sourcing policy with anti-counterfeit measures; (5) Clear engineering change notification process for PCB layout adjustments or component replacements.

Question 10

How can I use a single medical power supply platform to cover multiple device variants and regional markets?

Accepted Answer

Choose a medical power supply with: (1) Universal input voltage 85–264VAC to eliminate market-specific versions; (2) Wide certification coverage including CB to satisfy multiple markets from one certificate; (3) ODM configurability for AC plug types, DC connectors, and medical-grade power cable adjustments without circuit redesign. Discuss your complete device roadmap with your PSU supplier to select a platform supporting multi-generation equipment.

Question 11

How does my choice of medical power supply affect my device's time-to-market across different regional markets?

Accepted Answer

The medical AC-DC adapter you choose determines which market certifications can be directly leveraged at device review. If your medical PSU manufacturer holds CB, CE, and UL certification for your model, notified bodies can reference it to reduce device-level electrical safety testing. Missing a key PSU-level certification can add 2–4 months to your device certification timeline and increase submission costs by $15,000–$30,000 in additional testing fees.

Tag: 54v power supply

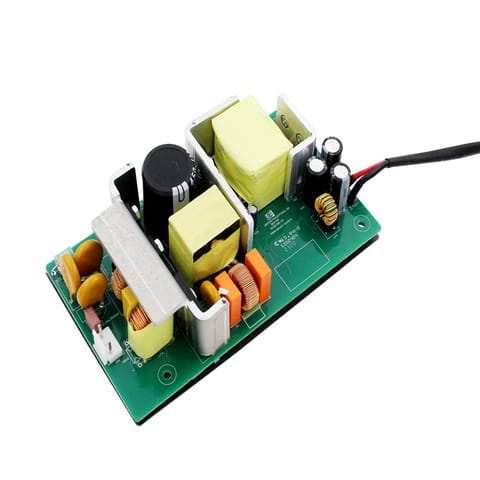

Medical Open Frame Power Supply UES150-540277SPA1-OP

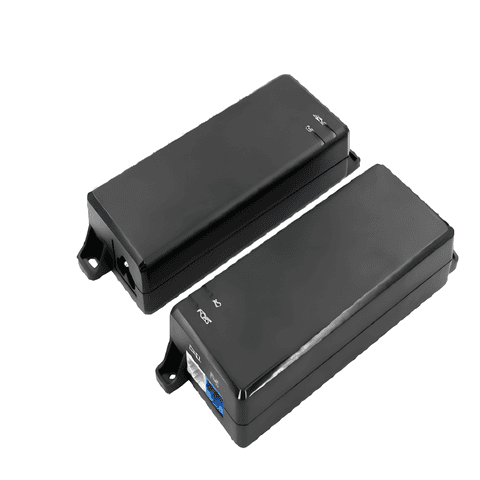

Medical Power Supply PoE30DZ-540056

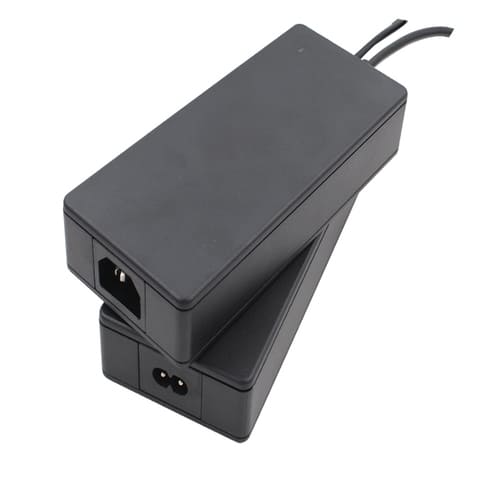

Medical Power Supply UES240DZ-XXXYYYSPA
