Home Desktop Medical External Power Supply UED120-SPA Series Desktop Medical External Power Supply 24V Hospital Grade 120W AC-DC Switching Power Adapter 120 W 11.5 ~
36 W
90~ 264 Vac input
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
Application place: portable ultrasound diagnostic instrument, EEG electroencephalogram, blue light therapy instrument, urine analyzer, mini centrifuge, medical-grade sleep aid, oxygen generator

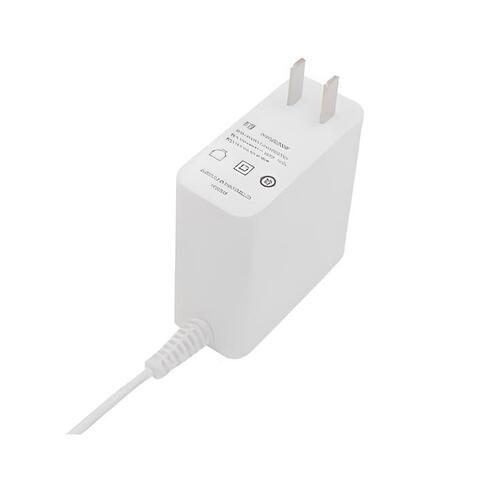

The UES36WZ1-SPA series is a 36W AC to DC wall plug medical external power supply, 12-volt DC plug power supply designed for home healthcare applications, It offers multiple output options, including 12V, 19V, and 24V, among other voltages (coming with a universal input of 90 ~ 264 Vac), to cater to various medical devices. This power supply features four AC input ports and adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications, as well as the 4th Edition EMC requirements, ensuring class II operation. Real power, full load aging testing, and 100% loading testing. This power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility, suitable portable ultrasound diagnostic instrument, EEG electroencephalogram, blue light therapy instrument, urine analyzer, mini centrifuge, medical-grade sleep aid, Oxygen generator.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CB, CCC, cULus, FCC, TUV-Mark
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES36WZ1-SPA | 36.0 | 90-264 | 12.0 | 0.01-3.00 | 0 ~ +45 | CB, CCC, cULus, FCC, TUV-Mark |
| UES36WZ1-SPA | 36.0 | 90-264 | 19.0 | 0.01-1.89 | 0 ~ +45 | CB, CCC, cULus, FCC, TUV-Mark |
| UES36WZ1-SPA | 36.0 | 90-264 | 24.0 | 0.01-1.50 | 0 ~ +45 | CB, CCC, cULus, FCC, TUV-Mark |
It is suitable for patient monitors, portable ultrasound, ECG machines, nebulizers, blood pressure monitors, and small lab analyzers.
Yes, it can be designed to meet IEC 60601-1 and IEC 60601-1-2 standards for medical electrical safety and EMC.
The adapter supports a wide range from 5V to 48V, covering various medical device requirements.
Absolutely. It is ideal for home-use devices like digital thermometers, pulse oximeters, and sleep therapy equipment.
Various DC plug types (e.g., 2.1mm, 2.5mm), DIN, or custom connectors can be provided depending on the application.
Yes, it can be certified with UL, CE, FCC, UKCA, PSE, and other regional standards upon request.
Yes, options like EU, US, UK, and AU plugs are available for global compatibility.
It meets DOE Level VI or CoC Tier 2 efficiency standards, ensuring energy-saving performance.
Yes, it is designed for 24/7 operation with stable output and over-temperature protection.
It includes OVP (over-voltage), OCP (over-current), SCP (short-circuit), and OTP (over-temperature) protection.
