UES23LZ-SPC Series
23W medical wall plug power adapter with IEC 60601-1 compliance and compact design
23W medical wall plug power adapter for healthcare applications
5V / 9V / 12V output options for different medical device designs
IEC 60601-1 compliant medical safety design
2 MOPP patient protection for enhanced isolation requirements
Low leakage current suitable for patient-connected equipment
Compact wall plug housing for space-saving system integration
The UES23LZ-SPC series is a 23W medical wall plug power adapter developed for compact medical and healthcare equipment requiring safe, reliable and space-efficient power solutions. Designed with medical-grade isolation and low leakage current performance, this series helps equipment manufacturers simplify system integration while meeting strict electrical safety requirements.
With its compact wall mount form factor and stable DC output, the UES23LZ-SPC is suitable for portable diagnostic devices, patient monitoring systems and home healthcare equipment where reliability, safety and long-term operation are essential.
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES23LZ-SPC | 23.0 | 80-264 | 5.0 | 0.01-3.00 | 0~+40 | CE |
| UES23LZ-SPC | 23.0 | 80-264 | 9.0 | 0.01-2.22 | 0~+40 | CE |
| UES23LZ-SPC | 23.0 | 80-264 | 12.0 | 0.01-1.67 | 0~+40 | CE |
The UES23LZ-SPC series adopts a compact wall plug design, providing a space-efficient external power solution for medical equipment where installation space and system integration flexibility are important considerations.
The lightweight enclosure helps simplify product design by moving AC-DC conversion outside the medical device, allowing manufacturers to optimize internal space while maintaining reliable power performance.

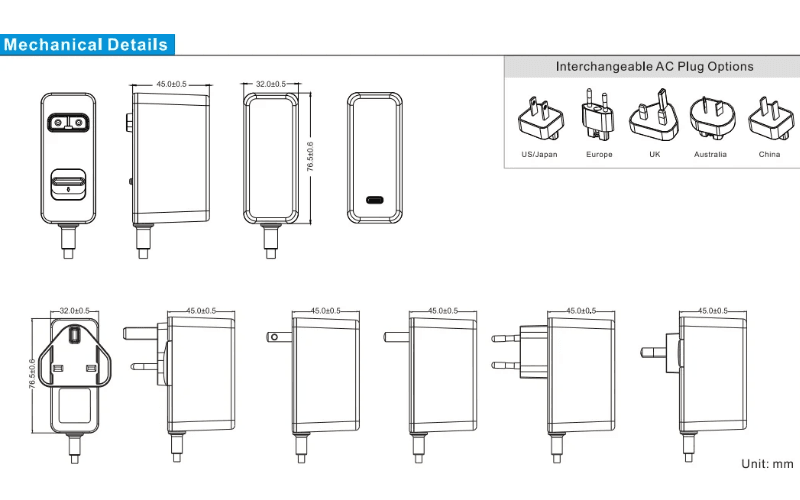

Dimensions
Weight
76.5 × 32.0 × 45.0 mm
154g
The UES23LZ-SPC series supports a wide input voltage range from 80VAC to 264VAC, allowing medical equipment manufacturers to deploy the same power solution across different regions.
The optimized input design helps ensure stable operation in various power environments while maintaining compliance with medical safety requirements.
Input Voltage Range
Frequency Range
Input Current
Inrush Current (max)
Touch Leakage Current
Efficiency
80-264VAC
47–63Hz
0.8A max at 80VAC
80A max at 240VAC cold start
≤100μA at 264VAC
81.84%-86.52%
Medical devices may operate in different environments including hospitals, clinics and home healthcare settings.
The UES23LZ-SPC series is designed with defined environmental limits to support reliable operation throughout the product lifecycle.
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
MTBF
0℃ to 40℃
-40℃ to 80℃
10–90% RH, non-condensing
5%-90% RH
Up to 5000m
>100,000 hrs (MIL-HDBK-217, 25℃)
The UES23LZ-SPC integrates multiple protection functions to help protect both the adapter and connected medical equipment during abnormal operating conditions.
These protection features improve system reliability and reduce the risk of damage caused by overload, short circuit or abnormal voltage conditions.
Overload
Over Voltage
Short Circuit
105%-150% rated output power, auto recovery
105%-150% rated output voltage, input reset
Trip and restart, hiccup mode
For medical device manufacturers, electrical safety and isolation performance are critical factors during product development and certification.
The UES23LZ-SPC series is designed according to medical safety requirements, providing enhanced isolation protection for healthcare applications.
IEC60601-1
EN60601-1
| Item | Standard |
|---|---|
| Safety Agency / Mark | CB |
| Medical Standard | IEC60601-1 |
| Safety Agency / Mark | TÜV-SÜD/Mark |
| Medical Standard | EN60601-1 |
| Item | Medical | ITE |
|---|---|---|
| Conduction | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | IEC61000-3-2, Class A | IEC61000-3-2, Class A |
| Voltage Flicker | IEC61000-3-3 | IEC61000-3-3 |
The UES23LZ-SPC series is designed for compact medical and healthcare equipment requiring a reliable external AC-DC power solution.
With medical safety compliance, 2 MOPP isolation and a compact wall plug design, the adapter provides a flexible power option for portable diagnostic, monitoring and home healthcare devices.
Selecting a medical wall plug adapter requires careful consideration of output requirements, safety standards and system integration. This section answers common questions about voltage options, leakage current, 2 x MOPP protection and application suitability for the UES23LZ-SPC series.
The series covers common low-voltage medical equipment requirements with 5V, 9V and 12V output versions and power up to 22.5W.
For equipment selection, engineers normally confirm the rated voltage first and then check the operating current under the actual load condition. This makes the series suitable for compact medical devices where a dedicated external AC-DC solution is required.
The 22.5W power range is commonly used for compact medical equipment that requires stable DC input but does not require high-power operation.
Typical applications include patient monitors, ECG monitors, blood pressure monitors, pulse oximeters, glucose meters and sleep monitoring equipment.
The final selection depends on the equipment power consumption, safety classification and operating environment.
For compact medical equipment, internal space is often reserved for sensors, control boards and communication modules.
An external wall plug adapter removes the AC conversion stage from the device enclosure, helping simplify the mechanical design while maintaining the required medical safety performance.
The series is developed for medical equipment requiring enhanced protection between the AC input and DC output.
With 2 x MOPP isolation and ≤100μA touch leakage current, it supports medical device designs where patient protection requirements need to be considered during certification.
The universal input range of 80-264VAC allows the same power platform to be used across different regional markets.
For medical equipment manufacturers developing products for multiple countries, this reduces the need to select different AC-DC solutions for each market.
For medical applications, output voltage alone is not the only selection factor. Safety approval, isolation level and EMC performance also need to match the final equipment requirements.
The series includes CB certification according to IEC60601-1, TÜV-SÜD Mark according to EN60601-1 and supports IEC/EN60601-1-2 EMC requirements.
Medical equipment manufacturers often have different mechanical requirements depending on the enclosure design and connection method.
The standard platform can be evaluated for options such as DC connector type, cable length and plug configuration to match specific equipment requirements.
USB-C PD chargers are designed for flexible power delivery through communication protocols, which is suitable for consumer electronics such as laptops and mobile devices.
For medical equipment, fixed output voltage, isolation performance and certification requirements are usually the main considerations. A dedicated medical adapter is selected when these factors are part of the product design.
Different medical devices require different power levels, output configurations and mechanical formats. Explore other medical power adapters designed for portable, desktop and embedded healthcare equipment applications.
Selecting a medical wall plug adapter requires more than matching voltage and power ratings. These technical resources help engineers understand medical safety requirements, isolation protection and power considerations when designing healthcare equipment.
For medical equipment manufacturers, isolation performance is a key factor when selecting an external power adapter. This article explains how 2 x MOPP protection works and why it is important for patient-connected applications.
Understanding IEC 60601-1 requirements helps engineers select a suitable medical power solution during product development. Learn how safety standards, leakage current and isolation requirements affect power supply selection.
Medical devices such as TENS units require stable DC power for reliable operation. This article explains AC and DC power considerations and helps designers understand common power requirements in portable medical equipment.
Our engineering team provides comprehensive support for this power supply series. Whether you need standard models, custom DC output specifications, or specific medical compliance assistance, we ensure your requirements are met with precision and speed.
✔ 2 MOPP & IEC 60601-1 Certification Support
✔ Custom DC Connectors & Cable Options
✔ Free Engineering Samples for Evaluation
✔ Detailed Technical Response within 24h
