Medical External Power Supply UE05LCP-SPA
Home Wall Plug Medical External Power Adapter UE05LCP-SPA Interchangeable Class II AC Plug 5V Wall Plug Hospital Grade External Power Adapter 5 W 90 ~
140W
80-264VAC
Meets medical & I.T.E. safety
Leakage current ≤100μA
Energy efficiency level VI
≤ 0.15W standby power
5V/9V/12V/15V/20V/28V outputs, up to 140W
Up to 5,000m operating altitude
Meet USB PD3.1&PD3.0&QC4.0+&QC3.0&QC2.0 fast charge agreement
GaN technology

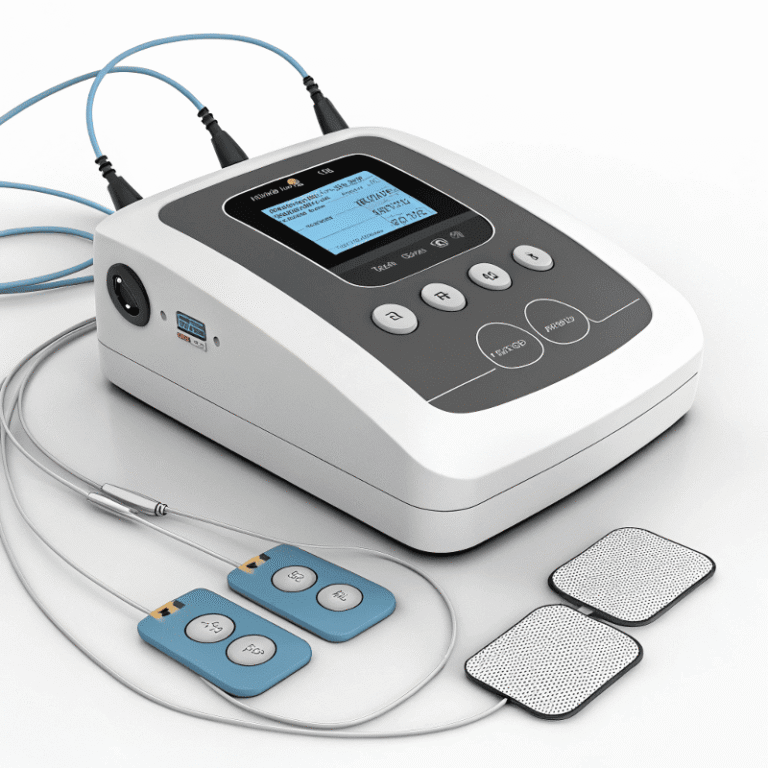

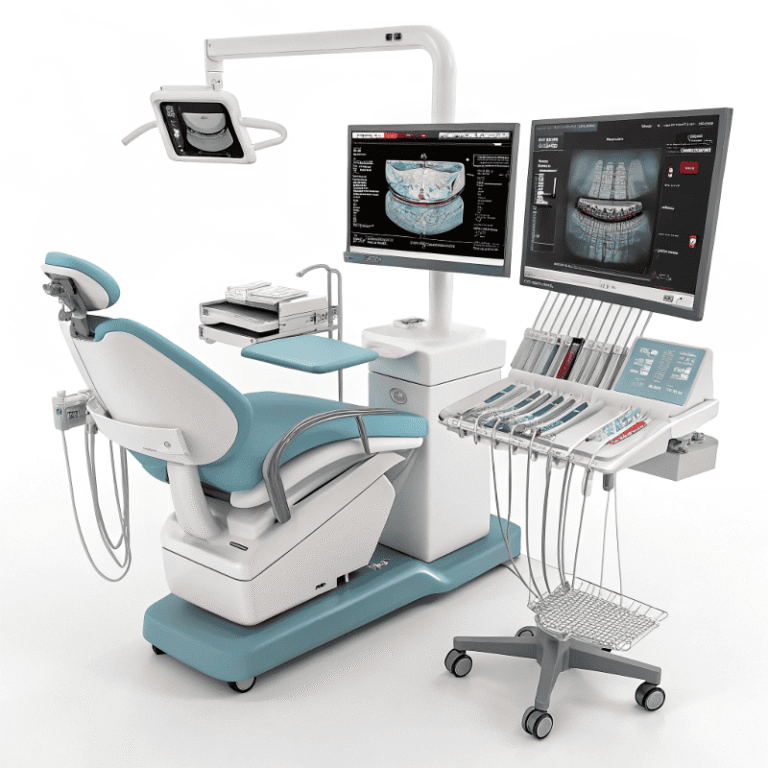

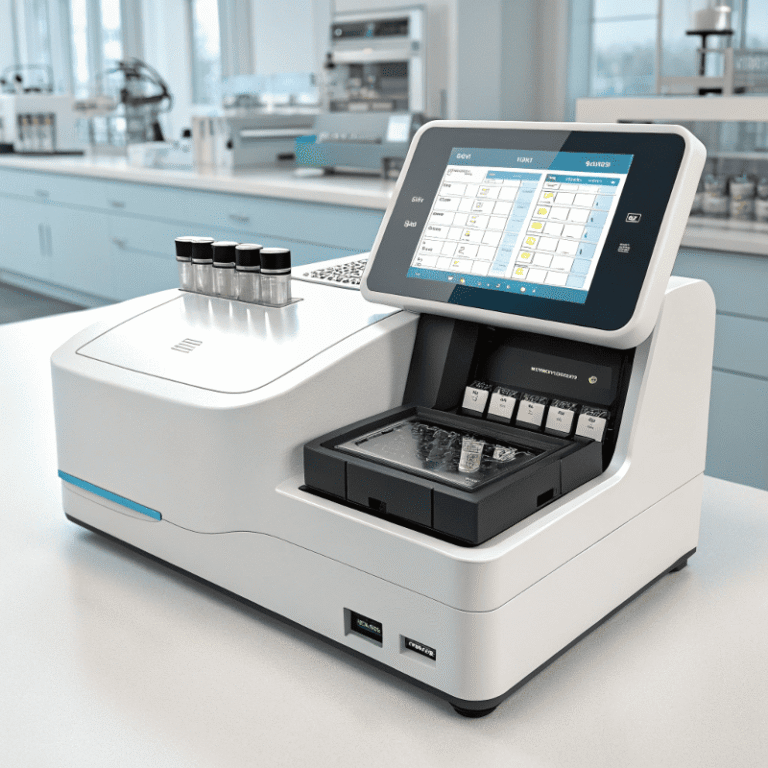

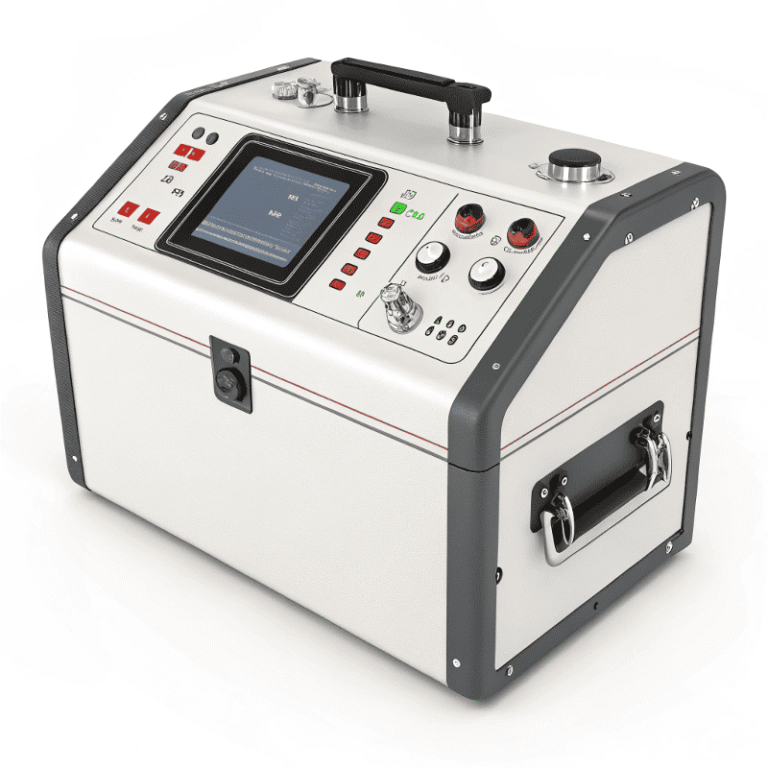

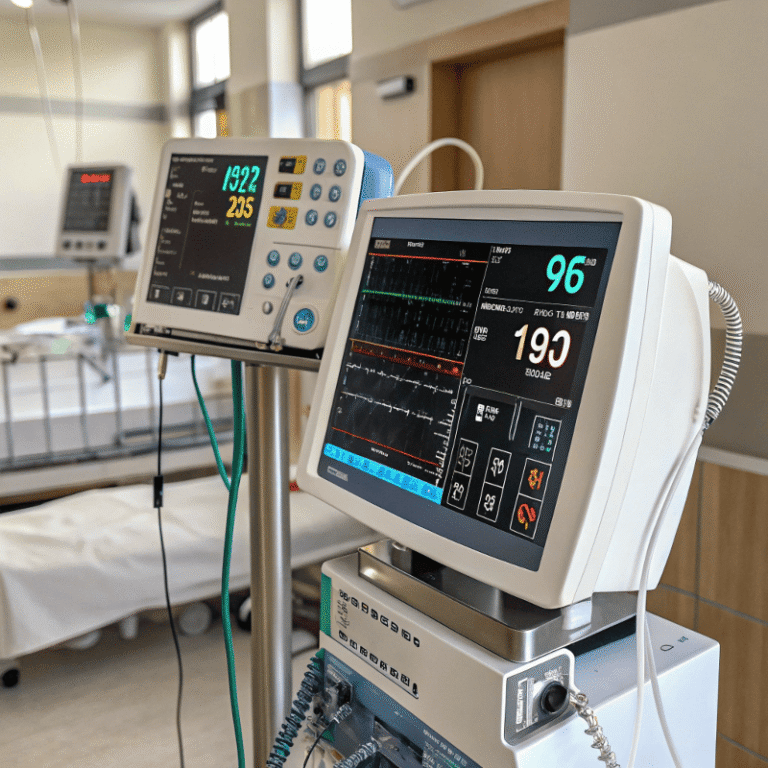

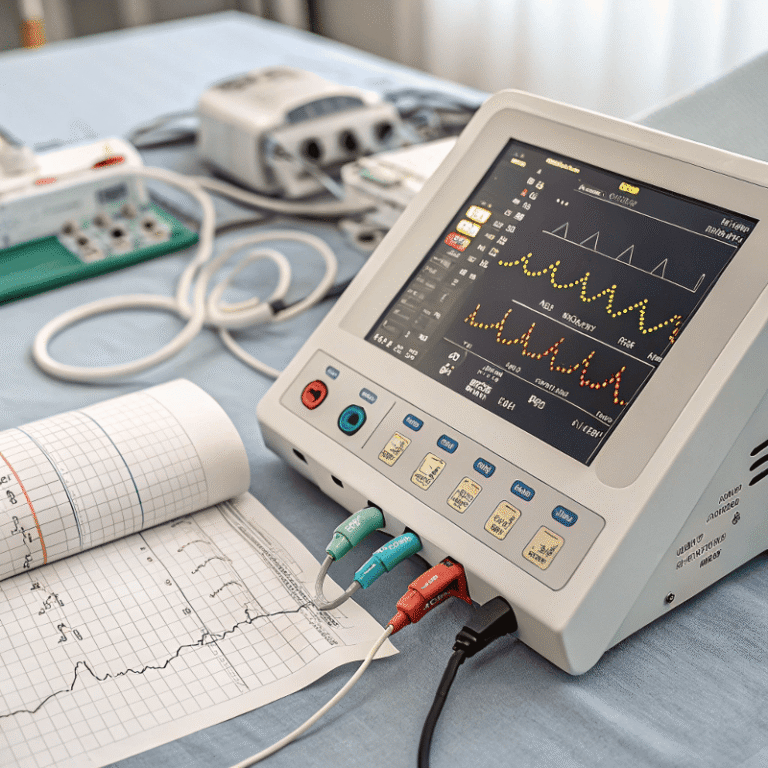

Application place: electrocardiograph, biochemical analyzer, anesthesia monitoring equipment, dental imaging system, small X-ray analyzer, high-frequency electrotherapy device

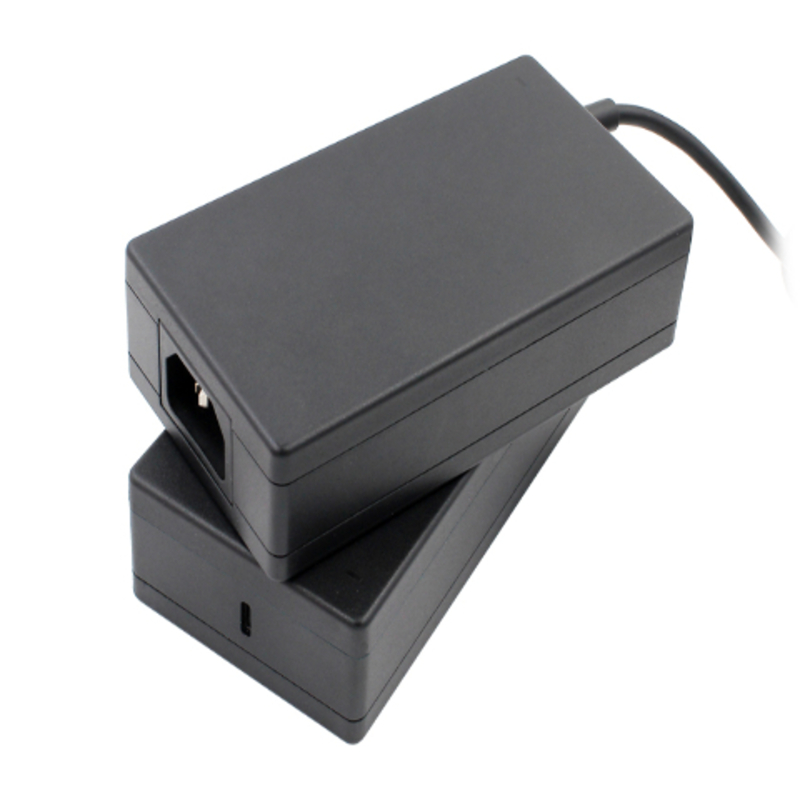

UES140AZ/UES140BZ-SPC is a versatile 140W AC to DC desktop medical external switching power supply designed for home medical equipment applications, quick charge 3.0 wall charger, providing multiple output options including 5V, 9V, 12V, 15V and 28V, and other voltages (with universal input of 80 ~ 264 Vac) to meet the needs of various medical devices. It meets USB PD3.1 & PD3.0 & QC4.0+ & QC3.0 & QC2.0 fast charging protocols, adopts gallium nitride technology, and complies with the strict safety standards of IEC 60601 1 3.1 version for 2 x MOPP applications and 4th version EMC requirements to ensure Class II power supply 12V operation. This power supply suits electrocardiograph, biochemical analyzer, anesthesia monitoring equipment, dental imaging system, small X-ray analyzer, and high-frequency electrotherapy device.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE,CB,TUV-Mark,UL
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES140AZ/UES140BZ-SPC | 15.0 | 80-264 | 5.0 | 0.01-3.00 | 0 ~ +40 | CE |
| UES140AZ/UES140BZ-SPC | 27.0 | 80-264 | 9.0 | 0.01-3.00 | 0 ~ +40 | CE |
| UES140AZ/UES140BZ-SPC | 36.0 | 80-264 | 12.0 | 0.01-3.00 | 0 ~ +40 | CE |
| UES140AZ/UES140BZ-SPC | 45.0 | 80-264 | 15.0 | 0.01-3.00 | 0 ~ +40 | CE |
| UES140AZ/UES140BZ-SPC | 100.0 | 80-264 | 20.0 | 0.01-5.00 | 0 ~ +40 | CE |
| UES140AZ/UES140BZ-SPC | 140.0 | 80-264 | 28.0 | 0.01-5.00 | 0 ~ +40 | CE |
It is used in patient monitors, ventilators, portable ultrasound machines, dental motors, and mid-size IVD analyzers.
Yes, it can meet IEC 60601-1 standards and is designed for hospital-grade performance.
Yes, it supports a wide output range (5V–28V), making it compatible with multiple devices.
The adapter includes over-voltage, over-current, short-circuit, and over-temperature protection.
Yes, it complies with high-efficiency standards such as DOE Level VI and EU CoC Tier 2.
Absolutely. Output voltage, connector type, label, and casing can be customized for OEM/ODM needs.
It supports universal input: 90–264V AC, 47–63Hz.
Yes, it can power dental handpieces, LED curing lights, and certified RF/laser beauty systems.
It typically uses natural air cooling with high efficiency and low heat output.
Yes, it is designed for continuous operation with stable performance and long lifespan.
