UES45LCP-SPC | 5V-20V 45W USB-C PD Medical Power Adapter
UES45LCP-SPC series
Designed for portable healthcare equipment, this 45W USB-C PD adapter provides a compact alternative to traditional medical power adapters with support for modern charging protocols.
- 45W USB-C PD Medical Power Solution
- USB-C Interface for Modern Healthcare Devices
- PD3.0 / QC / PPS Fast Charging Compatibility
- Compact Wall Plug Design for Portable Equipment
- Medical Safety Isolation Design
- Low Power Consumption Design
Models & Ratings
he UES45LCP-SPC series is available in several USB-C PD output versions, covering 5V, 9V, 12V, 15V and 20V output voltages. Power ratings range from 15W to 45W, with output current configurations matched to each voltage option.
The 45W models provide up to 20V/2.25A output through the USB-C connector. Lower voltage versions, including 5V/3A, 9V/3A, 12V/3A and 15V/3A, are available for different device power requirements.
The series uses a USB-C PD interface instead of traditional DC output connectors, making it suitable for medical equipment designs adopting USB-C charging architecture.
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES45LCP-SPC | 15.0 | 90-264 | 5.0 | 0.01-3.00 | -20~+50 | CB, TUV-Mark |
| UES45LCP-SPC | 27.0 | 90-264 | 9.0 | 0.01-3.00 | -20~+50 | CB, TUV-Mark |
| UES45LCP-SPC | 36.0 | 90-264 | 12.0 | 0.01-3.00 | -20~+50 | CB, TUV-Mark |
| UES45LCP-SPC | 45.0 | 90-264 | 15.0 | 0.01-3.00 | -20~+50 | CB, TUV-Mark |
| UES45LCP-SPC | 45.0 | 90-264 | 20.0 | 0.01-2.25 | -20~+50 | CB, TUV-Mark |

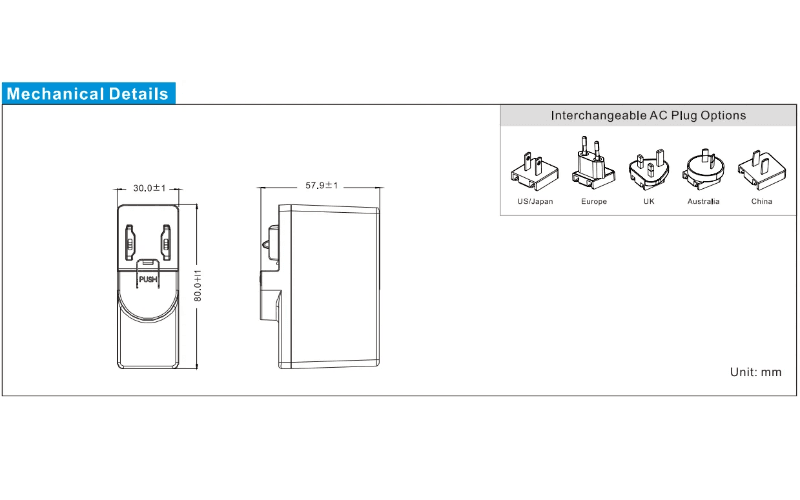

Mechanical Details
The UES45LCP-SPC uses a compact wall plug enclosure designed for portable equipment where external AC-DC conversion helps reduce internal device space requirements.
With a USB-C output interface and lightweight housing, the adapter can be integrated into compact medical and healthcare equipment designs.
Dimensions
Weight
80.0 × 57.9 × 30.0 mm
125g
Input Specifications
The UES45LCP-SPC accepts a universal 90-264VAC input range for worldwide operation. The input design supports low standby power consumption and meets modern energy efficiency requirements.
Input Voltage Range
Frequency Range
Input Current
Inrush Current (max)
Touch Leakage Current
90-264VAC
47–63Hz
1.3A max at 90VAC
130A max at 240VAC cold start
≤100μA at 264VAC
Environmental & General
The UES45LCP-SPC series is specified for operation in portable healthcare environments where temperature range, humidity tolerance and long-term stability are important design considerations.
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
MTBF
-20℃ to +50℃
-30℃ to +70℃
10% to 90% RH, non-condensing
5% to 95% RH
5,000m
>100,000hrs Telcordia_SR-332 at 25℃
Protection
The UES45LCP-SPC integrates protection functions to help prevent damage caused by abnormal operating conditions during use.
Overload
Over Voltage
Short Circuit
105-130% rated output power, auto recovery
Min 120% rated output voltage input to reset
Trip and restart (hiccup mode)
Safety Approvals
For medical equipment applications, electrical isolation and safety compliance are important considerations during power supply selection.
The UES45LCP-SPC series is designed to meet medical and information technology safety requirements, including IEC 60601-1 and IEC 62368-1 standards.
IEC60601-1
ANSI/AAMI ES60601-1
EN60601-1
| Item | Standard |
|---|---|
| Safety Agency / Mark | CB |
| Medical Standard | IEC60601-1 |
| Safety Agency / Mark | UL |
| Medical Standard | ANSI/AAMI ES60601-1 |
| Safety Agency / Mark | TÜV-SÜD/Mark |
| Medical Standard | EN60601-1 |
EMC
The UES45LCP-SPC series complies with medical EMC requirements for conducted and radiated disturbances, supporting integration into healthcare equipment environments.
| Item | Medical | ITE |
|---|---|---|
| Conduction | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Radiation | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Harmonic Currents | EN61000-3-2, Class A | EN61000-3-2, Class A |
| Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
Download File
Common Applications
The UES45LCP-SPC is designed for compact medical and healthcare devices requiring USB-C PD power input, medical-grade isolation and a space-saving external adapter design. Its 45W output capability makes it suitable for portable equipment used in clinical, home healthcare and personal care applications.
Frequently Asked Questions
This section covers the key points engineers usually check when selecting a USB-C medical adapter, including output voltage options, PD protocol support, isolation requirements, leakage current and safety approvals.
Can I use the 45W version for a device requiring 20V input?
Yes, if the equipment supports USB-C PD input. The 45W configuration provides a 20V/2.25A output profile, which is the maximum output setting of this series.
The device input requirement should match the PD profile and power rating.
Does this adapter provide fixed 12V output?
No. The output is selected through USB-C PD negotiation. The supported profiles include 5V, 9V, 12V, 15V and 20V.
If the equipment requires a fixed 12V DC output through a barrel connector, this adapter is not a direct replacement.
What is the difference between a medical USB-C adapter and a standard USB charger?
The difference is mainly related to medical safety requirements.
The UES45LCP-SPC series uses 2 x MOPP isolation and specifies ≤100μA touch leakage current. Standard USB chargers normally focus on charging performance and may not include medical safety approvals.
Which USB-C protocols are supported?
PD3.0, QC3.0, QC2.0 and PPS are supported.
The available output depends on the connected equipment and the negotiated power profile.
Does this model meet IEC60601-1 requirements?
The series is available with CB, UL and TÜV-SÜD approvals for medical applications. The applicable standards include IEC60601-1, ANSI/AAMI ES60601-1 and EN60601-1.
Can this adapter be used with existing medical equipment?
It depends on the original power input design.
Equipment with USB-C PD input can be evaluated with this adapter. Devices using fixed DC input connectors require additional interface confirmation.
Is 45W enough for portable healthcare devices?
The required power depends on the equipment load.
This model provides up to 45W output and is commonly considered for compact devices such as blood glucose meters, sleep apnea monitors, oxygen concentrators and wearable health monitors.
What should be checked before selecting this adapter?
The main items are input voltage, current requirement, power consumption, USB-C PD compatibility and required safety approvals.
A device requiring up to 45W USB-C PD input can match this series specification.
