Medical Power Supply UES12LCP-SPA
Home Medical Power Supply UES12LCP-SPA 2 MOPP 12v wall plug external switching 12w medical power supply Meets communication and medical safety certification 2 MOPP isolation
200 W
90 ~ 264 Vac input (wide)
-20 to +40°C temperature range
No-load power consumption < 0.15W
2 MOPP input to output isolation

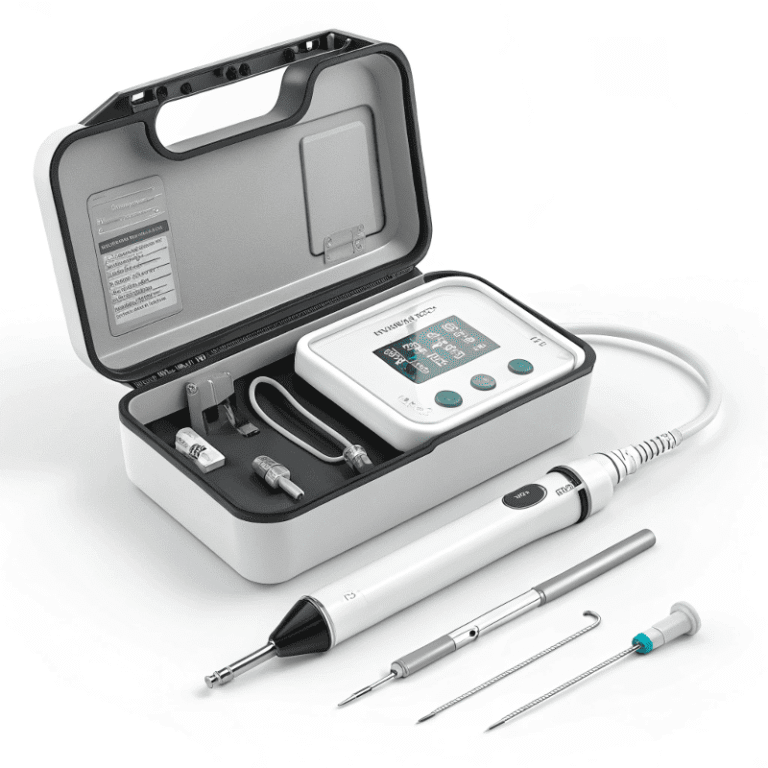

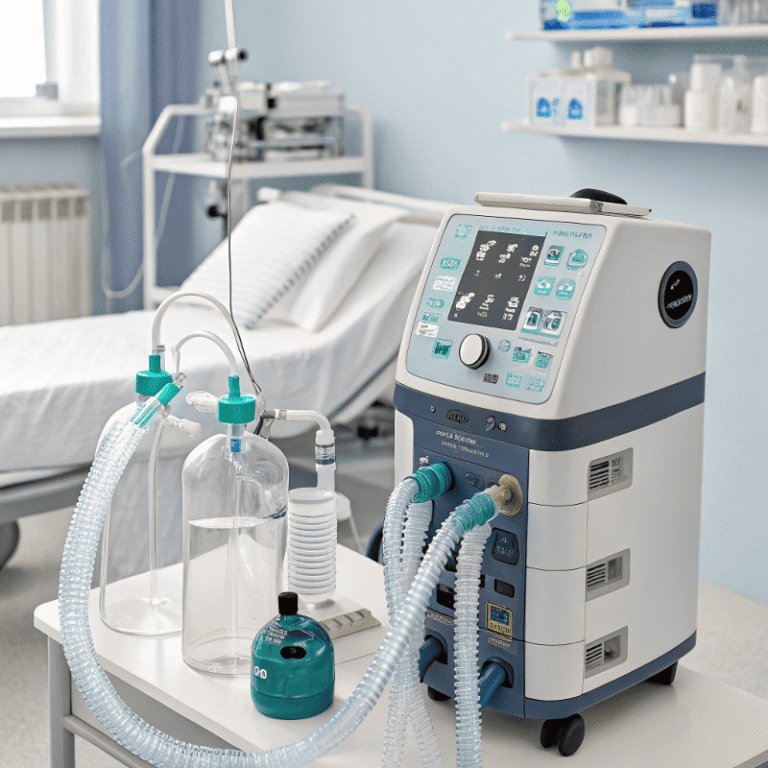

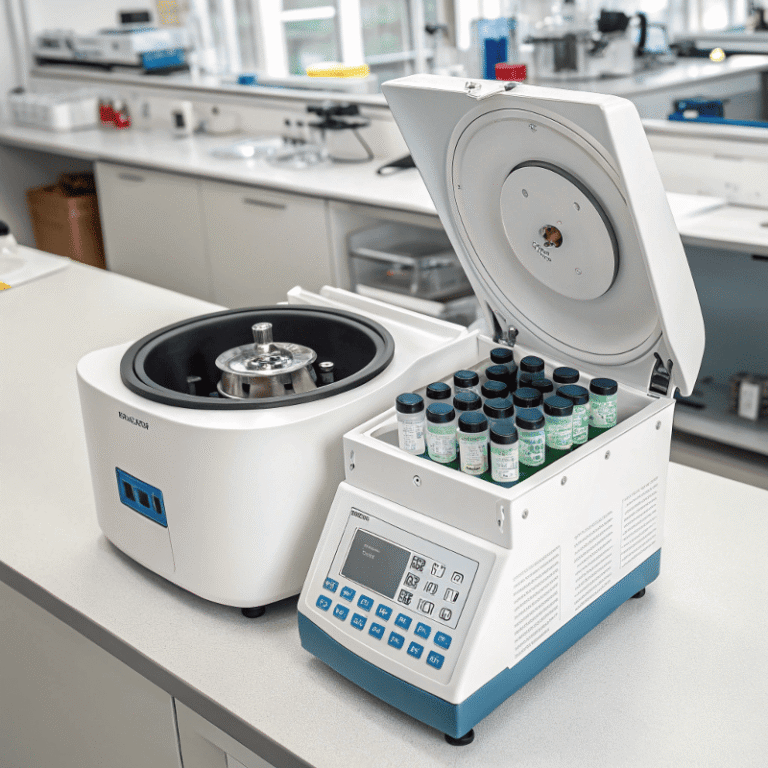

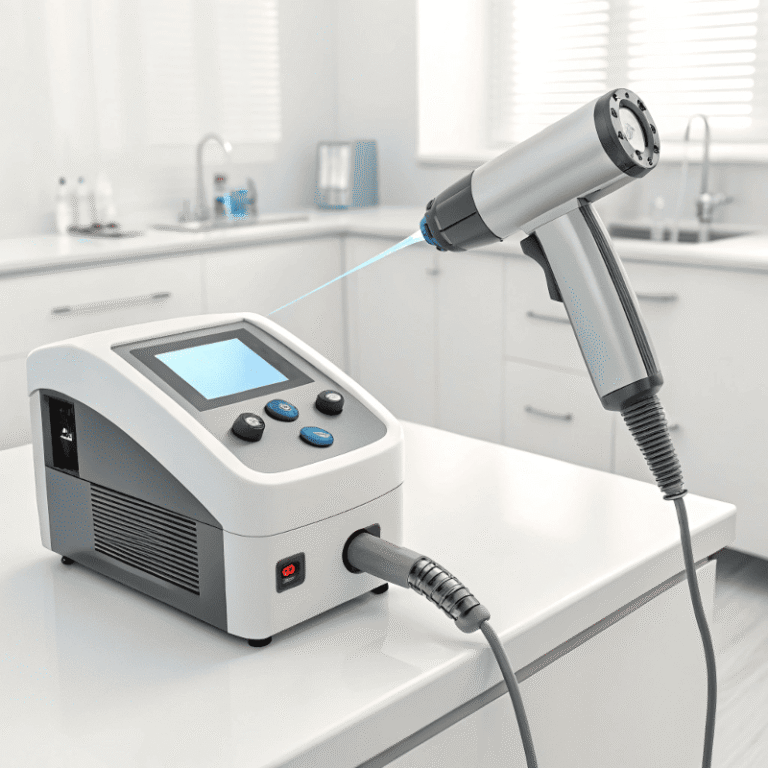

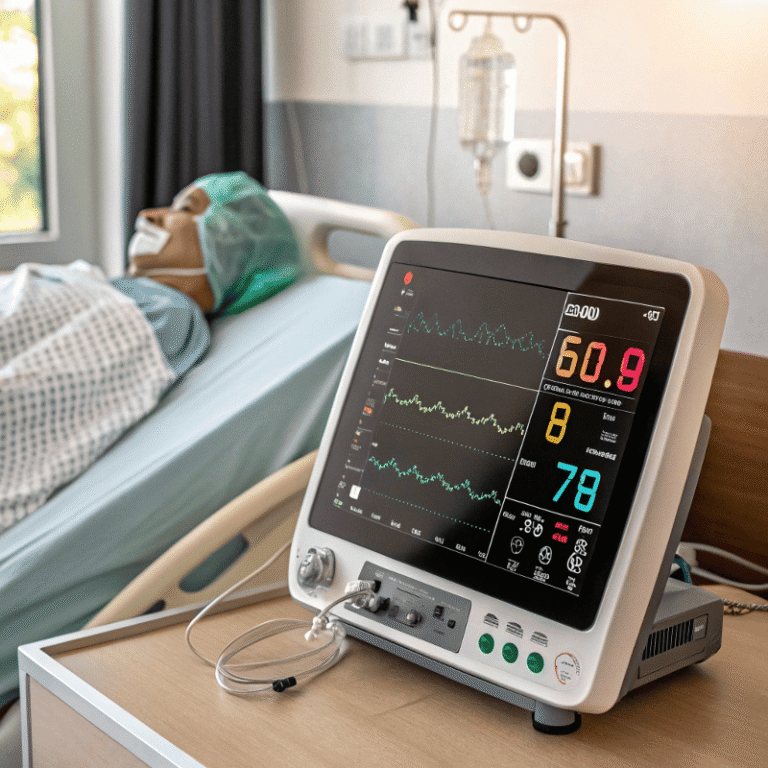

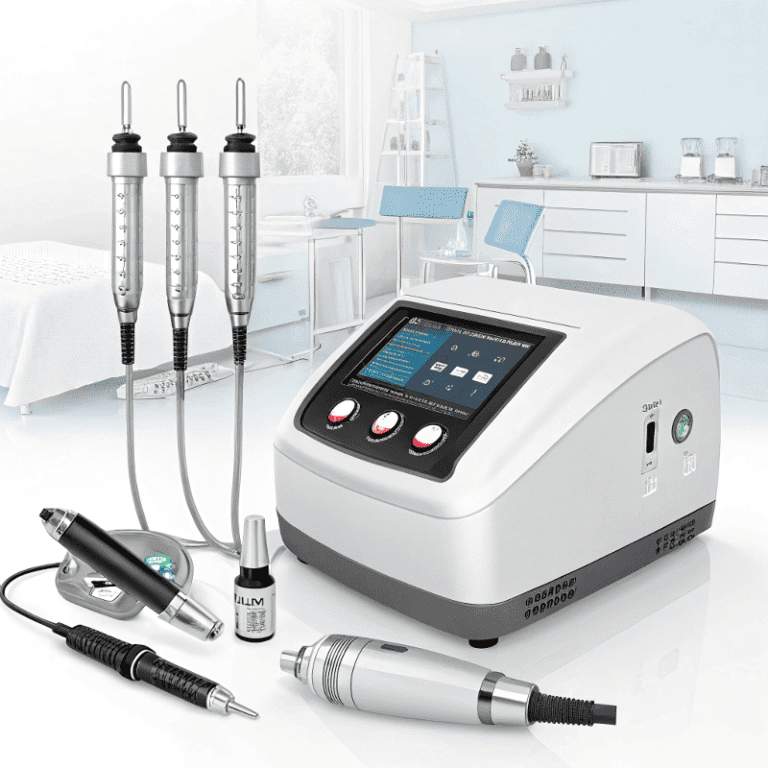

Application place: non-invasive ventilation equipment, patient vital signs monitoring, laser therapy device, desktop centrifuge, RF beauty equipment, portable dental cleaning device
The UES200-SPAZ is a 200W AC to DC desktop power supply type universal medical-grade external power supply 12V, designed for healthcare applications. It offers multiple output options, including 12V,15V, and 48V with 4 types of inlets, certified to the medical 60601-1 edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements, ensuring class II power supply operation. It suits non-invasive ventilation equipment, patient vital signs monitoring, laser therapy device, desktop centrifuge, RF beauty equipment, and portable dental cleaning device.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE,CB,TUV-Mark,UL
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES200-SPAZ Series | 180.0 | 90-264 | 11.0-12.0 | 0.01-15.0 | -20 ~ +40 | CE,CB,TUV-Mark,UL |
| UES200-SPAZ Series | 182.0 | 90-264 | 12.1-13.0 | 0.01-14.0 | -20 ~ +40 | CE,CB,TUV-Mark,UL |
| UES200-SPAZ Series | 190.0 | 90-264 | 13.1-14.0 | 0.01-13.5 | -20 ~ +40 | CE,CB,TUV-Mark,UL |
| UES200-SPAZ Series | 200.0 | 90-264 | 14.1-15.0 | 0.01-13.3 | -20 ~ +40 | CE,CB,TUV-Mark,UL |
| UES200-SPAZ Series | 200.0 | 90-264 | 15.1-48.0 | 0.01-12.5 | -20 ~ +40 | CE,CB,TUV-Mark,UL |
It is suitable for portable ventilators, patient monitors, diagnostic analyzers, dental equipment, aesthetic devices, and point-of-care testing (POCT) systems.
It ensures compatibility with various medical devices that have different operating voltage requirements, simplifying inventory and integration.
Yes. Its external design and high power output make it ideal for portable devices such as mobile ultrasound machines and field-use monitors.
Yes, models with certifications like IEC 60601-1 ensure compliance with international medical safety and EMC requirements.
Absolutely. Its 200W capacity and voltage flexibility make it a reliable power source for medical beauty equipment.
It depends on the model. Both fan-cooled and fanless designs are available to meet different thermal and acoustic needs.
It can be customized with standard DC plugs, DIN connectors, or locking types, based on the device interface.
Yes, OEM branding and custom output specifications are available upon request.
It's ideal for clinical, laboratory, home-care, and ambulance environments, thanks to its robust design and medical-grade reliability.
Yes, it is designed for continuous operation, offering stable output for critical devices like patient monitors or oxygen concentrators.
