Open Frame Medical Power Supply UE15-150100SPA-OP
15V Single-Output Switching Open-Frame Power Supply for Medical Devices
15W
Universal AC Input / Full Range
Protection: Short Circuit / Overload / Overvoltage
Natural Convection Cooling
Efficiency: 82% or higher at full load and half load
Description
The UE15 Series is a 15V 15W single-output switching open-frame power supply that converts AC to DC in a compact PCB-mount package. Designed for medical equipment, this series is certified as a power supply for two MOPP (Minimum Operative Protective Parts) applications compliant with the IEC 60601-1 3rd Edition standard. With no-load power consumption below 0.1W and efficiency up to 85%, this medical power supply is ideal for medical device designs aiming to reduce standby and overall power consumption.
This open-frame power supply is suitable for single-lead electrocardiographs, pulse oximeters, cholesterol detectors, human body temperature sensors, medical touchscreens, handheld scanners, and similar applications.
Safety and Compliance
Safety Standard – IEC 60601
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety standards |
| UE15-150100SPA-OP | 15 | 90-264 | 15 | 0.01-1.00 | 0~+70 | CE, UL/cUL,TUV |
RELATED APPLICATIONS
POPULAR QUESTIONS
Provides a 15V DC output with a maximum power of 15 watts.
Ideal for patient monitors, sensor modules, portable diagnostic devices, and embedded medical control boards.
This is an open-frame power supply designed for integration into medical devices.
Yes, it is possible to manufacture in compliance with the IEC 60601-1 medical device safety standard.
Yes, it is designed for internal installation with a compact PCB footprint.
Yes, it is suitable for continuous operation 24 hours a day, 365 days a year in low-power medical applications.
Yes, its low power consumption and compact size make it ideal for compact, highly portable devices.
It typically supports universal AC input ranging from 90 to 264 volts.
Yes, it includes overvoltage, overcurrent, and short-circuit protection.
Yes, it can be used as a power source for small medical displays, touchscreens, and indicator panels.
FEATURED PRODUCTS
Read More »
Medical External Power Supply UES18LCP4-SPA
Home Wall Plug Medical External Power Supply UES18LCP4-SPA 18W Switching Power Supply Home Healthcare Medical Wall Plug AC External Power Adapter 18 W 90~ 264
Medical External Power Supply UES18LCPU-SPA
Home Wall Plug Medical External Power Supply UES18LCPU-SPA 5V AC/DC Wall Adaptor Universal External Power Supply for Medical Solutions 18 W 90~ 264 Vac input
Featured Resources
October 15, 2026
Learn how to qualify a medical power supply manufacturer by evaluating certifications, quality systems, testing, traceability, OEM capability, and long-term support.
October 15, 2026
Many medical device teams pick a power supply too late in the project. They then pay for it with redesigns, failed tests, and launch delays.
October 15, 2026

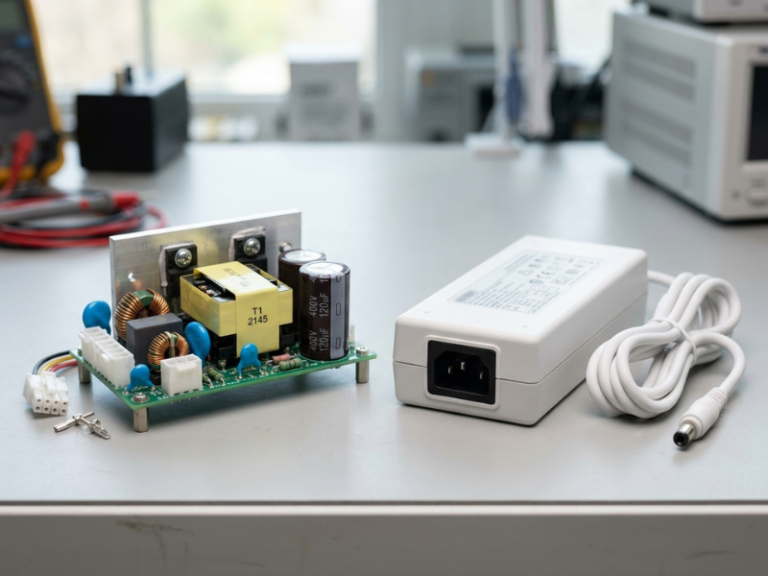

This Is Not Just a Packaging Choice Many engineers treat external vs internal medical power supplies as a packaging question. It is not. Where mains
