Introduction
As the demand for portable medical devices, high-performance laptops, and outdoor energy storage explodes, manufacturers are facing a critical challenge: finding a power adapter that is high-power, compact, globally certified, and versatile.

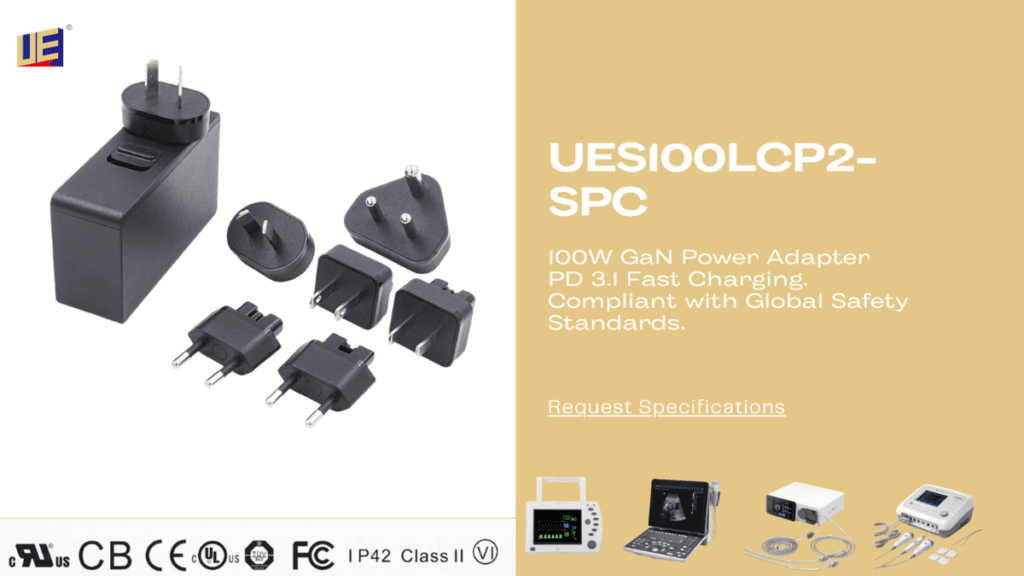

UE is proud to announce the launch of the UES100LCP2-SPC Series—a 100W GaN-based wall plug power supply. This series isn’t just a charger; it’s a standardized power solution designed for global compliance and seamless integration across medical and consumer electronics sectors.
01 | Compact Design with 100W Output
Leveraging next-generation GaN (Gallium Nitride) technology, we have significantly reduced the body size compared to traditional silicon-based power supplies.
Dimensions: 97 × 34 × 57mm
Weight: 290g ± 10g
Modular Advantage: Features an interchangeable AC plug system (US, EU, UK, AU, CN), allowing one device to adapt to global power standards instantly.
02 | 8 Hardcore Selling Points: Solving Industry Pain Points
1️⃣ Dual Medical + ITE Certification
Compliant with both IEC60601-1 (Medical) and IEC62368-1 (ITE). With 2 MOPP medical-grade isolation and leakage current ≤100μA, it ensures total safety for sensitive medical environments.
2️⃣ Level VI Energy Efficiency
Meets DoE Level VI and ErP standards. Standby power consumption ≤0.15W, with an average efficiency of up to 89% at 20V full load.
3️⃣ 5-Stage Variable Output
Covers 5V/9V/12V/15V/20V (15W to 100W). Ideal for everything from ultra-thin laptops and gaming notebooks to portable medical scanners and live-streaming equipment.
4️⃣ Universal Fast Charge Compatibility
Built-in protocol module supporting USB PD3.1, PD3.0, QC4.0+, QC3.0, and QC2.0. Manufacturers can bypass additional charging circuit R&D, significantly shortening product time-to-market.
5️⃣ Global Interchangeable Plugs
One SKU covers the world. Easy-to-swap plugs for US, EU, UK, AU, and CN markets.
6️⃣ Extreme Environment Adaptation
High Altitude: Stable operation up to 5,000 meters, perfect for mountain medical rescue and outdoor gear.
Temperature: Operating 0℃ to 40℃; Storage -40℃ to 80℃.
Humidity: 10% to 90% RH (non-condensing), suitable for cold storage or humid workshops.
7️⃣ GaN-Powered Miniaturization
The 3rd-gen GaN chip ensures lower switching loss and superior thermal dissipation, providing a competitive edge through a premium, portable form factor.
8️⃣ Comprehensive EMC Compliance
Meets both IEC60601-1-2 and EN55035 standards. It has passed rigorous tests for Conducted/Radiated Emission, ESD, Surge, and Voltage Dips, eliminating the need for further EMC rectification.
03 | Technical Specifications & Reliability
Input: 80~264V AC (Full Range)
Safety: Insulation voltage 4000VAC; Insulation resistance ≥10MΩ.
MTBF: Over 100,000 hours of stable operation at 25℃.
Certifications:
Medical: CB, UL, TÜV-SUD, CE (Standard: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 NO.60601-1).
ITE: CB, UL, CE, FCC (Standard: UL62368-1, FCC PART 15).
04 | Why Global Manufacturers Choose UE?
🚀 Standardization & Cost Efficiency: One model fits all. Reduce mold investment, minimize inventory pressure, and simplify your supply chain.
📈 Dual Product Line Synergy: Serve both medical and communication clients with a single certified solution.
🛠 Full Technical Support: We provide complete safety reports, EMC test data, and technical specifications to assist in your system-level certification.
📦 Flexible Order Support: From small-batch prototyping to massive global production, we have the capacity to support your growth.
05 | Applications
Vital signs monitors and portable ultrasound systems.
Medical infusion pumps and home therapy devices.
Oxygen concentrators and mobile diagnostic equipment.
High-end laptops and outdoor power stations.
Summary
The UES100LCP2-SPC series is the ultimate choice for manufacturers looking to export high-performance equipment. With dual certification, GaN technology, and global plug compatibility, it is ready to power the future of medical and digital technology.
📩 Ready to upgrade your power solution? Contact our sales representatives today for full specifications and samples!
