60 W
80~ 264 Vac input
0°C to +40°C temperature range
No-load power consumption < 0.15 W
2 MOPP input to output isolation
Interchangable AC pins

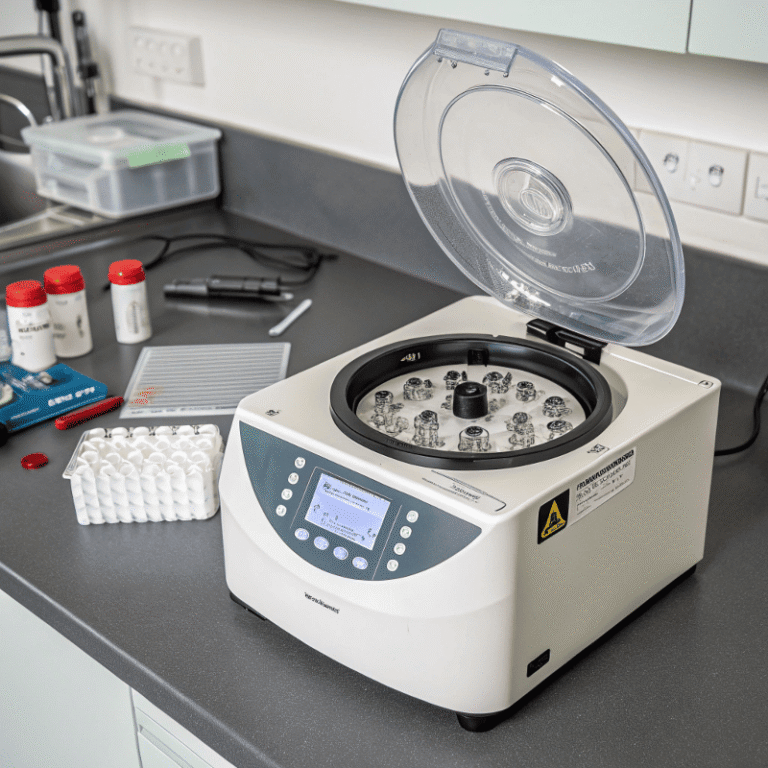

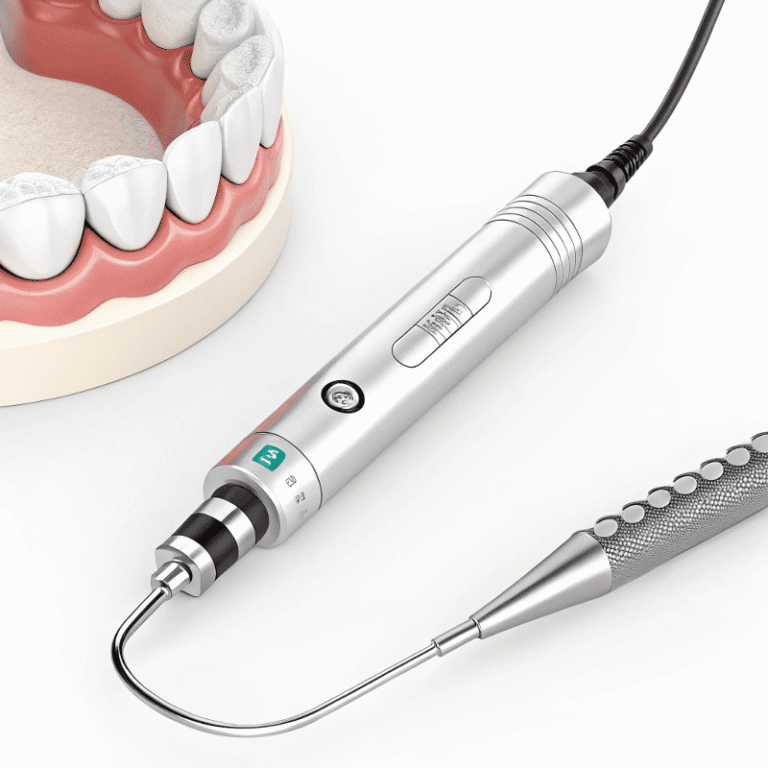

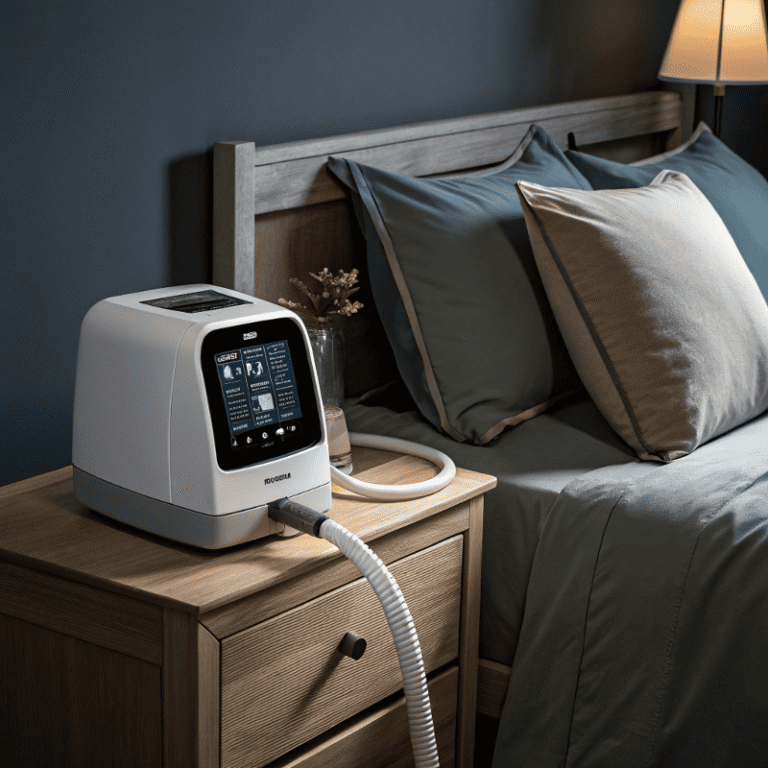

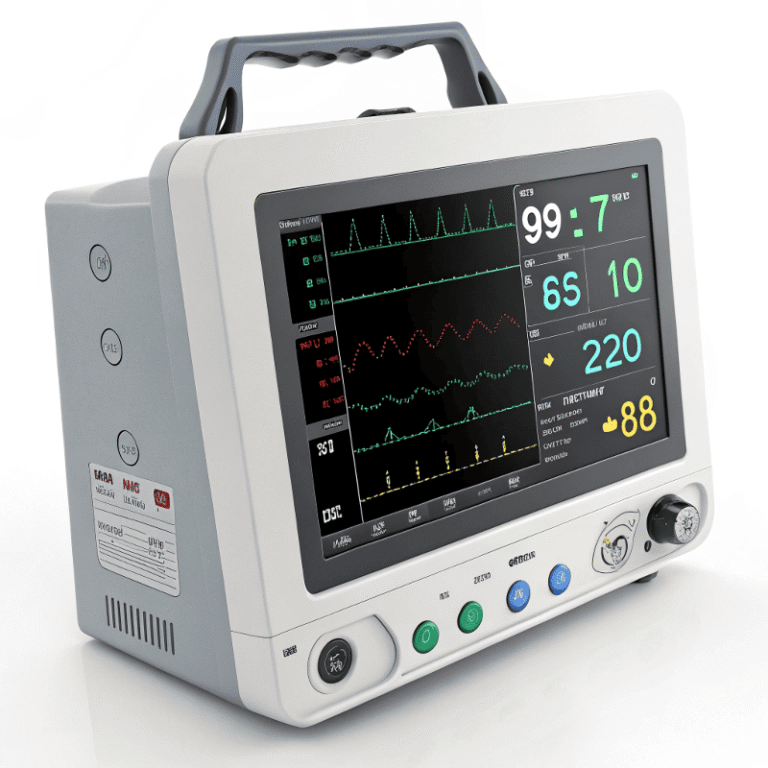

Application place: home ventilator, patient transport monitor, portable ultrasound machine, medium-sized centrifuge, ultrasonic dental scaler, muscle rehabilitation stimulator
The UES60LCP2-SPA is a 60W medical wall plug power adapter designed for portable healthcare and home medical devices that require a compact and reliable external power solution. With 12V to 24V output options, this adapter provides flexible power configurations for different medical equipment designs.
Featuring interchangeable AC plugs, the UES60LCP2-SPA can be used in different markets without changing the adapter design. The wall mount structure and fully enclosed plastic housing help save installation space while providing a convenient solution for equipment manufacturers developing portable healthcare products.
This medical power adapter is designed according to IEC 60601-1 safety requirements with 2xMOPP insulation protection, low touch leakage current ≤100μA, and Class II operation. It also supports IEC 60601-1-11 requirements for home healthcare environments, making it suitable for devices used in patient homes and mobile healthcare scenarios.
With stable output performance, low standby power consumption ≤0.15W, and multiple AC plug options, the UES60LCP2-SPA offers an easy-to-integrate power solution for portable ventilators, patient monitors, portable ultrasound systems, dental equipment, rehabilitation devices, and other personal healthcare applications.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES60LCP2-SPA | 60.0 | 80-264 | 12.0 | 0.01-5.00 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 12.1-13.0 | 0.01-4.60 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 13.1-14.0 | 0.01-4.28 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 14.1-15.0 | 0.01-4.00 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 19.0 | 0.01-3.15 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 19.1-20.0 | 0.01-3.00 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 20.1-21.0 | 0.01-2.85 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 21.1-22.0 | 0.01-2.72 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 22.1-23.0 | 0.01-2.60 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
| UES60LCP2-SPA | 60.0 | 80-264 | 23.1-24.0 | 0.01-2.50 | 0 ~ +40 | CB, CCC, CE, FCC, TUV-GS, TUV-Mark,UL |
The UES60LCP2-SPA is commonly used with portable medical devices and home healthcare equipment that require a compact external power supply. The wall plug form factor helps reduce the space needed inside the equipment design, while the interchangeable AC plug options make it easier to adapt the same power solution for different markets.
This 60W adapter is suitable for applications such as home ventilators, patient transport monitors, portable ultrasound systems, dental equipment, centrifuges, and rehabilitation devices where stable DC power and medical safety compliance are required.
Many medical device manufacturers, engineers, products manager will have different problem for medical grade power supplies. The below popular questions maybe is you deal with problems’ best answer.
It is suitable for CPAP machines, portable ventilators, multi-parameter monitors, handheld ultrasound systems, and dental equipment like LED lights or ultrasonic scalers.
Yes, it can be designed to meet IEC 60601-1 and IEC 60601-1-2 medical safety and EMC standards.
It allows compatibility with a wide range of medical devices that operate on either 12V or 24V systems, offering flexibility to OEMs and system integrators.
It includes over-voltage, over-current, short-circuit, and over-temperature protections to ensure device and patient safety.
Yes, its compact and safe design makes it ideal for both clinical and home-use medical devices.
Yes, it can be configured with 2xMOPP protection for use in patient-connected applications.
Absolutely. Output plug types, cable lengths, labels, and housing colors can be customized to meet specific device requirements.
Yes, it supports 100–240V AC input, suitable for worldwide use with proper regulatory approvals.
Yes, the external and lightweight design is ideal for portable equipment like transport monitors or therapy units.
They reduce internal device heat, improve safety by physical isolation, and are easier to replace or upgrade.
UE medical power supply has many different power supplies that can all be chosen from. If you are interested in a medical power solution or are looking for help, please feel free to contact us.
