6 W
90~ 264 Vac input
4.2 ~ 12 Vdc output options
0°C to +45°C temperature range
No-load power consumption < 0.075 W
2 MOPP input to output isolation
interchangable AC pins
Waterproof grade of IP22
The UES06WNCP1-SPA series is a medical wall plug AC to DC external 6W power supply with interchangeable AC pins, designed for home healthcare applications. It offers multiple output options, including 4.2V, 5V, 9V, and 12V, among other voltages (coming with a universal input of 80~264VAC), to cater to various medical devices. This power supply feature adheres to the stringent safety standards of IEC 60601-1 3.1 Edition for 2 x MOPP applications and the 4th Edition EMC requirements, ensuring class II operation. Featuring compact size, Level VI efficiency, and different construction, these medical power supplies are a continuation of initiatives to provide customers with global solutions for pulse oximeters, BP monitors, handheld ECGs, TENS units, nebulizers, dental LED lights, this power supply provides a wide selection of AC plugs and DC connectors to ensure compatibility with your specific devices and equipment.
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE, UL/cUL,TUV
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety standards |
|---|---|---|---|---|---|---|
| UES06WNCP1-SPA | 5.04 | 90-264 | 4.2 | 0.01-1.20 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 5.0-6.0 | 0.01-1.00 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 6.1-7.0 | 0.01-0.86 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 7.1-8.0 | 0.01-0.75 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 8.1-8.9 | 0.01-0.67 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 9.0-10.0 | 0.01-0.60 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 10.1-11.0 | 0.01-0.54 | 0~+45 | CE, UL/cUL,TUV |
| UES06WNCP1-SPA | 6.00 | 90-264 | 11.1-12.0 | 0.01-0.50 | 0~+45 | CE, UL/cUL,TUV |
Many medical device manufacturers, engineers, products manager will have different problem for medical grade power supplies. The below popular questions maybe is you deal with problems’ best answer.

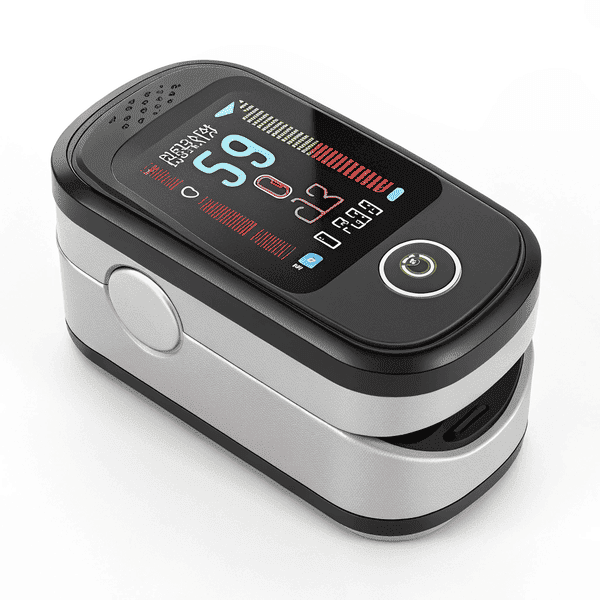

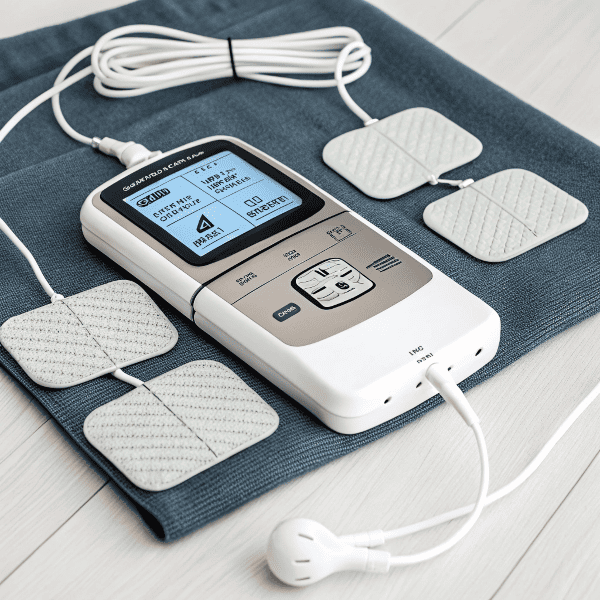

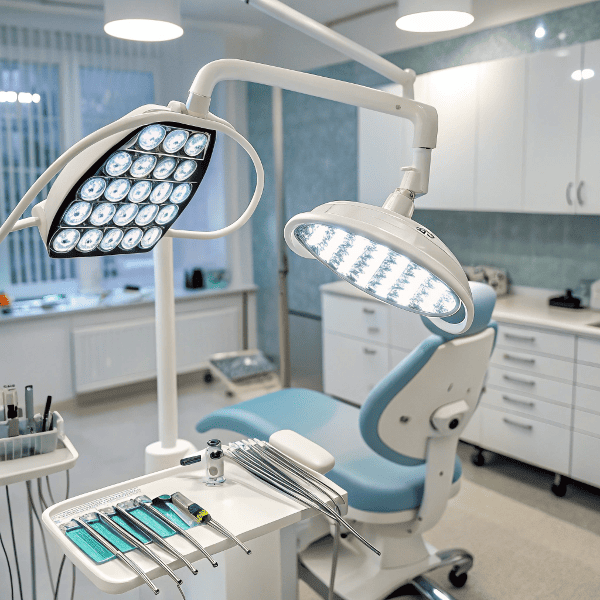

Ideal for low-power medical devices like pulse oximeters, BP monitors, handheld ECGs, TENS units, nebulizers, dental LED lights, and portable therapy devices.
No. Fixed output only. Available in 4.2V, 5V, 6V, 9V, or 12V options.
Yes. Versions with IEC 60601-1 & 60601-1-2 compliance are available upon request.
Includes over-voltage, over-current, short-circuit, and over-temperature protection.
US, EU, UK, AU, and interchangeable plug versions are all supported.
Yes. Output cable length, DC jack type, and labels are customizable.
Yes. Complies with DOE Level VI or EU CoC Tier 2, depending on region.
Yes. Designed for reliable performance in continuous low-power operation.
Yes. Medical EMC (IEC 60601-1-2) versions are available upon request.
Common sizes like 5.5×2.1mm, 5.5×2.5mm, or customer-specific types are supported.
UE medical power supply has many different power supplies that can all be chosen from. If you are interested in a medical power solution or are looking for help, please feel free to contact us.
