UES65LZ2-SPC
A compact medical wall mount power supply designed for home healthcare equipment, offering flexible installation options and reliable external power integration for patient care devices.
The UES65LZ2-SPC series provides a 65W medical power platform with configurable output options for different healthcare device requirements.
The available voltage configurations allow engineers to select the appropriate power level according to their equipment design, while the same mechanical platform can support different application needs.
| Model Number | Power(W) | Input Voltage Range(VAC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
| UES65LZ2-SPC | 15 | 80-264 | 5 | 0.01-3.00 | 0~+40 | BSMI, CB, CCC, CE, cULus, FCC, KC, NOM, NRTL, PSE, RCM, TUV-GS, TUV-Mark |
| UES65LZ2-SPC | 27 | 80-264 | 9 | 0.01-3.00 | 0~+40 | BSMI, CB, CCC, CE, cULus, FCC, KC, NOM, NRTL, PSE, RCM, TUV-GS, TUV-Mark |
| UES65LZ2-SPC | 36 | 80-264 | 12 | 0.01-3.00 | 0~+40 | BSMI, CB, CCC, CE, cULus, FCC, KC, NOM, NRTL, PSE, RCM, TUV-GS, TUV-Mark |
| UES65LZ2-SPC | 45 | 80-264 | 15 | 0.01-3.00 | 0~+40 | BSMI, CB, CCC, CE, cULus, FCC, KC, NOM, NRTL, PSE, RCM, TUV-GS, TUV-Mark |
| UES65LZ2-SPC | 65 | 80-264 | 20 | 0.01-3.25 | 0~+40 | BSMI, CB, CCC, CE, cULus, FCC, KC, NOM, NRTL, PSE, RCM, TUV-GS, TUV-Mark |
The UES65LZ2-SPC adopts a wall mount form factor designed for medical equipment where installation space and cable arrangement need to be considered.
Compared with traditional desktop adapters, the wall-mounted structure helps reduce external wiring requirements and provides a cleaner integration approach for home healthcare devices and portable medical equipment.
The interchangeable plug design also allows equipment manufacturers to configure the same power platform for different regional markets.
Dimensions
Weight
90.5 × 58.5 × 33.5mm
220g
The UES65LZ2-SPC supports a wide AC input range, allowing the same power supply platform to be used for medical equipment developed for different regions.
For manufacturers supplying healthcare devices globally, a universal input design helps simplify power selection and reduces the need for separate regional power versions.
Input Voltage Range
Frequency Range
Input Current
Inrush Current (max)
Touch Leakage Current
80-264VAC
47–63Hz
2A max at 80VAC
100A max at 240VAC cold start
≤100μA at 264VAC
The UES65LZ2-SPC is designed for healthcare applications where operating conditions may vary depending on the installation environment.
The defined temperature, humidity and altitude ratings help engineers evaluate whether the external power solution matches the expected working conditions of the final medical device.
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
MTBF
0°C to +40°C
-40°C to +80°C
10–90% RH, non-condensing
5% to 90% RH
5,000m
>100,000hrs (Telcordia SR-332 @25℃)
The UES65LZ2-SPC integrates protection functions to help safeguard both the power adapter and connected equipment during abnormal operating conditions.
For medical device applications, built-in protection helps improve system reliability and reduces the additional design effort required for external protection circuits.
Overload
Over Voltage
Short Circuit
105-140% rated output power, auto recovery
110-130% rated output voltage, input reset
Trip and restart (hiccup mode)
The UES65LZ2-SPC series is designed for medical equipment applications requiring reliable electrical isolation and compliance with international safety requirements.
With medical-grade isolation and certified safety approvals, the adapter helps equipment manufacturers simplify power supply selection during medical device development and certification.
IEC60601-1
ANSI/AAMI ES60601-1
EN60601-1
| Item | Standard |
|---|---|
| Safety Agency / Mark | CB |
| Medical Standard | IEC60601-1 |
| Safety Agency / Mark | UL |
| Medical Standard | ANSI/AAMI ES60601-1 |
| Safety Agency / Mark | TÜV-SÜD / Mark |
| Medical Standard | EN60601-1 |
The UES65LZ2-SPC series is designed to meet electromagnetic compatibility requirements for medical and electronic equipment applications.
For healthcare devices using sensitive electronic circuits, EMC performance is an important consideration during system integration. The compliance data helps engineers evaluate potential interference risks during product certification and verification.
| Category | Test Item | Medical | ITE |
|---|---|---|---|
| Emission | Conducted Emission | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Emission | Radiated Emission | IEC/EN60601-1-2, CISPR 11 | EN55032, CISPR 32 |
| Emission | Harmonic Current | EN61000-3-2 Class A | EN61000-3-2 Class A |
| Emission | Voltage Flicker | EN61000-3-3 | EN61000-3-3 |
| Immunity | ESD | IEC61000-4-2 | — |
| Immunity | Radiated Immunity | IEC61000-4-3 | — |
| Immunity | EFT/Burst | IEC61000-4-4 | — |
| Immunity | Surge | IEC61000-4-5 | — |
| Immunity | Conducted Immunity | IEC61000-4-6 | — |
| Immunity | Magnetic Field | IEC61000-4-8 | — |
| Immunity | Voltage Dips & Interruptions | IEC61000-4-11 | — |
The UES65LZ2-SPC is designed for healthcare equipment requiring a compact external power solution with flexible output options.
The wall mount structure and interchangeable plug design make it suitable for home healthcare devices and portable medical equipment where space, installation flexibility and reliable power delivery are important considerations.
Selecting an external medical power supply involves more than checking the output wattage. Engineers need to consider voltage compatibility, output configuration, mechanical design, regional plug requirements and how the adapter will integrate with the final healthcare device.
The following questions address common design and selection considerations when evaluating the UES65LZ2-SPC 65W medical wall mount power supply.
The UES65LZ2-SPC supports up to 65W output power with a maximum 20V/3.25A output configuration. Before selecting the adapter, you should confirm your equipment’s required voltage and current consumption to ensure the power rating matches the application.
The UES65LZ2-SPC supports multiple output options, including 5V, 9V, 12V, 15V and 20V configurations.
This allows equipment manufacturers to select a suitable voltage version for different healthcare devices instead of redesigning the power solution for each application.
You should always match the adapter output voltage with the equipment requirements. The UES65LZ2-SPC provides multiple voltage options, but the selected version needs to correspond with your device input specification, connector requirement and operating conditions.
Yes. The UES65LZ2-SPC supports interchangeable AC plug options, helping manufacturers use the same power platform for different regions.
This design can simplify product development when medical equipment is planned for multiple markets with different AC plug standards.
The USB port version provides a more flexible connection method for equipment using a standard USB interface, while the fixed cable option can provide a more dedicated connection between the adapter and the device.
The suitable choice depends on your equipment design, connector requirements and intended user environment.
The wall mount design makes it suitable for home healthcare devices where compact installation and easy external power connection are important.

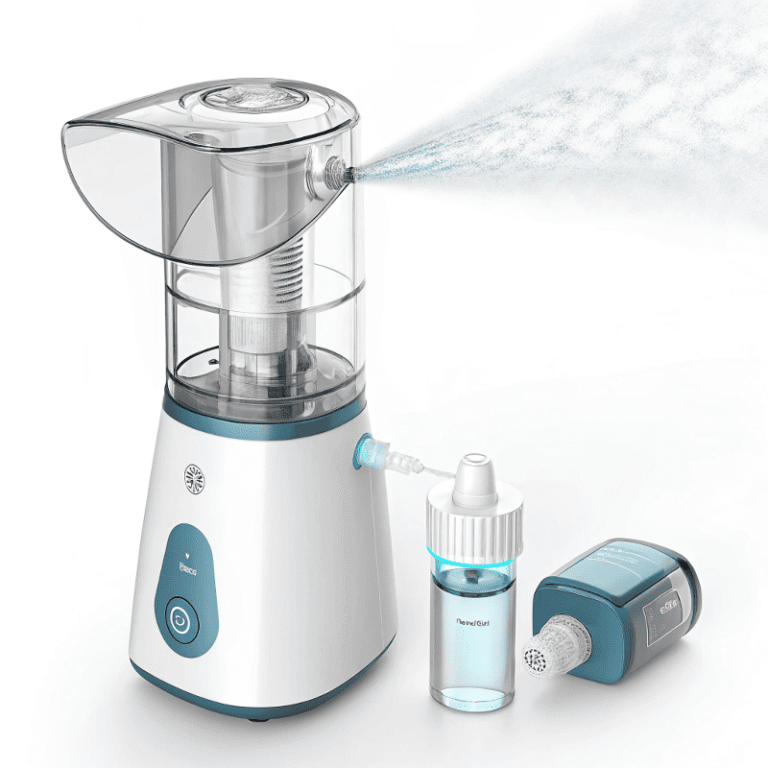

Typical applications include oxygen concentrators, sleep monitoring equipment, nebulizers and other portable healthcare devices requiring an external AC-DC power solution.
Before replacing an existing adapter, you should compare several parameters including output voltage, maximum current, connector type, polarity, mechanical fit and safety requirements.
Matching only the wattage is not enough because a power supply with the wrong voltage or connector may not operate correctly with the equipment.
The UES65LZ2-SPC provides configurable options including output voltage versions, plug configurations and output connection choices.
For equipment manufacturers with specific mechanical or electrical requirements, the available configuration options can help adapt the power solution to different product designs.
Explore related medical power supply solutions designed for different healthcare equipment requirements. From compact wall mount adapters to desktop medical power supplies, these products provide different form factors, output configurations and integration options to help engineers select the right external power solution for their device design.
Learn more about medical power supply selection, output compatibility and safety requirements through these technical resources. These articles help engineers evaluate external power solutions for healthcare equipment, from choosing the correct power rating to understanding adapter compatibility and certification considerations.
Replacing an existing medical equipment adapter requires more than comparing the wattage rating. This article explains how output voltage, current capability and device compatibility affect power supply replacement decisions, helping engineers select a suitable external adapter without risking equipment performance.

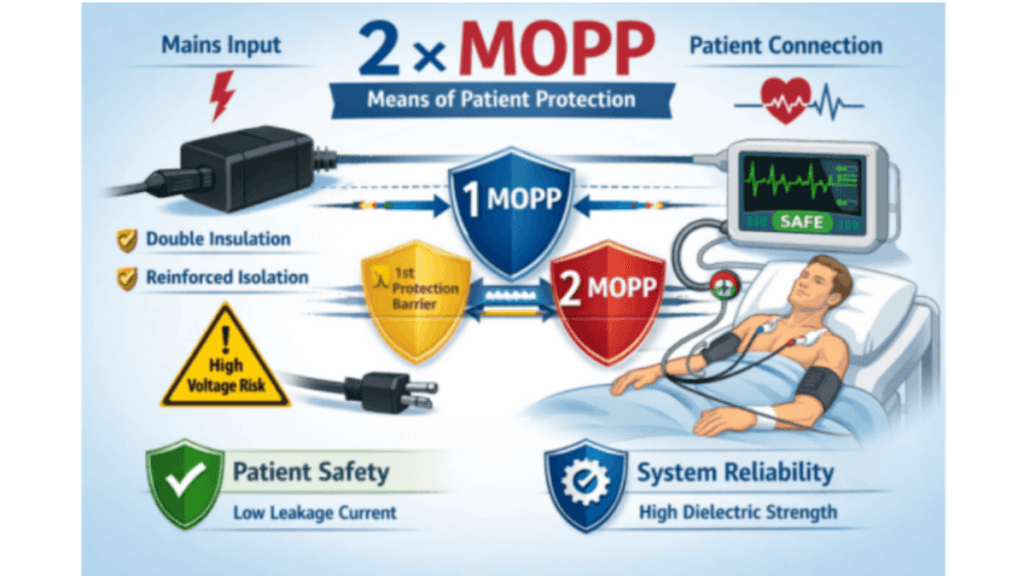

Isolation requirements are an important consideration when integrating power supplies into medical equipment. This article explains the role of 2 x MOPP protection and why it matters for patient safety and medical device compliance.
