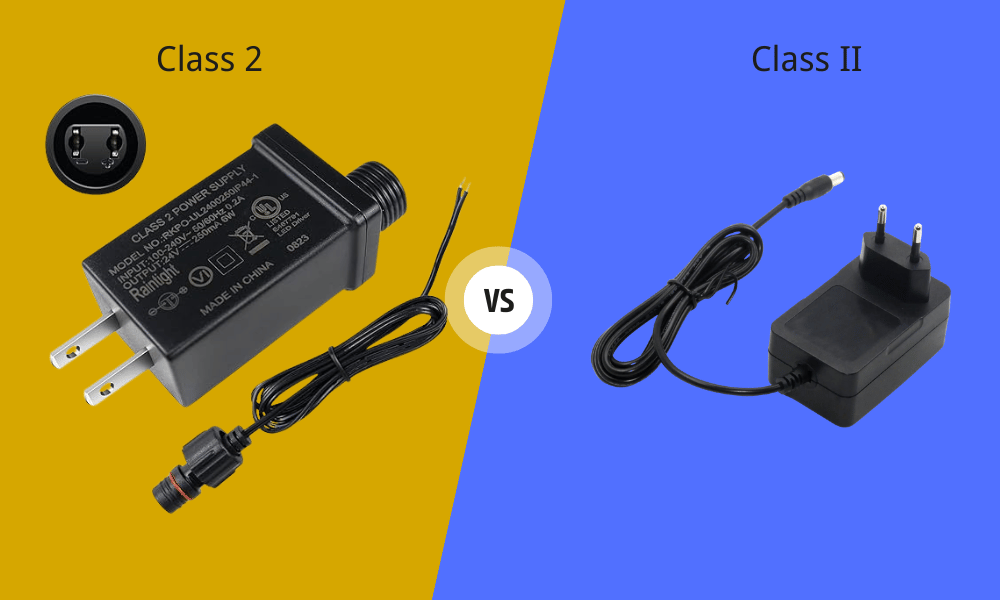

At first glance, “Class 2” and “Class II” look like the same label written two different ways. They aren’t. These terms describe two completely separate safety standards, and confusing them is one of the most common mistakes in power supply selection.
One of these standards limits the amount of energy a supply can deliver, thereby controlling the risk of fire and electric shock at the output. The other defines how a device is built inside, using insulation to protect users from high-voltage faults. Mix them up, and you risk design errors, failed inspections, costly rework, or a product that simply isn’t safe.
This guide clears up the confusion. You’ll get plain definitions of each standard, a side-by-side comparison, the compliance details that matter, and a practical way to choose the right supply for your project.

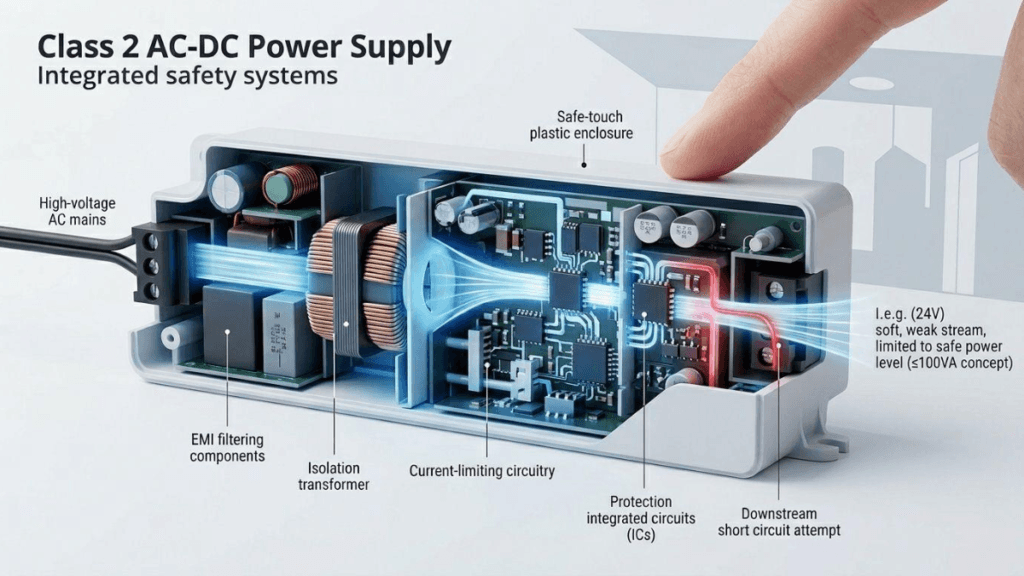

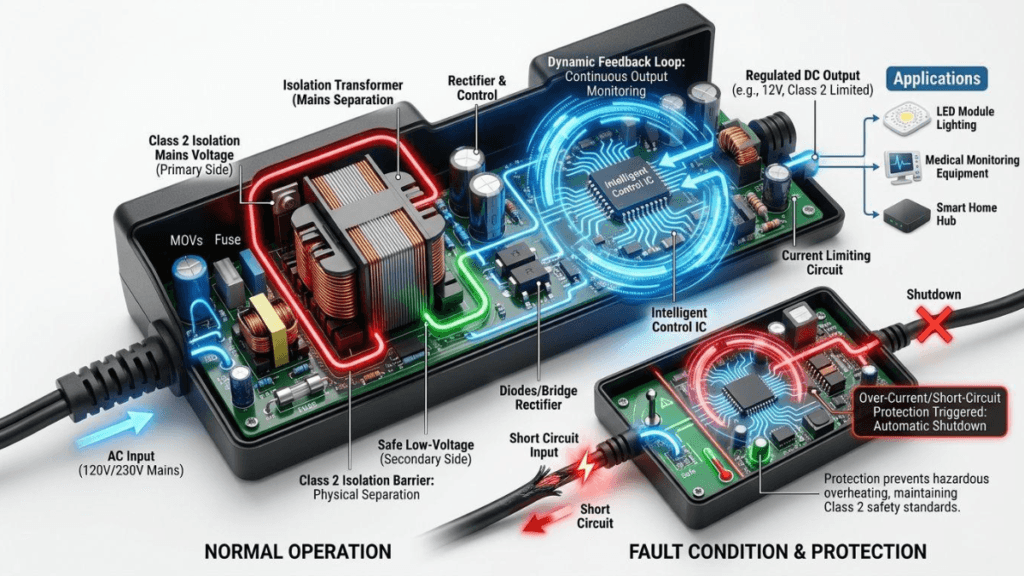

What Is a Class 2 Power Supply?
A Class 2 power supply is defined by UL 1310 in the United States and referenced throughout the National Electrical Code (NEC). The whole point of this classification is energy limitation.
A Class 2 supply caps its output power to reduce the risk of fire and electric shock at the load. The limits are specific: a maximum of 100 VA, with voltage caps around 60V DC or 30V AC under typical conditions. Because the available energy remains low, ignition is far less likely, even if a downstream fault occurs.
That low-energy ceiling brings a major practical benefit. Class 2 circuits often qualify for simpler, lower-cost wiring methods, since the code treats them as inherently safer than full-power circuits. You can frequently skip conduit and heavy-gauge conductors that higher-energy circuits demand.
Class 2 closely overlaps with the limited power source (LPS) concept, and you’ll often see the two referenced together in datasheets.
Common Class 2 devices include:
- LED drivers
- Thermostats
- Low-voltage lighting systems
- Doorbells, alarm panels, and similar low-energy controls
Takeaway: Class 2 is about what the supply can deliver. It limits output energy to keep installations safe and wiring simple.

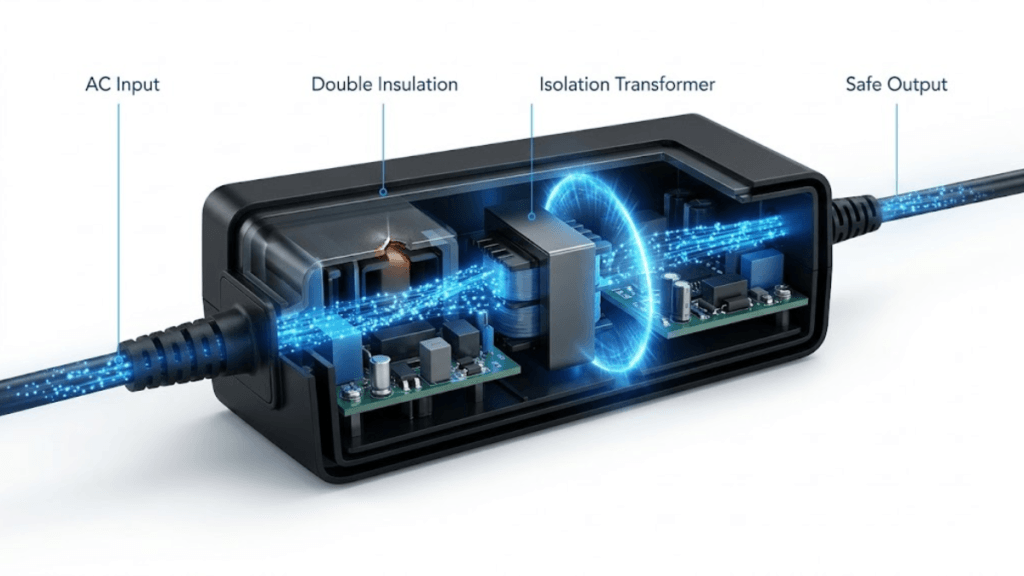

What Is a Class II Power Supply?
A Class II power supply (written in Roman numerals) is part of the IEC protection class system. Here, the focus is on insulation, not output power.
The defining trait of Class II is that it does not rely on a safety earth connection. There’s no third grounding prong doing the protective work. Instead, the device protects the user through its construction.

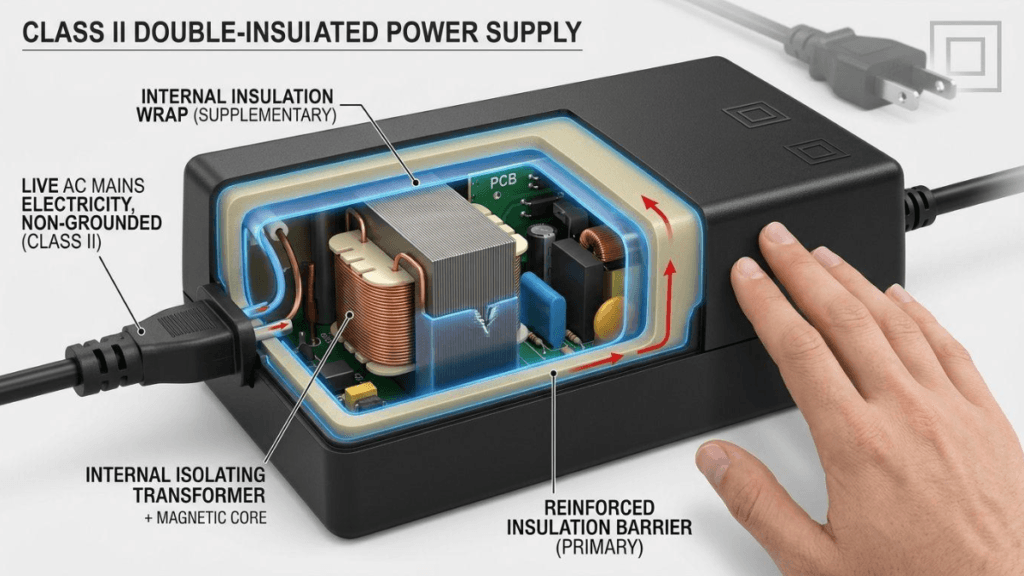

That construction uses double or reinforced insulation, typically two independent layers that separate you from any energized part. If one layer fails, the second still stands between the user and live voltage. Inside, you’ll find:
- Separated primary and secondary circuits
- Reinforced insulation barriers between mains and output
- Often, a plastic enclosure with no exposed grounded metal
This design shines in environments where a reliable ground connection is hard to guarantee or maintain. The insulation protects, regardless of the outlet’s grounding quality.
You can spot a Class II device by its required marking: the square-within-a-square (concentric square) symbol.
Takeaway: Class II is about how the supply is built. It uses layered insulation to protect users without depending on a ground wire.
Key Differences in Practice
Once you understand the focus of each standard, the differences fall into place.
- What they protect: Class 2 protects the output circuit by limiting energy. Class II protects the input side and enclosure through insulation.
- They aren’t mutually exclusive: A single supply can be Class 2, Class II, both, or neither. The standards govern different things, so they stack independently.
- Geographic scope: Class 2 is primarily a North American installation standard tied to UL and the NEC. Class II is an international safety design standard from the IEC.
- Physical clues: A Class II device often uses a two-wire (two-prong) cord because it needs no earth connection. A Class 2 unit is identified by its voltage and current ratings rather than its plug.
- Internal construction: Class II emphasizes insulation and isolation. Class 2 emphasizes output limiting and protective circuitry that holds power below the threshold.
You might assume a “Class 2” label tells you something about insulation. It doesn’t. The two answer entirely different safety questions.
Safety, Compliance, and Regulatory Standards
Both classifications live inside a wider web of standards and certifications. Knowing the landscape keeps your product compliant and your inspections smooth.
The key players:
- NEC and UL 1310 govern Class 2 in North America.
- IEC protection class II defines the insulation requirements.
- CSA approvals cover the Canadian market.
- LPS conformity often accompanies Class 2 limited power claims.
These standards feed directly into fire safety regulations, building codes, and product certification. Getting them right early avoids expensive surprises late.
How to read labels and datasheets
When you evaluate a supply, check both the physical label and the datasheet:
- Look for the concentric square symbol to confirm Class II.
- Check for references to UL 1310, LPS, or “limited power source” to confirm Class 2.
- Watch for phrases like “designed with Class II insulation” or specific VA and voltage limits that signal Class 2 compliance.
Special environments and costs
Specialized settings raise the bar. Medical facilities and industrial plants frequently layer additional requirements on top of these baseline standards, so verify the rules for your specific application.
Keep in mind that certification choices ripple into your budget. Each standard you target adds testing, documentation, and development cost, so scope your compliance plan before the design freeze.
Wiring and Installation Considerations
The classification you choose changes how the supply gets wired and installed.
Class II supplies commonly use a two-wire cord rather than a three-wire cord, since they do not require a safety earth. That simplifies the cable but doesn’t remove your other obligations.
Even without grounding, installers must still meet conductor sizing, ampacity, and derating requirements. The wire has to carry the current safely under real-world conditions. Overcurrent protection remains mandatory regardless of class.
Class 2 brings its own installation advantage. Because output power stays limited, the code often permits smaller wire sizes and simpler routing, which cuts both material and labor cost.
Whatever you choose, follow the product datasheet, the National Electrical Code, and your local regulations. Compliance is never optional, and local rules sometimes go beyond the national baseline.
Why the Distinction Matters for Your Project
This isn’t academic hair-splitting. The right classification affects cost, portability, and compliance in concrete ways.
- Cost savings. Choosing a Class 2 supply can lower total system cost by reducing wiring and conduit requirements. The energy limit does the safety work, so the installation gets cheaper.
- Portability. Class II designs are a natural fit for consumer gear like laptop chargers and power tools. No ground pin means a lighter, simpler cord and easier use across different outlets.
- The costly assumption. Never assume a “Class 2” label means “Class II,” or the reverse. They are different standards covering different risks. Treating them as interchangeable can lead you to specify the wrong part and discover the problem during inspection.
- Conduit and installation. Choosing a non-Class 2 supply may force expensive protective conduit or professional electrical installation that a Class 2 part would have avoided.
Quick label checklist
Before you commit, scan the power brick for:
- The concentric square symbol (Class II insulation)
- A UL 1310 or LPS reference (Class 2 limited power)
- Stated VA, voltage, and current limits matching your spec
- The cord type (two-wire vs. three-wire) you expect
If the label doesn’t confirm what your design needs, treat it as a red flag.
Frequently Asked Questions
Is a Class 2 power supply always safer than a Class 1 power supply?
Not in a blanket sense. They manage risk differently. A Class 2 supply limits the output energy to reduce the risk of fire and electric shock, while a Class 1 device relies on a protective earth connection. “Safer” depends on the application and how the device is installed and used. Each approach is appropriate in different contexts.
Can a power supply with a three-prong plug still be rated as Class 2?
Yes. Class 2 describes the limited output of the supply, not its plug or grounding. A unit can carry a three-prong cord and still meet Class 2 output limits. The plug indicates the protection class approach, not the Class 2 energy rating.
Why do LED drivers so often require Class 2 ratings?
LED lighting systems benefit directly from Class 2’s energy limits. The low-power output reduces fire risk and allows simpler, cheaper low-voltage wiring, which suits the distributed nature of LED installations. That combination of safety and installation savings makes Class 2 a frequent requirement.
Do international markets recognize the U.S. “Class 2” designation?
Not universally. Class 2 is rooted in UL 1310 and the NEC, which are North American standards. International markets often look instead to IEC concepts such as limited power source (LPS) or IEC protection classes. For global products, confirm which standard each target market expects.
Can a power supply be both Class 2 and Class II at the same time?
Yes. The two standards govern different things, so they coexist freely. A supply can limit output energy (Class 2) while also using double or reinforced insulation that needs no ground (Class II). Many compact consumer supplies meet both.
Can a Class II power supply still deliver high voltage or high power output?
Yes. Class II only describes the insulation strategy, not the output level. A Class II supply can deliver substantial voltage or power, provided its construction maintains the required insulation between the user and energized parts. The classification says nothing about output limits.
Choosing the Right Classification for Your Application
The core split is simple once you see it. Class 2 limits output energy to control fire and shock risk, while Class II eliminates the need for a ground wire through layered insulation. One governs what the supply delivers; the other governs how it’s built.
Your decision comes down to your goal. If you need to limit output power and simplify wiring, look to Class 2. If you need to protect users without depending on an earth connection, look to Class II. Many small electronics lean on Class 2 limits, while many appliances and chargers rely on Class II insulation.
Before any installation, verify the UL or IEC markings directly on the hardware. Then check your local building codes to confirm whether Class 2 certified components are required for compliance. A few minutes of verification now prevents an expensive failure later.
