A DC 5V power supply refers to a device or system that delivers a constant direct current (DC) voltage of 5 volts. This type of power supply is commonly used to power various electronic devices and circuits, particularly in low-power applications. Below are the key aspects of a DC 5V power supply:
In addition to understanding what a DC 5V power supply is, it’s important to recognize the concept of a DC 5V charger (or “5VDC charger”). A DC 5V charger is a type of power adapter designed specifically to supply a steady direct current of 5 volts to charge or power electronic devices such as smartphones, tablets, Bluetooth speakers, and other USB powered equipment. These chargers convert higher voltage alternating current (AC) from a wall outlet or other source into regulated 5V direct current (DC) suitable for device charging.
Key Features
- Output Voltage: Provides a stable output of 5 volts DC.
- Power Source: Can derive input power from various sources like AC mains, batteries, or solar panels.
- Voltage Regulation: Ensures consistent 5V output even if input voltage or load conditions change.
- Compact Size: Many DC 5V power supplies are small, making them ideal for portable or space-constrained applications.
Types of DC 5V Power Supplies

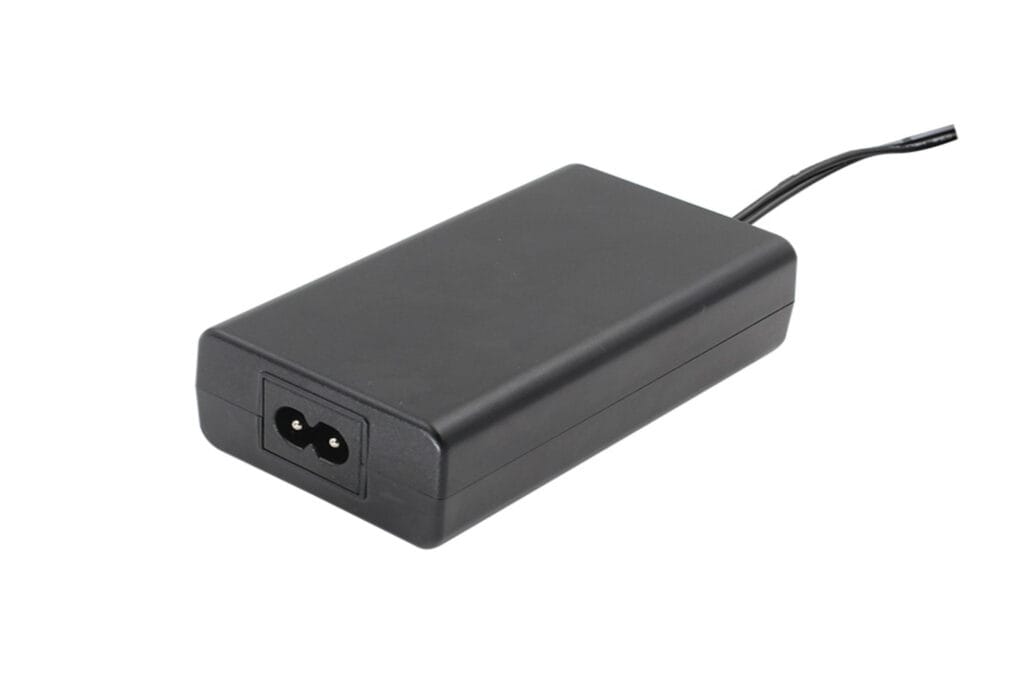

- AC-to-DC Adapters: Convert alternating current (AC) from wall outlets to 5V DC.
- USB Power Supplies: Use USB ports to deliver 5V DC, standard in many devices like chargers.
- Battery-Based Supplies: Use batteries to generate 5V DC, often through step-up or step-down converters.
- DC-DC Converters: Step up or step down other DC voltage levels (e.g., 12V to 5V) for specific applications.
DC 5V Power Supply vs. DC 5V Charger:
Although a DC 5V power supply and a DC 5V charger both provide 5V output, a charger typically includes additional circuitry for battery charging management and safety protections such as over charge, over current, and short circuit protection. A power supply may simply provide the 5V output without dedicated charging control functions, whereas a charger is specifically engineered to safely and efficiently charge devices’ batteries.
Applications
- Consumer Electronics: Commonly used in smartphones, tablets, and other portable devices through USB chargers.
- Embedded Systems: Powers microcontrollers, sensors, and modules in IoT and automation projects.
- LED Lighting: Supports LED strips and small LED fixtures.
- Networking Devices: Found in routers, switches, and modems.
- Medical Devices: Provides power to small diagnostic tools and wearables.
- Toys and Gadgets: Often used in RC cars, drones, and similar products.
Typical DC 5V Charger Use Cases:
DC 5V chargers are widely used to power mobile devices and accessories that require regulated 5V input. Common use scenarios include charging smartphones and tablets via USB, powering USB enabled IoT devices, running USB LED lighting, and supplying 5V routers or networking modules. Many modern gadgets depend on 5V USB charging standards to ensure compatibility and safety.
Advantages
- Versatility: Suitable for a wide range of devices.
- Efficiency: Modern power supplies are designed to minimize energy loss.
- Portability: Many 5V supplies are compact and lightweight.
Safety Considerations
- Use power supplies that comply with international safety standards.
- Ensure compatibility with your device’s power requirements to avoid damage.
- Check for proper insulation and protections like short-circuit or overcurrent protection.
Identifying a 5V DC Charger:
To confirm whether a charger is a true 5V DC charger, check the label on the device. Most chargers will list “Output: 5V DC” along with the amperage rating (for example, 5V/1A or 5V/2A). The direct current symbol next to the voltage indicates DC output. Additionally, standard connectors like USB A or USB C are commonly used for 5V chargers, making them easy to identify
The DC 5V power supply is ubiquitous in modern technology due to its standardization and suitability for small-scale, low-power applications.
