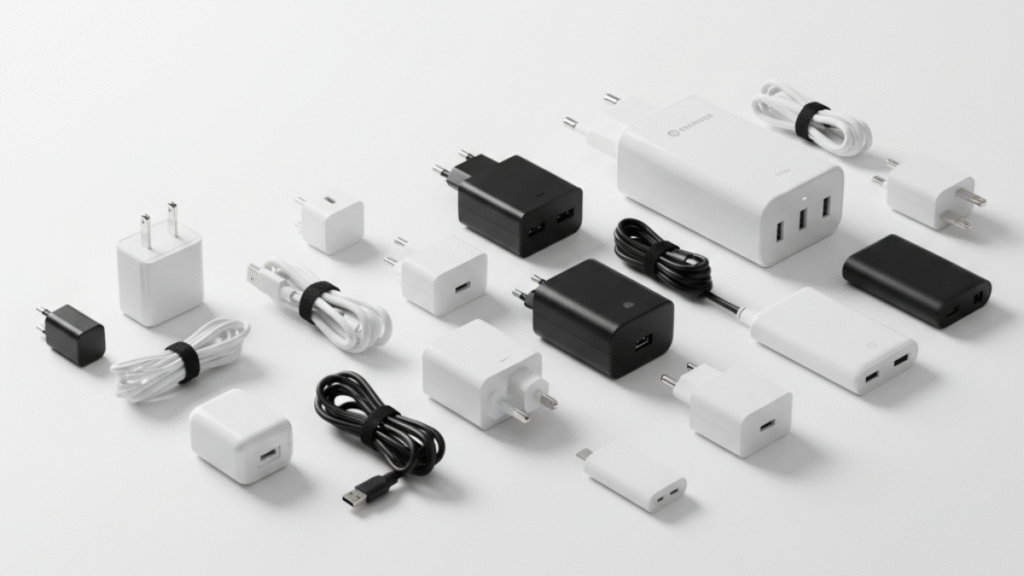

Ultimate Guide to Choosing the Right Power Adapter
Power adapters have evolved through continuous technological updates, resulting in many different types, standards, and functions. While these innovations improve efficiency and safety, they also make it harder for users to choose the correct adapter.
Selecting the wrong adapter may lead to unstable operation, device restart, overheating, or even permanent equipment damage.
This ultimate guide to power adapter selection explains how to choose the right AC DC power adapter, ensuring your device operates safely and reliably for years.
What is a power adapter?
A power adapter, also known as an AC DC power supply, converts high-voltage AC electricity from the power grid into low-voltage DC power required by electronic devices.
Most modern electronic products — including medical devices, communication equipment, LED systems, and industrial electronics — rely on stable DC power.
Their internal components such as microcontrollers, IC chips, sensors, and processors require precise voltage and unidirectional current to function correctly.
AC electricity from the grid constantly alternates direction and voltage.
Without a regulated power adapter, this unstable power would damage sensitive electronic circuits.
Therefore, a reliable external power adapter is essential to ensure stable device performance.
Types of power adapters
Power adapters can be classified in several ways depending on structure and application.
Structural Types
Common structural types include:
- Linear power adapters
- Switching power adapters
- Wall plug power adapters
- Desktop power adapters
- Open frame power supplies
- Built-in power modules
Linear adapters use a traditional transformer to step down voltage before rectification.
They are simple but bulky and inefficient.
Today, most devices use switching power adapters, which convert AC to high-voltage DC and then regulate it through high-frequency switching technology.
Application-Based Types
Depending on application, power adapters include:
- Industrial power supplies
Among these categories, medical power supplies require the strictest safety standards due to patient safety requirements.

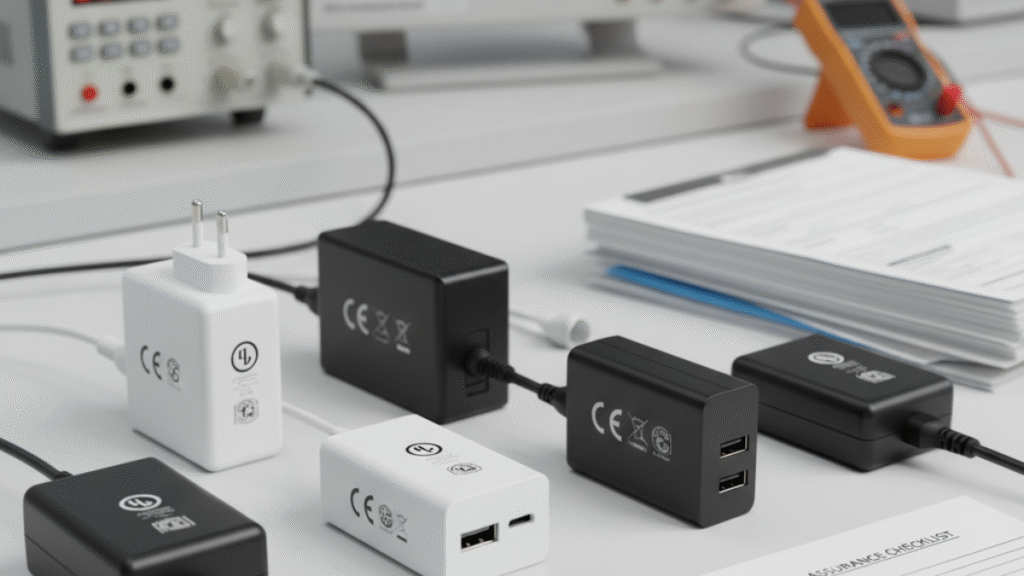

The certifications and safety standards of the power adapter
Before selecting a power adapter, it is important to determine which safety certification standards your equipment requires.
Different applications must comply with different international standards.
For example:
- IEC 60601-1 – medical equipment power supplies
- IEC 61347-1 – LED lighting power drivers
- IEC 62368-1 – IT and communication equipment
These standards are developed by International Electrotechnical Commission.
In addition to safety requirements, most countries also require certifications covering:
- Electrical safety
- EMC (electromagnetic compatibility)
- Environmental compliance
For equipment sold in North America, many power adapters also require certification from UL.
Choosing a certified power adapter manufacturer ensures compliance with global regulatory requirements.

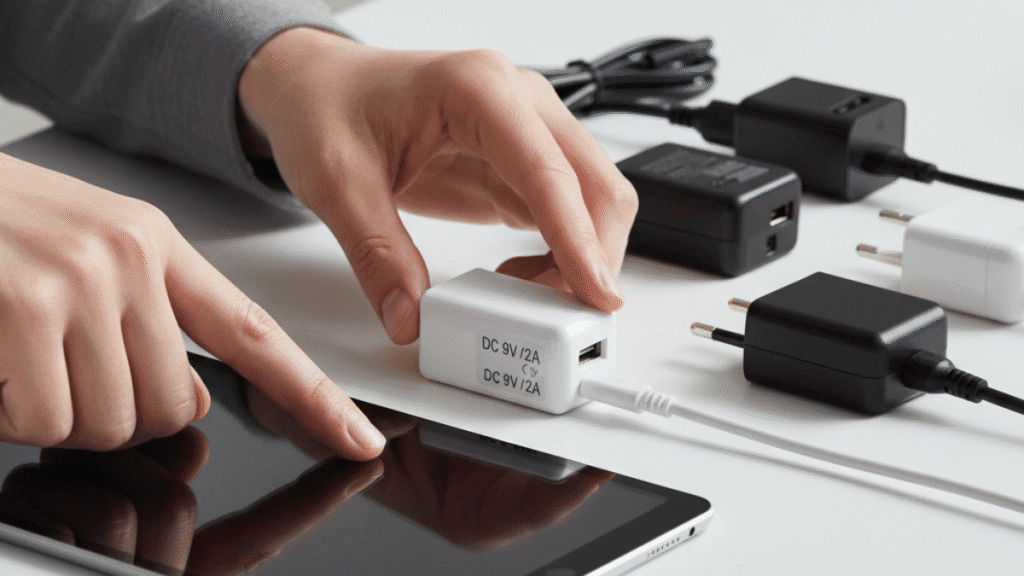

How to choose the appropriate voltage and current of a power adapter
Selecting the correct voltage and current rating is one of the most important steps when choosing a power adapter.
Voltage
The output voltage of the adapter must match the device voltage exactly.
If the voltage is too high, the device may suffer permanent circuit damage.
If the voltage is too low, the device may fail to start or operate improperly.
Current
Current selection is more flexible.
The adapter’s current rating can be equal to or higher than the device requirement.
The device will only draw the current it needs.
For example:
Device requirement
12V / 3A
Suitable adapter options
12V / 3A
12V / 4A
12V / 5A
Using a high-efficiency switching power adapter with sufficient current margin improves reliability and reduces overheating.
AC and DC connectors for a power adapter
Choosing the correct AC input connector and DC output plug is also critical.
The connector must meet the following requirements:
- Correct size and mechanical fit
- Sufficient electrical capacity
- Safety compliance
- Reliable contact stability
For example, if the adapter output is 12V 5A, the DC plug must be rated for at least 5A current capacity.
The DC connector dimensions must also match precisely, including:
- Inner diameter
- Outer diameter
- Pin length
A mismatched connector may cause loose contact, unstable power supply, or overheating.
Conclusion
Choosing the right power adapter requires evaluating several factors, including:
- Device type and application
- Required safety certifications
- Output voltage and current
- Connector compatibility
- Adapter design and reliability
By carefully matching these specifications, you can select the ideal AC DC power adapter that ensures long-term stability and safe device operation.
