Power over Ethernet (PoE) adapters have become a critical component in modern network deployments. From IP surveillance cameras and wireless access points (APs) to a wide range of IoT devices, PoE adapters simplify installation, reduce wiring complexity, and improve system reliability.
What Is a POE Adapter?
A POE adapter (also called a PoE injector) is a device that adds electrical power to an Ethernet cable, allowing both data and power to be transmitted over a single cable to powered devices (PDs) such as IP cameras, wireless access points, VoIP phones, and IoT terminals.
Compared with traditional DC power supplies, POE adapters:
Eliminate separate power cabling
Enable centralized power management
Improve installation flexibility
Reduce overall deployment cost
How a POE Adapter Works

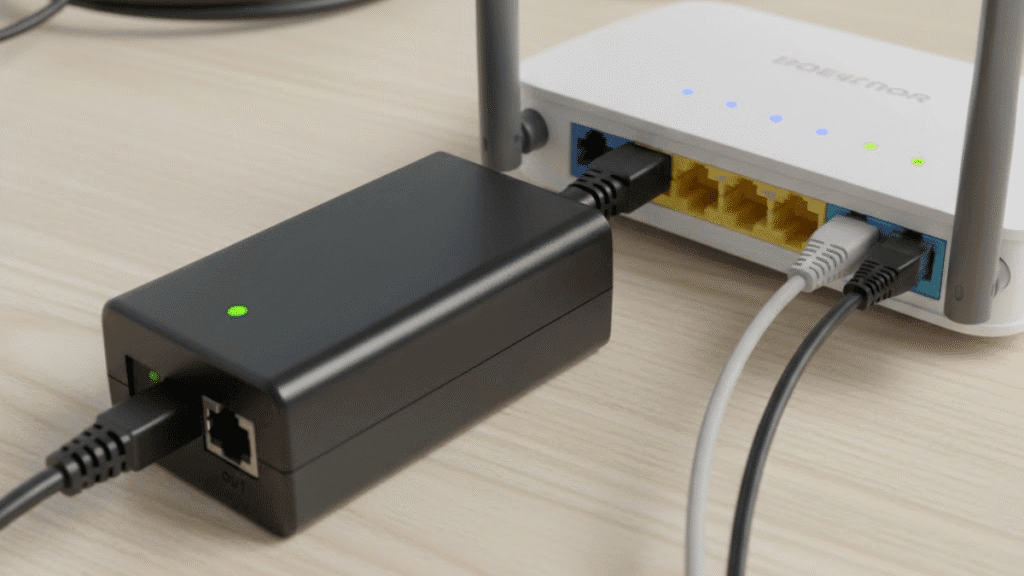

A POE adapter sits between a non POE network switch and a powered device.
Ethernet data flows from the switch to the adapter
The adapter injects DC power according to IEEE POE standards
Power and data are transmitted together to the device
This makes POE adapters ideal for retrofit projects or deployments where POE switches are not available or cost effective.
POE Adapter vs POE Switch: Which Should You Choose?
| Feature | POE Adapter | POE Switch |
| Initial cost | Lower | Higher |
| Flexibility | High (per device) | Fixed port count |
| Installation | Simple | Requires rack space |
| Scalability | Modular | Limited by switch size |
| Typical use | Small to medium deployments | Large enterprise networks |
Choose a POE adapter if:
You only need POE for a few devices
You want to upgrade an existing non POE network
You need flexibility for different power levels
POE Standards Explained: af, at, and bt
Understanding POE standards is the most important step when selecting a POE adapter.
IEEE 802.3af (PoE)
Max power: 15.4W (≈12.95W at device)
Typical devices: basic IP cameras, VoIP phones
IEEE 802.3at (PoE+)
Max power: 30W
Typical devices: PTZ cameras, dual band APs
IEEE 802.3bt (PoE++ / 4PPoE)
Max power: 60W / 90W
Typical devices: high power PTZ cameras, outdoor APs, industrial IoT
Buying tip: Always select a POE adapter with at least 20–30% power margin above your device’s rated consumption.
How to Choose the Right POE Adapter
1. Power Requirement
Check the powered device’s:
Rated power consumption (W)
Startup or peak power demand
For example:
Fixed IP camera: 8–12W → 802.3af
PTZ camera with heater: 25–40W → 802.3at / bt
2. Output Voltage Compatibility
Most standard POE adapters output 48–56V DC according to IEEE standards. Avoid non standard passive POE unless explicitly required, as it may damage devices.
3. Cable Length & Voltage Drop
Standard POE supports up to 100 meters of Ethernet cable
Longer cables increase resistance and voltage drop
If your deployment exceeds 80–90 meters or uses high power devices, choose:
Higher power POE adapters
Industrial grade models with stable regulation
4. Indoor vs Outdoor Environment
| Environment | Recommended POE Adapter |
| Office / indoor | Standard commercial POE adapter |
| Outdoor | Waterproof, surge protected POE adapter |
| Industrial | Wide temperature industrial POE adapter |
Outdoor and industrial environments require:
Surge and lightning protection
Extended temperature range
Robust housing design
5. Certifications & Compliance
A reliable POE adapter should comply with:
IEEE 802.3af / at / bt
UL / CE / FCC safety standards
EMC and electrical safety regulations
Certifications are especially critical for medical, industrial, and global projects.
POE Adapter for Common Applications
Key considerations:
Power margin for IR LEDs and heaters
Stable output to avoid video dropouts
Surge protection for outdoor cameras
Recommended: 802.3at or 802.3bt POE adapters for PTZ and outdoor cameras.
POE Adapter for Wireless Access Points (APs)
Modern Wi Fi 6 / Wi Fi 6E APs often require:
25–60W continuous power
Low ripple and noise
Choose PoE+ or PoE++ adapters with certified compliance.
POE Adapter for IoT Devices
IoT deployments prioritize:
Long term 24/7 reliability
Low heat generation
Compact design
Industrial grade POE adapters are recommended for smart cities, factories, and transportation systems.
Cost Comparison: POE Adapter vs DC Power Supply
| Item | POE Adapter | DC Power Supply |
| Cabling | Single Ethernet cable | Ethernet + power cable |
| Installation cost | Lower | Higher |
| Centralized power | Yes | No |
| Scalability | High | Limited |
Although POE adapters may cost more per unit, they reduce overall system cost by simplifying installation and maintenance.
Why Choose Quankang POE Adapters?
Quankang designs and manufactures reliable POE power solutions for professional applications.
Key advantages:
Full IEEE 802.3 compliance
Industrial grade components
Stable output for 24/7 operation
Wide temperature and surge protected options
OEM customization available
Quankang POE adapters are widely used in security surveillance, wireless networks, and industrial IoT projects.
Frequently Asked Questions (FAQ)
Q1: Can I use one POE adapter for multiple devices?
No. Standard POE adapters power one device per port.
Q2: Is passive POE safe?
Passive POE is not IEEE standard and may damage devices unless specifically designed for it.
Q3: How long can a POE adapter run continuously?
High quality POE adapters are designed for 24/7 continuous operation with proper thermal design.
Final Thoughts
Choosing the right POE adapter is not just about wattage—it requires careful consideration of standards, environment, cable length, and long term reliability.
For IP cameras, APs, and IoT devices, a certified, industrial grade POE adapter ensures stable operation, reduces downtime, and protects your investment.
If you are planning a professional deployment or OEM project, selecting a trusted POE adapter manufacturer like Quankang can significantly reduce technical and operational risks.
