ITE Power Adapter UEL060LCP-SPA
Home ite-external-power-adapter ITE Power Adapter UEL060LCP-SPA ITE Power Adapter UEL060LCP-SPA 48V 60W LED Driver Power Supply External Switching Wall Mount Power Adapter Wide range of
18 W
90~ 264 Vac input
0°C to +40°C temperature range
No-load power consumption < 0.1W
Meets Energy efficiency level VI
With different construction for different countries
Meets 6KV surge immunity
The UES18LZ1-SPA series is an 18W AC to DC wall plug ITE switching power supply, delivering regulated 24V output through a fixed AC pin. Certified to the latest 62368 safety standards, it is suitable for all types of low-power ITE applications, ensuring compliance and reliable operation.
Featuring a compact form factor, Level VI energy efficiency (DoE Level VI and CoC Tier 2), and an optimized construction, this AC-DC power supply is designed for energy-saving performance and long-term durability. It reflects a commitment to providing customers with efficient, eco-friendly, and high-performance power solutions utilizing the latest green power technology.

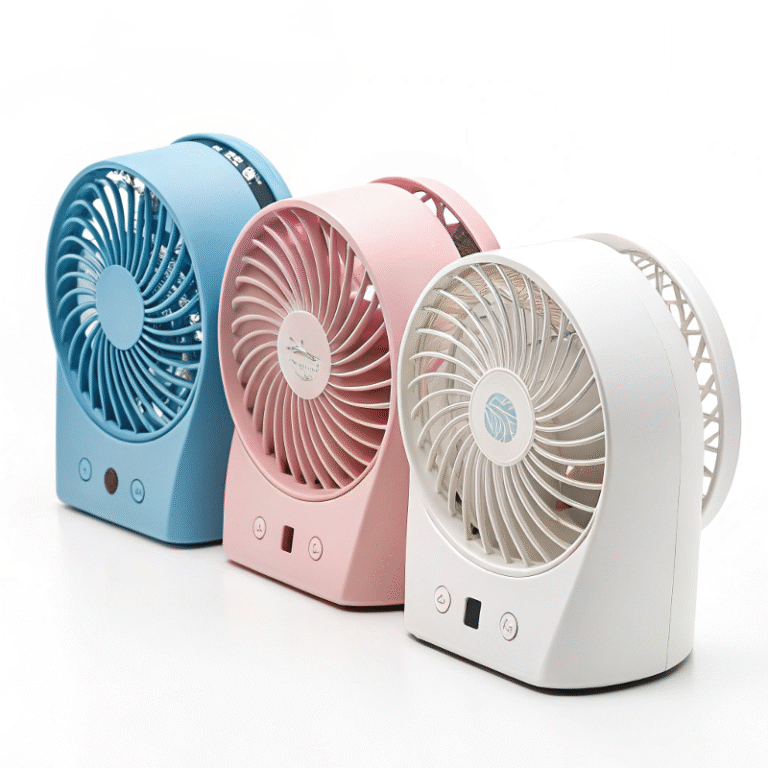

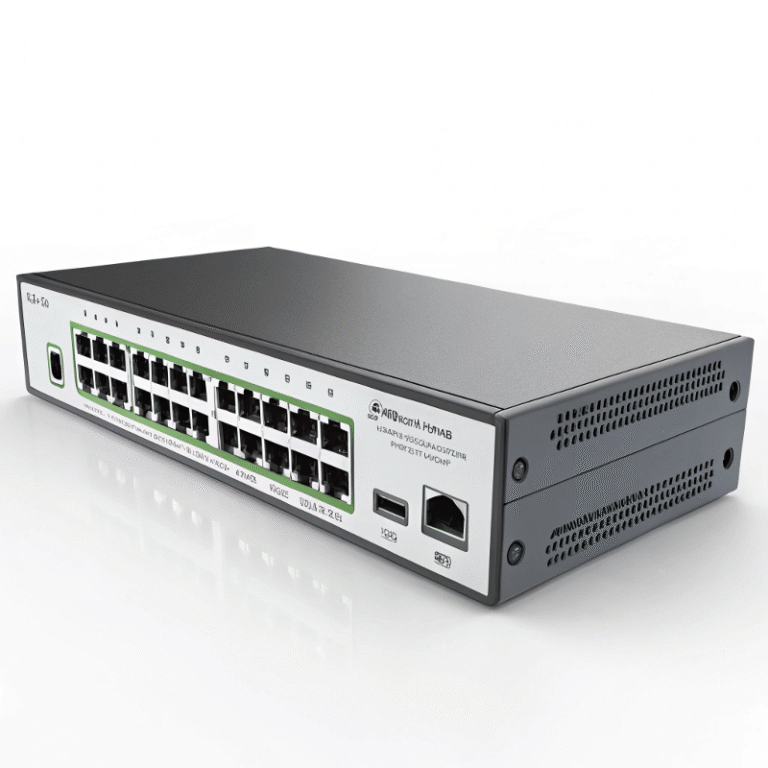

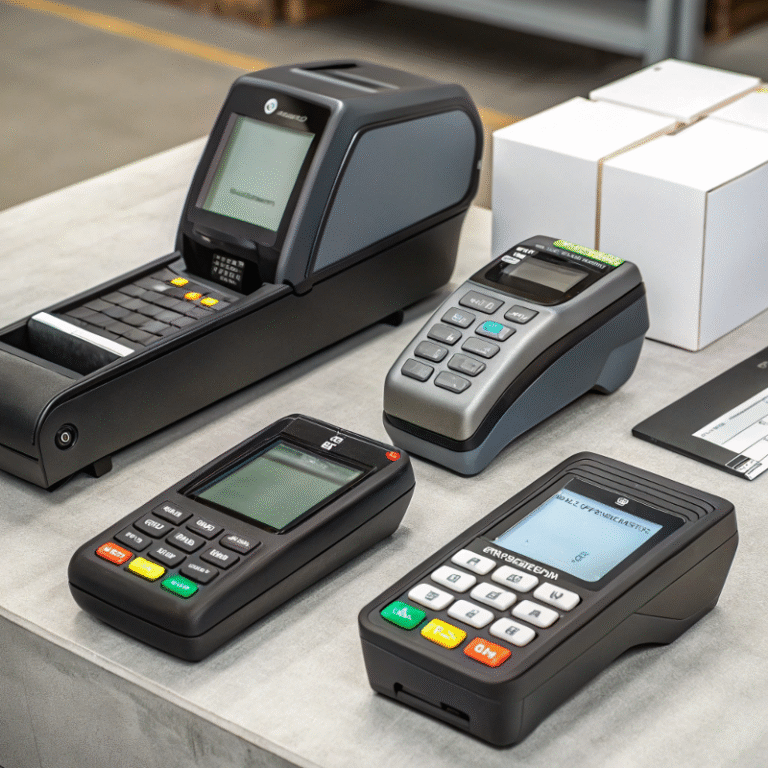

These power supplies are widely used for Wi-Fi routers, small network switches, IP security cameras, mini desktop fans, LED strips or controllers, active speakers, barcode scanners, indoor networking devices, and IoT applications. The UES18LZ1-SPA series provides a cost-effective, reliable, and versatile wall plug power solution suitable for OEM integration, replacement adapters, and diverse low-power ITE devices.
Safety Standards – 62368
Safety Approvals – CE/UL/cUL/BSMI/NOM/PSE/KC/RCM/CB
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES18LZ1-SPA | 18.0 | 90-264 | 24.0 | 0.01-0.75 | 0~+40 | CE |
UE18LZ1 is a compact ITE power adapter for Wi-Fi routers, small network switches, LED strips and controllers, mini desktop fans, active speakers, barcode scanners, and other low-power indoor ITE devices that require stable regulated 12VDC output for networking and IoT applications.
Any 24V device that draws up to 0.01-0.75A, such as cameras, routers, LED lights, or small embedded systems.
Yes, it can power up to 18W worth of 24V LED strips. Ensure the total wattage of your LED strip does not exceed the adapter’s capacity.
Yes. It is designed for long-term, stable performance as long as it operates within its rated specifications and has adequate airflow.
It includes over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and thermal protection.
Yes. It accepts 100–240V AC input (50/60Hz), suitable for global use with the correct plug type.
The standard output connector is a 5.5mm x 2.1mm DC barrel plug, but this can be customized to match your device.
Most ITE power adapters comply with UL, CE, FCC, RoHS, and energy efficiency standards such as DOE Level VI or ErP.
Not directly. It can supply power to a battery charging circuit, but it is not a dedicated battery charger with CC/CV control.
ITE stands for Information Technology Equipment, which means the adapter is designed and certified for devices like routers, modems, and embedded systems.
Yes. It provides regulated 12V DC output with low ripple and noise, making it safe for sensitive electronic devices.
