Why 5V DC is Widely Used
5V DC power supplies have become one of the most universal voltage standards in electronics. This dominant position stems from the dual drivers of “historical legacy” and “interface standardization”: First, early integrated circuits (such as the 74-series TTL logic chips) established 5V as the operating voltage. Second, the widespread adoption of the USB protocol has made 5V adapters ubiquitous across the globe. The USB specification itself standardizes a 5V DC output, making it convenient for powering and charging a variety of devices. This compatibility with USB adapters, power banks, wall chargers, and microcontroller boards has helped establish 5V as a ubiquitous reference voltage in both hobbyist and commercial electronics.
Because 5V DC is a well-supported, regulated voltage, designers can select inexpensive adapters or modules to reliably power complex systems without needing expensive custom power solutions. For example, USB ports typically output 5V/500mA to 5V/3A, capable of powering small LED strips, sensor modules, and low-power microcontrollers.

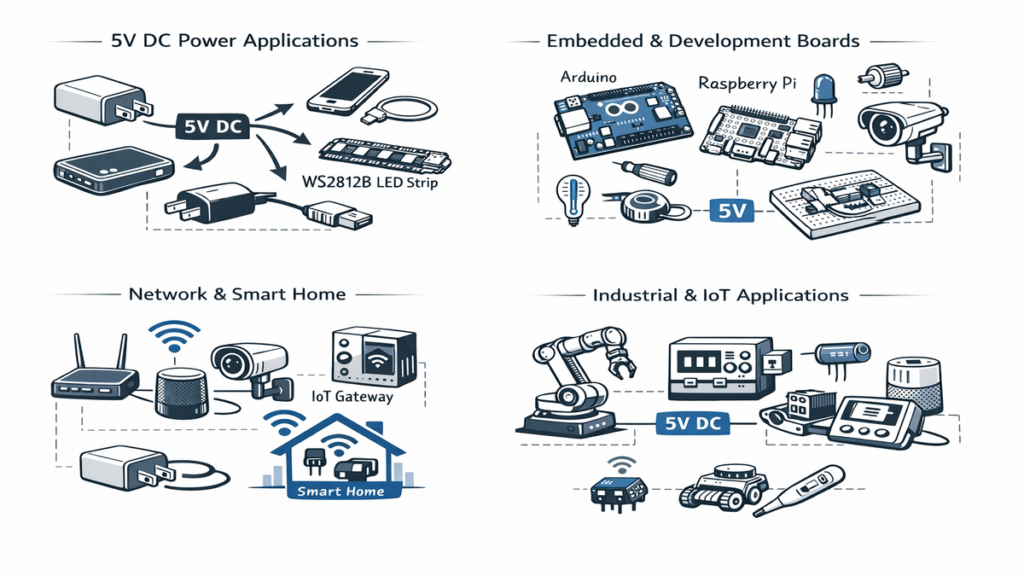

Consumer Electronics
5V DC power supplies are widely used in everyday consumer electronics thanks to the USB ecosystem and the prevalence of portable gadgets:
Mobile devices and tablets: Most smartphones, tablets, portable speakers, and handheld game consoles use 5V chargers or USB power adapters to charge their internal batteries. Notably, even in the era of USB-C PD
—which supports high-power fast charging—5V remains the “baseline voltage” for handshake negotiations between devices, ensuring the widest possible backward compatibility.
Accessories and peripherals: Bluetooth headsets, fitness trackers, smartwatches, and headphone amplifiers commonly accept 5V DC inputs from USB chargers.
LED lighting systems: Many LED strips, bulbs, and decorative lighting modules are designed to operate at 5V DC, making them easy to power with wall adapters or USB sources. For instance, the typical voltage of a WS2812B LED strip is 5V, and the current of a single LED bead is approximately 60mA.
Consumer devices benefit from the simplicity and safety of 5V DC power, which minimizes the risk of electrical shocks and simplifies charger design.
Embedded & Microcontroller Systems
The 5V standard is deeply entrenched in embedded systems and educational electronics:
Arduino, Raspberry Pi, and similar boards: Many popular development platforms run on or accept 5V DC power, which simplifies system design and encourages rapid prototyping for hobbyists and professionals alike. For example, the Raspberry Pi 4 officially recommends a 5V/3A power adapter to ensure stable operation.
Sensors, modules, and peripherals: Temperature sensors, light sensors, motor drivers, and communication modules often accept 5V inputs, making them ideal for modular systems.
Breadboards & prototyping: In education and lab environments, 5V PCBs and breadboard projects allow students and engineers to build and test circuits safely, learning fundamental principles of electronics.
Embedded systems often rely on regulated 5V DC because many microcontroller architectures (such as those built on 8-bit or 32-bit cores) are optimized for this supply voltage.
Networking & Smart Home Devices
5V power supplies are also prevalent in networking gear and smart home electronics:
Routers, modems, and network switches: Many small-form-factor networking devices use 5V DC adapters to power processors, wireless modules, and Ethernet interfaces.
Smart cameras and IoT gateways: Home security cameras, sensor hubs, and smart controllers often operate on 5V DC to facilitate simple USB-based power solutions. For example, low-power smart cameras often use 5V DC power supply solutions.
Bluetooth modules and peripherals: Devices such as wireless audio transceivers and smart lighting controllers accept 5V DC inputs from USB or dedicated adapters. Compared to 12V power supplies, 5V DC is safer and directly compatible with USB power, thereby reducing the number of voltage converters required.
The prevalence of 5V in networking and smart home designs stems from the desire to unify power sources and minimize the need for multiple voltage regulators in a single installation.
Industrial & IoT Applications
Beyond consumer and embedded use, 5V DC supplies play a significant role in industrial and Internet of Things (IoT) environments:
Low-power modules: Many IoT sensor nodes, wireless telemetry boards, and automation controllers operate at 5V DC for consistency and easy integration with USB-based power infrastructure.
Robotics & automation: Small DC motors, relays, and control circuits in automation systems frequently rely on stable 5V supplies to ensure predictable operation.
Medical & laboratory equipment: Portable and bench-top instruments such as electronic thermometers, portable measuring devices, and educational lab gear often integrate 5V supplies to simplify design and meet safety expectations. For example, the 5V DC power supply solution for portable blood glucose meter.
In IoT and industrial contexts, the 5V DC power supply is highly favored because it can be directly converted from the AC power grid through an AC-DC power module, providing reliable low-voltage DC power supply for various devices.
Conclusion: Benefits of 5V DC Design
In summary, 5V DC power supplies are essential to modern electronics due to:
Standardization: Widespread support through USB and embedded platforms makes 5V a de-facto universal standard.
Broad compatibility: 5V supports a wide range of consumer gadgets, embedded systems, networking gear, and IoT devices.
Ease of use: 5V DC power supplies are easy to deploy, safe to handle, and compatible with low-power circuits across diverse applications. For instance, 5V DC is widely used in devices such as Arduino, Raspberry Pi, and smart lighting control modules, with typical currents ranging from tens milliamperes to 3A.
Whether powering everyday devices or enabling advanced IoT systems, 5V DC supplies remain a cornerstone of reliable and flexible electronics design.
