In the technical documentation for most medical power supplies, medical equipment, and even home health devices, 2xMOPP is frequently mentioned.Today I’ll show you why it is so significant in the medical field.
The definition of MOPP, 1xMOPP and 2xMOPP
In the practical use of medical adapters and devices, insulation is an extremely important indicator, as it determines whether patients and doctors can directly touch the medical equipment itself. MOPP(Means of Patient Protection) is used to describe independent protective measures within a device that are designed to prevent patients from receiving electric shocks under the IEC 60601-1 standard.

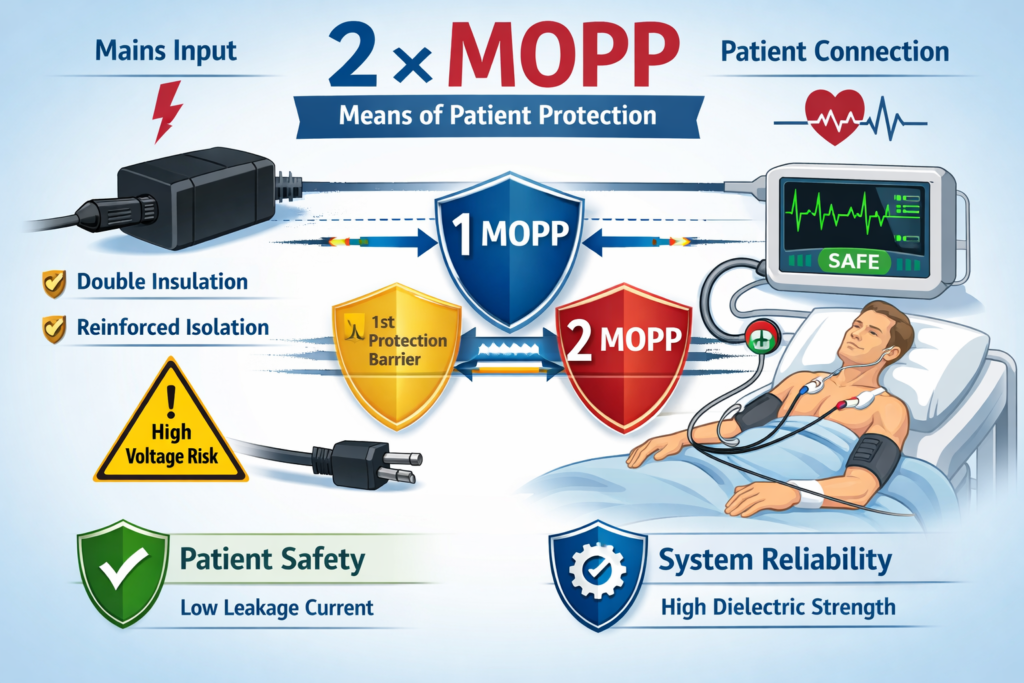

Accordingly,2xMOPP is 2 Means of Patient Protection.It builds upon the 1 MOPP standard by adding a complete set of equivalent and independent protection mechanisms. The key is not simply “being thicker” or “having a greater distance,” but rather that “even if the first layer of protection completely fails, the second layer can still independently meet the patient’s protection requirements.” Therefore, 2 MOPP typically means greater creepage distance, higher voltage withstand test ratings, stricter structural isolation, and significant upgrades in transformers, isolation barriers, and material selection.
If a medical device or home-health care device does not have MOPP, then it will not be allowed to sell in most of the countries.For some medical equipment like medical monitors, nursing station terminals,these devices will not be in direct contact with the patient,so 1xMOPP for them is enough. But if your device must be in direct contact with the patients,like an electrocardiogram (ECG) device,blood glucose meters and home ventilators,2xMOPP is a must.
Implementing the practical requirements of 2x MOPP in medical power adapters.
Achieving 2xMOPP in medical power supplies needs numerous design-level optimizations.
First, in terms of transformer design, it requires two completely independent layers of physical insulation or double shielding between the primary and secondary windings. This is like building two independent “firewalls” between the power supply and the patient. Even if one layer is accidentally damaged, the other layer can still independently block the high voltage, ensuring current insulation.
Secondly, there are strict requirements for spatial distance. To prevent arcing caused by moisture or dust accumulation, the spacing and creepage distance between components on the circuit board must typically be at least 8mm. This cannot be achieved with simple insulating paint; sufficient “safety clearance” must be provided in the physical layout.
Furthermore, 2 MOPP (Means of Patient Protection) must pass extremely high-voltage withstand tests (usually AC 4000V). This not only tests instantaneous voltage resistance but also verifies that the insulating material will not age and fail under long-term high-temperature conditions. Finally, there is extremely low leakage current control, requiring the weak current flowing to the patient to be controlled within 100µA. This is much stricter than for ordinary household appliances, preventing even tiny currents from posing an electric shock risk to weakened patients.
Understanding the Significance of 2 MOPP in Medical Design and Procurement
Beyond technical specifications, 2 x MOPP carries critical implications for both medical device design and procurement decisions. For engineers, 2 MOPP is not merely a compliance checkbox; it defines how devices are structured, the materials chosen, and the level of redundancy required to protect patients. It encourages a mindset where patient safety is built in from the earliest design stage rather than retrofitted.
For procurement teams and hospital decision-makers, knowing that a device supports 2 MOPP provides confidence that the product meets rigorous IEC 60601-1 medical safety standards. Devices with 2 MOPP reduce liability risk, minimize potential recalls, and ensure reliable operation even in challenging environments, which is especially important for home healthcare, ICU, and long-term monitoring equipment.
Conclusion
For medical device manufacturers, choosing a medical power supply with 2 MOPP is a practical way to reduce regulatory risk, simplify IEC 60601-1 compliance, and avoid redesigns during certification. For hospitals and OEM buyers, it provides confidence that patient-connected equipment remains safe under long-term use, environmental stress, and single-fault conditions.
Ultimately, 2 MOPP is not an abstract requirement—it directly supports patient protection, device reliability, and trust in medical technology. When patient safety is the priority, understanding and applying 2 MOPP correctly becomes a necessary foundation rather than an optional upgrade.
