Introduction
When designing a medical power adapter, safety is never optional.
A device can be efficient, compact, and powerful—but if it fails in safety, it cannot be used in any medical environment.
Electric shock, leakage current, and insulation failure are not theoretical risks. In medical applications, they directly relate to patient safety.
So the real question is not just how a power supply works, but how it protects.
What Are Medical Power Safety Standards?
Safety standards exist to reduce hazards in electrical systems.
These hazards include electric shock, fire, overheating, mechanical risks, and even chemical or radiation exposure.
For power supplies, the most critical concern is preventing dangerous current from reaching the human body.

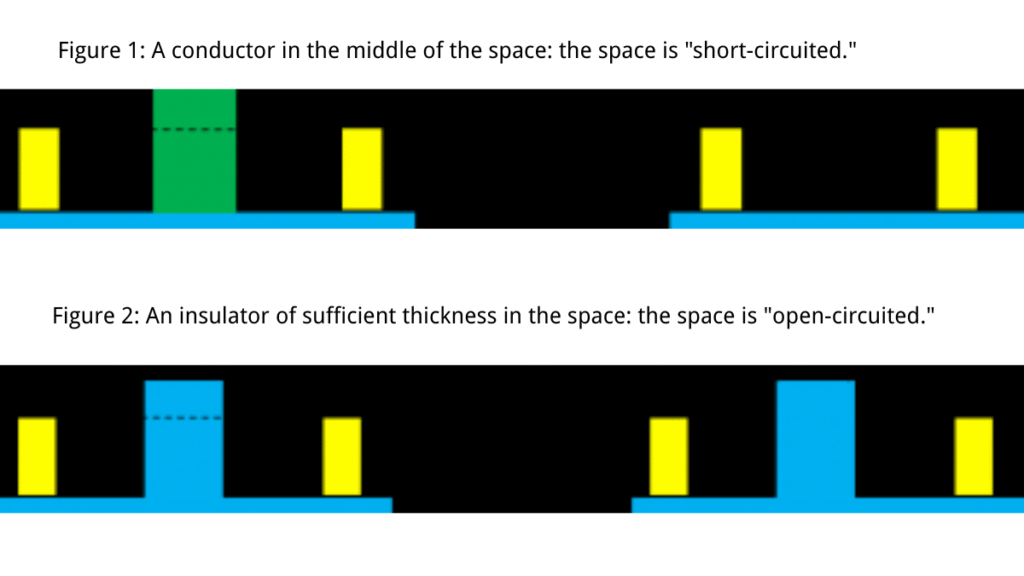

Figure 1: A conductor in the middle of the space: the space is “short-circuited.”
Figure 2: An insulator of sufficient thickness in the space: the space is “open-circuited.”
Then let’s look at creepage distance.
Creepage distance is defined as the shortest distance along the surface of an insulator with uniform electrical properties between two conductors (or between a conductor and a protective surface).

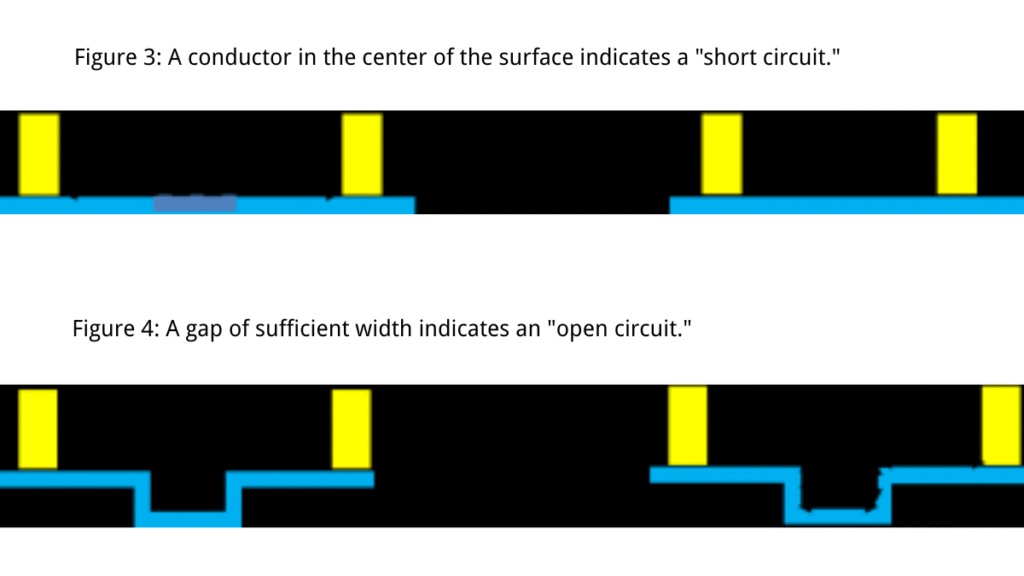

Figure 3: A conductor in the center of the surface indicates a “short circuit.”
Figure 4: A gap of sufficient width indicates an “open circuit.”
There are two main types of standards:
- General standards define basic safety principles.
- Product standards apply stricter rules to specific applications.
For example, IEC 60664-1 insulation coordination standard provides general rules for low-voltage systems.
Based on this, medical devices must comply with IEC 60601-1 medical electrical safety standard, which introduces much stricter requirements for insulation, leakage current, and protection levels.
Why Insulation Is Critical in Medical Power Supplies
In medical power design, insulation is the first line of defense against electric shock.
Protection is achieved through two main methods:
Grounding
Insulation
In many medical devices, insulation plays a dominant role because equipment may operate without a direct ground connection.
Insulation creates a physical barrier between hazardous voltage and accessible parts.
This barrier must remain reliable even under harsh conditions such as humidity, temperature variation, and long-term operation.
Common insulation materials include glass, ceramics, plastics, and resins. These materials must maintain electrical strength after environmental stress testing.
How Clearance and Creepage Ensure Safety
Two key design parameters define insulation effectiveness: clearance and creepage distance.
Clearance is the shortest distance through air between two conductive parts.
Creepage is the shortest path along the surface of an insulating material between those same parts.
Both distances are critical because electricity can travel through air or along surfaces under high voltage conditions.
If these distances are too small, the risk of breakdown increases significantly.
Why Medical Standards Are Much Stricter
Compared to industrial equipment, medical devices require much higher safety margins.
For example, under IEC 60601-1, a common requirement is 2×MOPP (Means of Patient Protection).
In this case, creepage and clearance distances typically need to exceed 8 mm.
In contrast, industrial equipment often requires only 1×MOOP (Means of Operator Protection), where distances around 2.5 mm may be sufficient.
The reason is simple.
Many medical devices directly contact the human body or even internal tissues.
This makes the tolerance for electrical risk extremely low.
How Double Insulation Protects Patients
Double insulation or reinforced insulation is a core concept in medical power supply design.
Even without grounding, this structure ensures that electrical current cannot reach the user.
It also plays a critical role in controlling leakage current.
In medical applications, leakage current limits are extremely strict—often only a few tens of microamperes.
This is especially important for devices connected to the heart or nervous system, such as ECG monitors or infusion pumps.
Even under high humidity or continuous operation, the insulation system must maintain safe limits.
From Insulation Design to Reliable Power Solutions
Insulation is not just a design requirement—it is the foundation of reliability in medical electronics.
A well-designed insulation system ensures stable operation, protects patients, and guarantees compliance with safety standards.
At Quankang, every medical power adapter is designed to meet 2×MOPP requirements. Each unit undergoes strict insulation and safety testing to ensure consistent performance in real-world conditions.
If you are designing medical equipment and need a power solution that meets strict safety and insulation standards, you can explore our medical power solutions or contact us to discuss your application requirements.
Conclusion
Safety in medical power supplies is defined by standards, but achieved through design.
From insulation materials to creepage distance, every detail contributes to protecting the patient.
Choosing the right medical power supply is not just about performance—it is about ensuring that every device operates safely, reliably, and without risk.
