Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Home Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP 48Vdc 2A open frame power supply
65 W
90~ 264 Vac input
-30°C to +50°C temperature range
No-load power consumption < 0.15W
2 MOPP input-to-output isolation

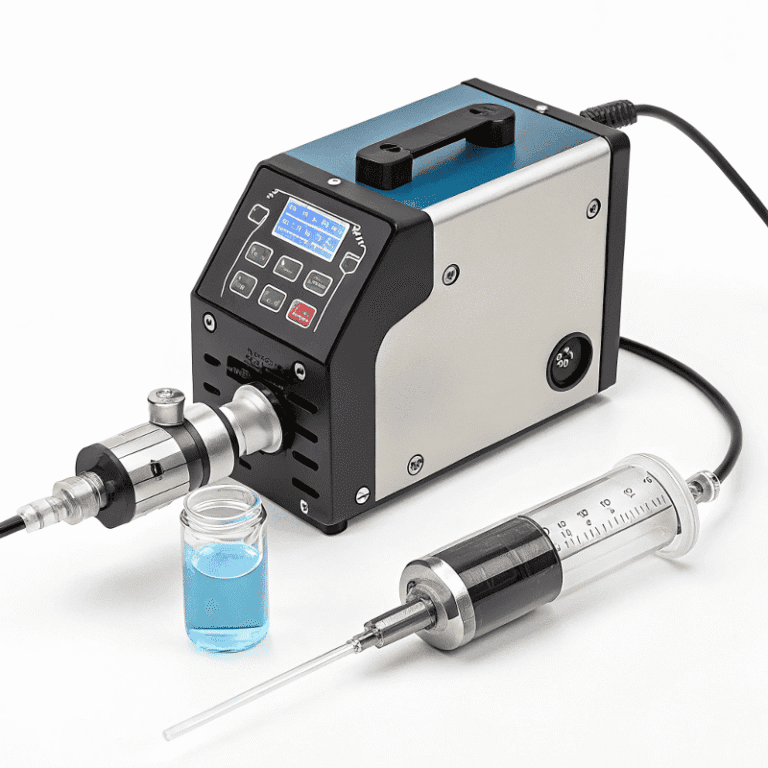

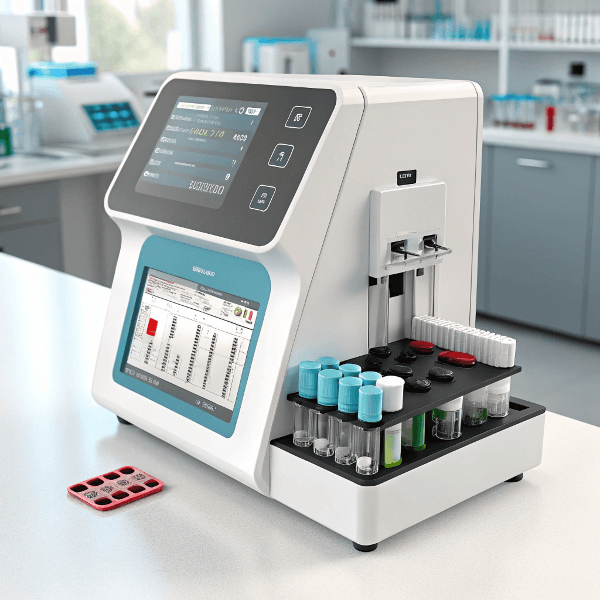

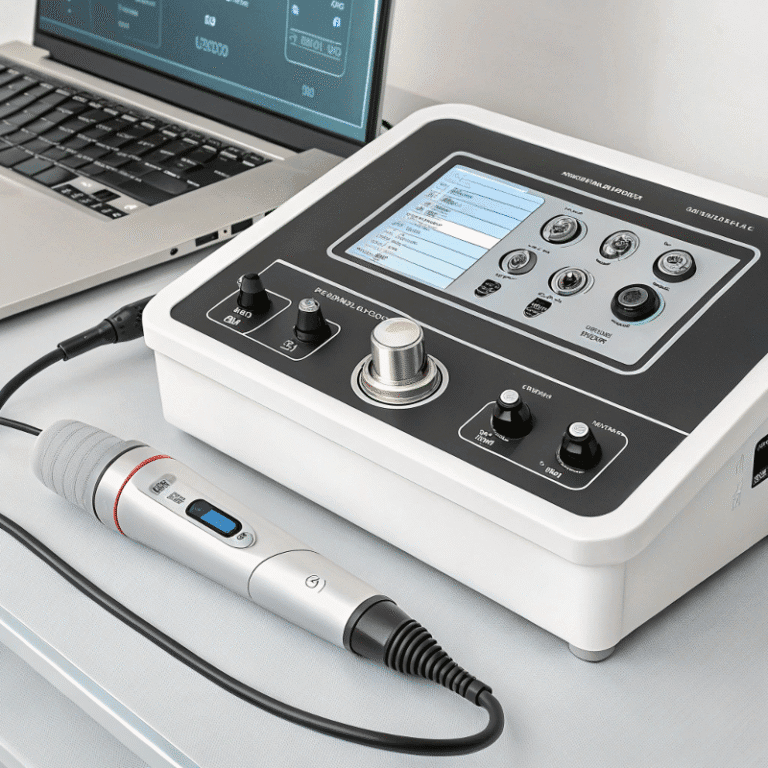

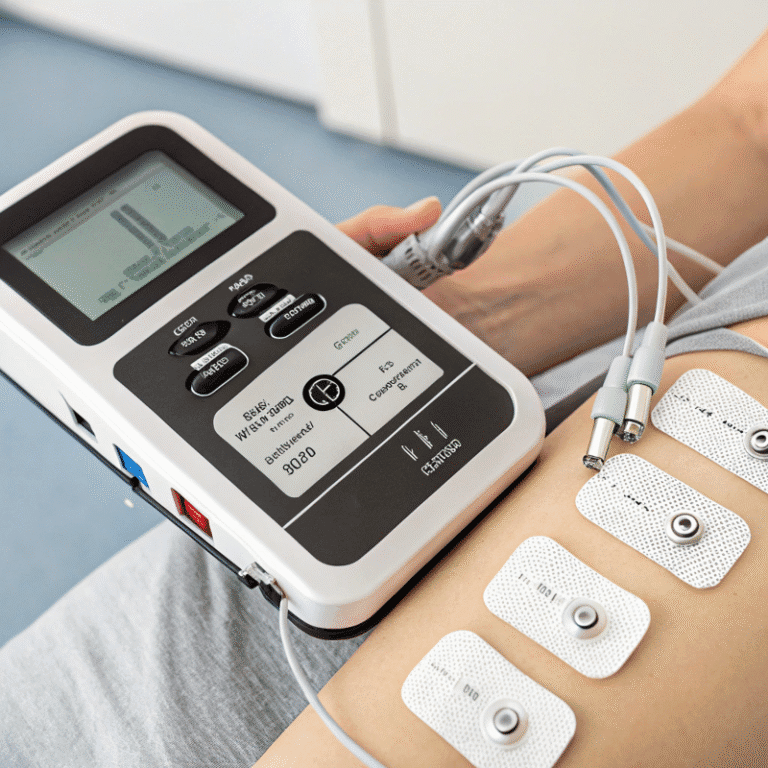

Application place: blood analyzer, small electric injection pump, TENS electrotherapy device, ultrasonic therapy equipment, medical display screen, electric massage equipment

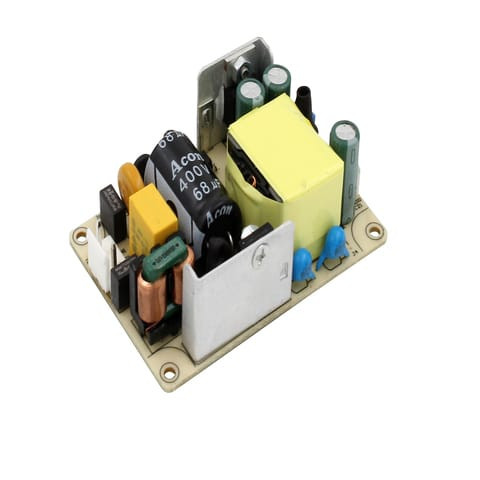

The UES65-XXXYYYSPA5-OP is a 65W single-output switching open frame power supply AC to DC converter in a compact board mount package, designed for home healthcare applications. It offers multiple output options, including 5V, 12V, 24V, and 36V, among other voltages (coming with a universal input of 80~264VAC), to cater to various medical devices. The series is designed for various medical products and is certified to the IEC 60601-1 3rd edition standard for 2 x MOPP applications. Featuring a no-load power draw of less than 0.15W and an efficiency of up to 91%, it suits blood analyzer, small electric injection pump, TENS electrotherapy device, ultrasonic therapy equipment, medical display screen, electric massage equipment
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CB,NRTL,TUV-Mark,UL
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Efficiency Standards |
|---|---|---|---|---|---|---|
| UES65-XXXYYYSPA5-OP | 50.0 | 90-264 | 5.0 | 0.01-10.00 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 51.0 | 90-264 | 5.1-6.0 | 0.01-8.50 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 60.0 | 90-264 | 6.1-7.5 | 0.01-8.00 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 60.0 | 90-264 | 7.6-8.0 | 0.01-7.50 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 60.0 | 90-264 | 8.1-9.0 | 0.01-6.66 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 60.0 | 90-264 | 9.1-10.0 | 0.01-6.00 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 10.1-11.0 | 0.01-5.50 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 11.1-12.0 | 0.01-5.42 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 12.1-13.0 | 0.01-5.00 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 13.1-14.0 | 0.01-4.64 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 14.1-15.0 | 0.01-4.33 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 15.1-16.0 | 0.01-4.06 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 16.1-17.0 | 0.01-3.82 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 17.1-18.0 | 0.01-3.61 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 18.1-19.0 | 0.01-3.42 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 19.1-20.0 | 0.01-3.25 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 20.1-21.0 | 0.01-3.09 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 21.1-22.0 | 0.01-2.95 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 22.1-23.0 | 0.01-2.82 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 23.1-24.0 | 0.01-2.70 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 24.1-27.0 | 0.01-2.40 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 27.1-30.0 | 0.01-2.16 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 30.1-33.0 | 0.01-1.96 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 33.1-36.0 | 0.01-1.80 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 36.1-39.0 | 0.01-1.66 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 39.1-42.0 | 0.01-1.54 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 42.1-45.0 | 0.01-1.44 | -30~+50 | CE, UL/cUL,TUV |
| UES65-XXXYYYSPA5-OP | 65.0 | 90-264 | 45.1-48.0 | 0.01-1.35 | -30~+50 | CE, UL/cUL,TUV |
Multi-parameter monitors, portable ultrasound devices, electric beds, infusion pumps, and lab automation equipment.
To accommodate a variety of medical devices with different voltage requirements in one power supply.
Yes, it powers portable blood glucose meters, ultrasound machines, and small imaging processors.
Yes, it supports motors and control systems in these devices.
It complies with IEC 60601-1 and relevant EMC standards.
Over-voltage, over-current, short-circuit, and thermal protections ensure device and user safety.
Yes, it supports electrotherapy and physiotherapy equipment.
Yes, it powers centrifuges, reagent dispensers, and sample processors.
Yes, it supports medical LED lighting and monitor power modules.
Yes, it ensures stable output for long-term use with proper cooling.
Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Home Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP Medical Open Frame Power Supply UES250-XXXYYYSPAZ-OP 48Vdc 2A open frame power supply
One stop power supply solution Power Supply Solution for Facial Beauty Devices Reliable, low-noise power adapters designed for beauty and skincare technologies Quankang delivers specialized
One stop power supply solution Power Supply Solution for Wearable Health Monitors Compact, safe, and efficient power adapters tailored for next-generation health tracking Quankang delivers
In the process of AC-DC power supply, smaller and higher power density development, the thermal design becomes a cord problem affecting the product’s reliability and
The medical power supply of electric medical systems must strictly meet a lot of requirements and regulations in safety, reliability, and compliance under practice. But

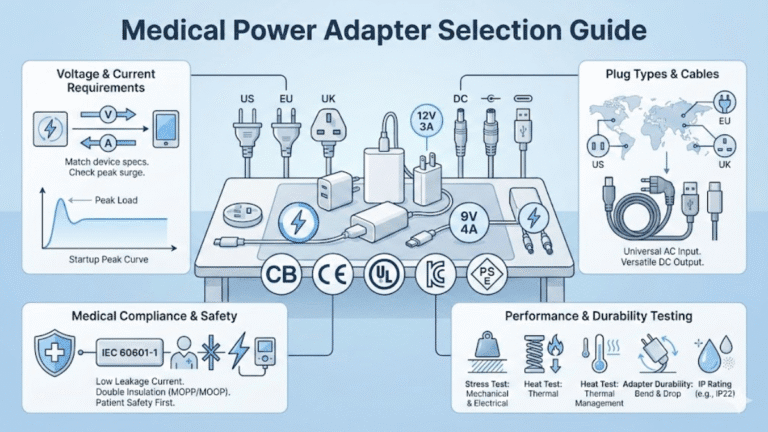

Hi engineers， sometimes it will be tough for people like us to choose a power adapter that could perfectly fit our products. There are always
