Medical Power Supply UES100B-SPCZ
Home Medical Power Supply UES100B-SPCZ/UES100C-SPCZ Desktop homecare 15v 20v switching AC DC power supply Medical&l.T.E.safety approvals 2 MOPP input to output isolation Leakage currents ≤100uA
90W
80-264VAC
Meets medical & I.T.E. safety
Leakage current ≤100μA
DOE level VI
≤ 0.21W standby power
11V to 54V outputs, up to 140W
Up to 5,000m operating altitude
4 types of AC inlet

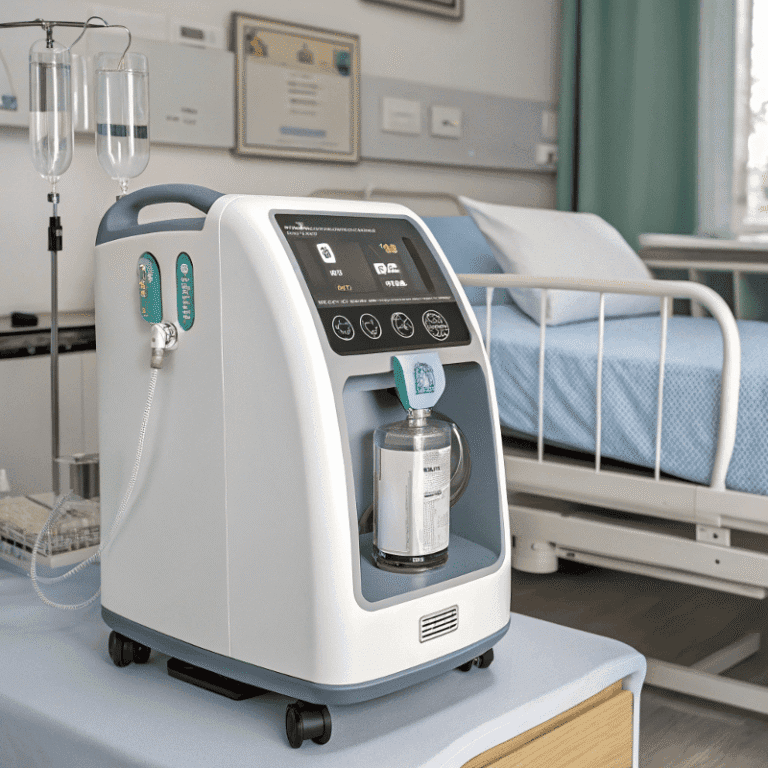

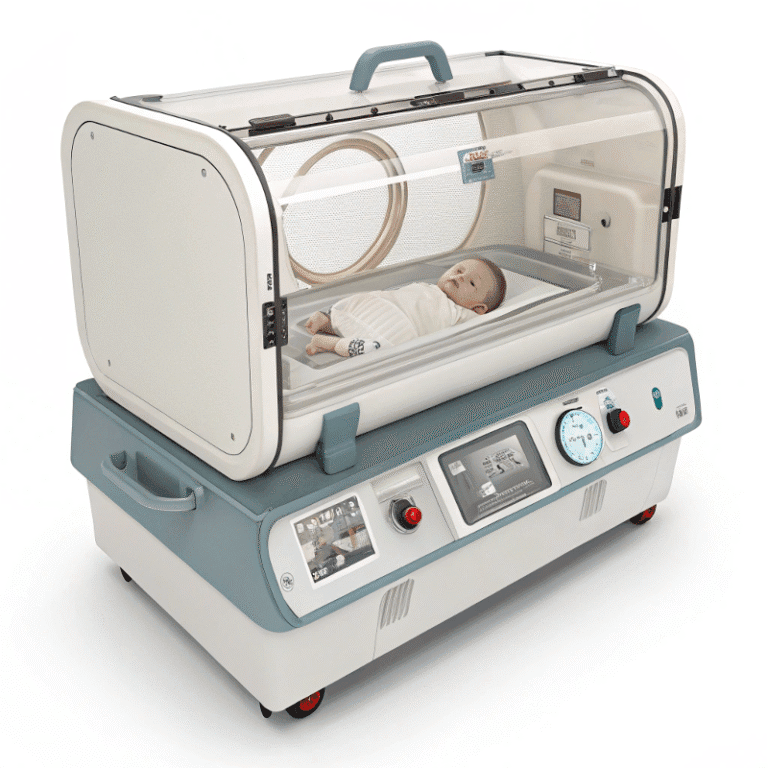

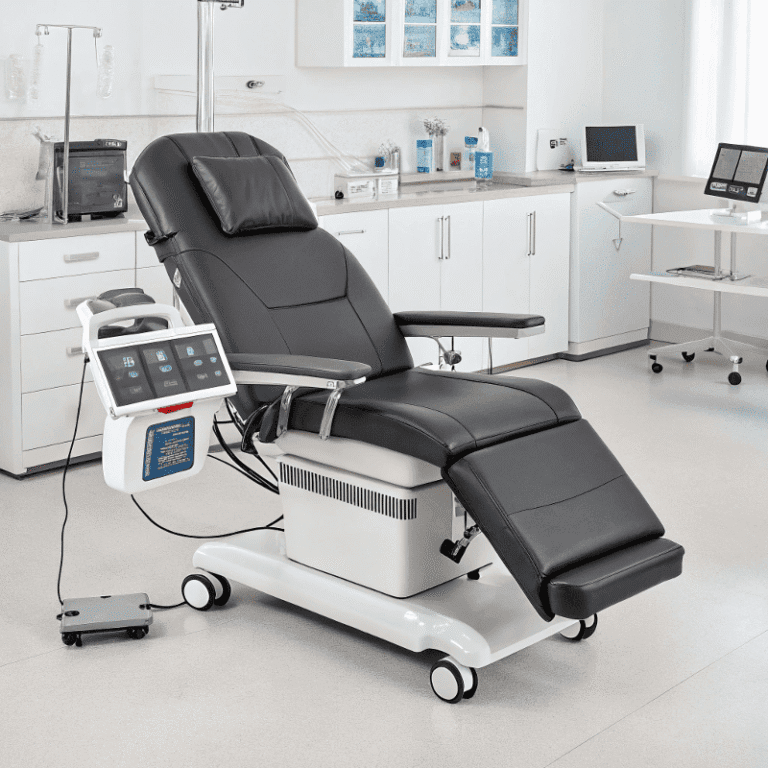

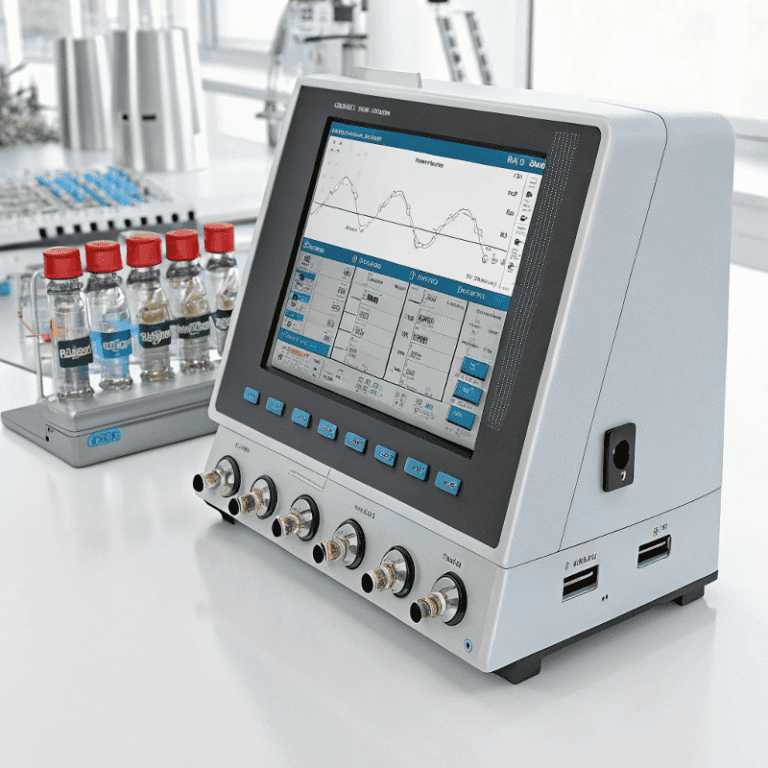

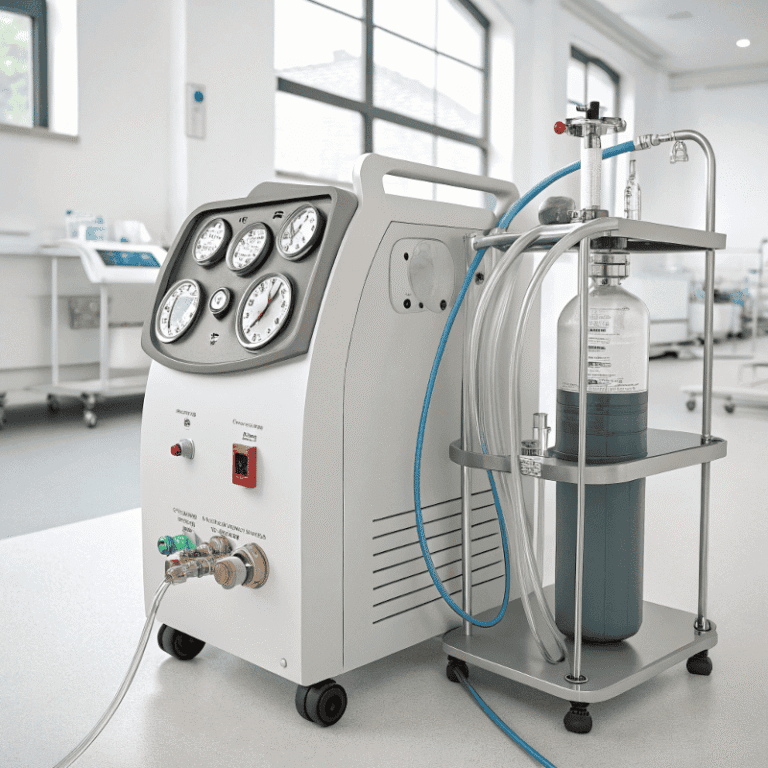

Application place: oxygen concentrator, electric treatment chair, infant incubator, electrochemical analyzer, laser therapy device, medical air compressor
Safety Standards – IEC60601,EN60601,UL60601
Safety Approvals – CE, CB ,TUV-Mark ,UL
| Model Number | Power(W) | Input Voltage Range(VDC) | Output Voltage(VDC) | Output Current(A) | Operating Temperature Range(℃) | Safety Standards |
|---|---|---|---|---|---|---|
| UES90C-SPAZ | 77.0 | 80-264 | 11.0 | 0.01-7.00 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 84.0 | 80-264 | 12.0 | 0.01-7.00 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 15.0 | 0.01-6.00 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 17.0 | 0.01-5.29 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 19.0 | 0.01-4.74 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 22.0 | 0.01-4.09 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 24.0 | 0.01-3.75 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 26.0 | 0.01-3.46 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 30.0 | 0.01-3.00 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 33.0 | 0.01-2.73 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 36.0 | 0.01-2.50 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 39.0 | 0.01-2.31 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 43.0 | 0.01-2.09 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 46.0 | 0.01-1.95 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 48.0 | 0.01-1.88 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 52.0 | 0.01-1.73 | 0 ~ +40 | CB, CCC, CE, NRTL |
| UES90C-SPAZ | 90.0 | 80-264 | 54.0 | 0.01-1.67 | 0 ~ +40 | CB, CCC, CE, NRTL |
It supports a wide output range from 11V to 54V.
The adapter delivers up to 90 watts of continuous power.
It's ideal for ultrasound systems, CPAP/BiPAP machines, centrifuges, infusion devices, and medical imaging units.
Yes, it can be built to meet IEC 60601-1 and other medical safety standards.
Yes, it supports up to 54V for devices like laser therapy systems and medical carts.
Absolutely. It includes protections for over-voltage, over-current, short-circuit, and overheating.
Yes, it features a fanless design for silent and reliable operation.
Yes, its compact and external design makes it ideal for portable equipment.
Yes, it accepts 100–240V AC input, suitable for global use.
Yes, we provide multiple DC connectors and cable customizations.
